The Compact Analog CAN Converter
ACC3 manages up to 4 analog inputs to a max frequency of 1000 Hz each:
- Thermocouples
- Thermoresistances
- 0÷5 V
- 0÷12 V
Digital Speed Inputs
ACC3 manages 2 speed inputs at a maximum frequency of 10 kHz.
SENSORS CONNECTIONS
Split Harnesses
ACC3 can manage many different sensors, from thermocouples to sensors whose output is 0÷12V.
Please, note that the thermocouples require dedicated compensated cables, so different kits and different harnesses are available.
CHANNEL CONFIGURATION
Once the proper split harness has been chosen between the available range, you can configure the channels according to the kind of sensor you connect to the converter.
ACC3 support up to four K type thermocouples to manage the temperatures.
System Configuration example
SUSPENSION ANALYSIS
ACC3 and ACC3 Open can be connected to Eclipse sensors.

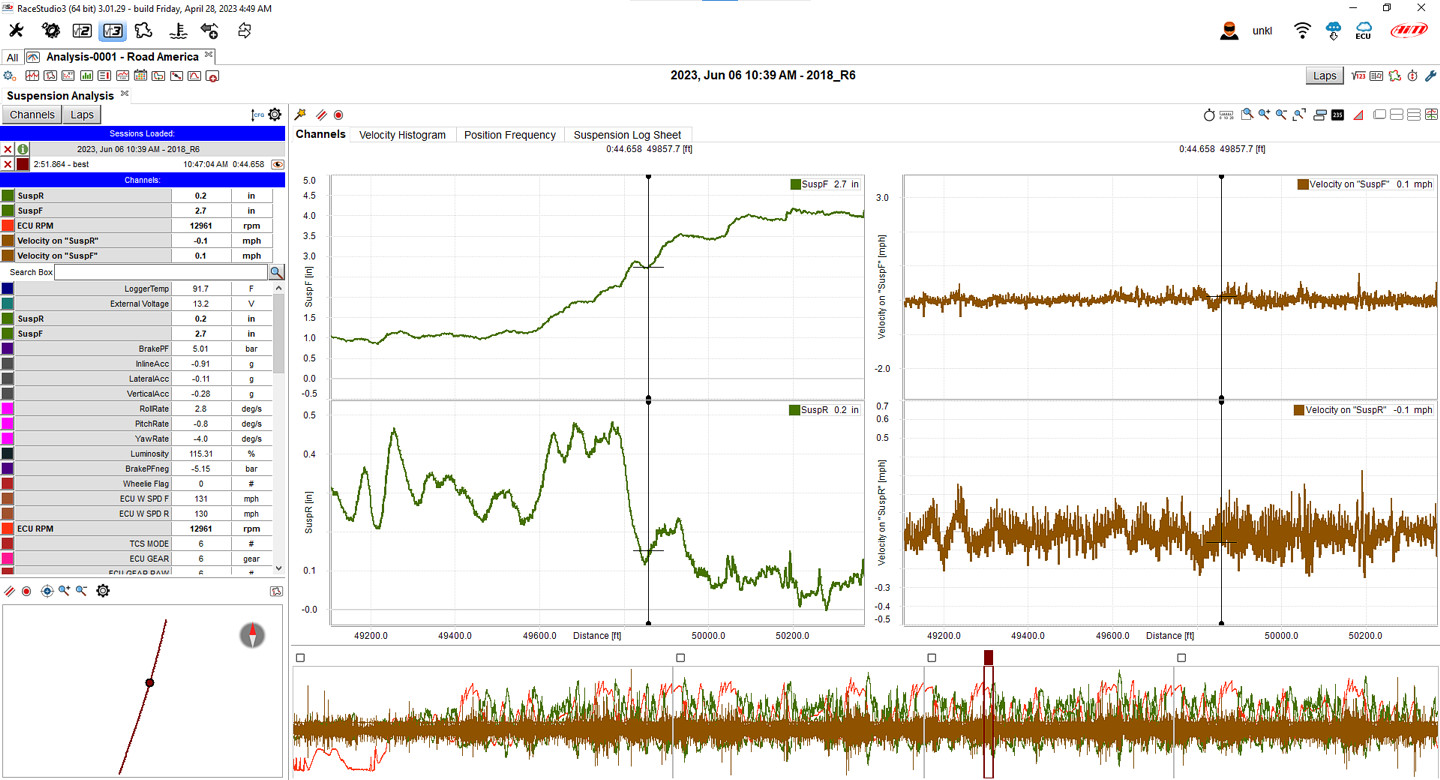

All the acquired data by AiM linear potentiometers can be managed through the new Suspension Analysis Tool in RaceStudio 3, for an even more complete performance analysis software.
Roger Caddell Free Online Webinar about ACC, the first version of ACC3.
Roger Caddell Free Online Webinar about Open Products.
In the box: ACC3, Split Harness and AiM CAN cable in the choosen versions.
Previous
Next
ACC3
ACC3 is the compact Analog CAN Converter to expand your AiM system.
ACC3 Expansion manages 4 analog inputs to a max frequency of 200 Hz each and thanks to the dedicated split harness, the managed inputs are: thermocouples, thermoresistances, 0-5 V Signal, 0-12 V Signal, 2 digital speed inputs
Split harness
Cable length
- Estimated delivery date:
-
Express - Buy today and receive it Wednesday 28 May, 2025
