Solo 2 DL

SKU X47SOLO2DL01E0 Category Lap Timers

Solo 2 DL in addition to what Solo 2 offers, provides some extremely useful features:

ECU connection for receiving, showing and recording all the data directly from your ECU, both for CAN, RS232 and K-line connections, low voltage 150-400 V of the coil or from a digital square wave signal (8-50 V) and CAN expansions

More Info

Battery charger

Selected kit with

Estimated delivery date:
UPS - United Parcel Service - Buy today and receive it Monday 25 November, 2024

Solo 2 DL

Approved by

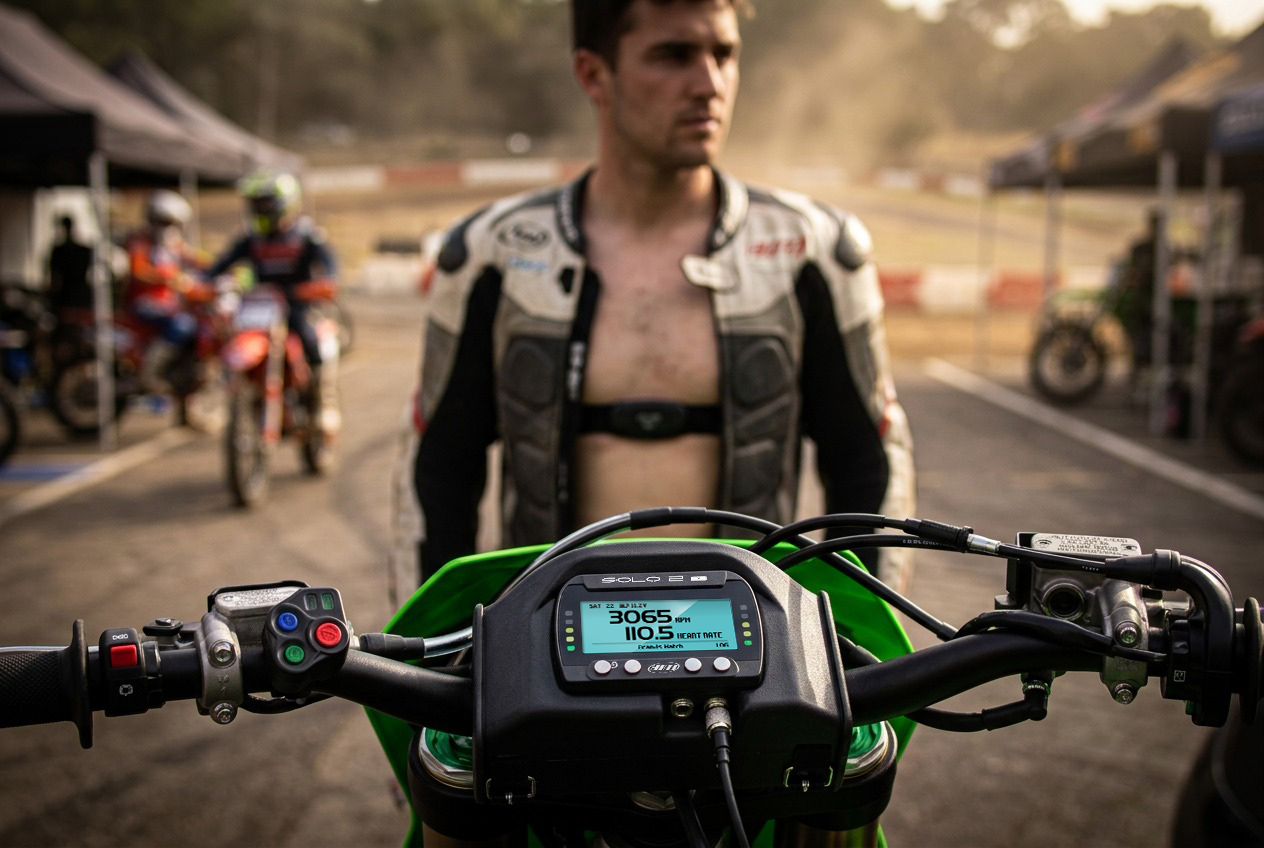

Solo 2 DL is the upgraded version of Solo 2, it features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform and provides:

Lap times
Sector times
Position and vehicle speed
3D acceleration and gyro
ECU data: you can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own. CAN, K-Line or RS232 connections.
Digital RPM from the primary of the coil (150-400V) or from a square wave (8-50V)
CAN expansions: Lambda controller LCU1S, analog inputs ACC2, professional motorsport camera SmartyCam 3

A Solo 2 with ECU Connection

Lap Times and Sector Times

Solo 2 DL features an internal, high precision, 25 Hz, 4 constellations GPS receiver and an internal database including information about thousands of tracks all over the world: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.

Position and speed on track

Position and speed on track are recorded 25 times per second.
Thanks to the four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) with global coverage that Solo 2 DL manages, the precision is generally under 0.5 mt.

3D Accelerations and Gyro

The inertial platform at 100 Hz gives the possibility to calculate roll, pitch and yaw.

Predictive Lap Time

Based upon:

Best lap of the day

Best lap of the session

Previous lap

User reference lap

Types of tests:

Speed races in a closed/open circuit | Performance tests
Choose the type of performance you like to evaluate, selecting:

Speed

Distance

Speed

0-60 mph
60-0 mph
0-100 Km/h
0-160 Km/h

Distance

After test on screen analysis

Solo 2 DL shows the most important information during your test, and features a powerful data analysis on the screen when you arrive at the box.

Solo 2 DL in-depth analysis on RaceStudio 3

Our professional RaceStudio 3 software lets you analyze your data. It offers all the features for evaluating every possible aspect of your performance.

ECU connection

Choose the right protocol for connecting the Solo 2 DL to your engine among thousands of protocols available.
In case the protocol for your vehicle is not available in our huge database, you can anyway easily develop it thanks to the "ECU Driver Builder" feature, available in our RaceStudio 3 software.
