GPS09c with integrated antenna and CAN cable. You can choose between standard version and Pro version (6 axis IMU). Available in Roof version too.
The GPS for motorsport
An incredibly powerful GPS
For precise track data acquisition, the GPS09c module and RaceStudio 3 software offer a leading solution. This combination delivers immediate and accurate capture of essential parameters, from lap times and speed to engine tuning data and track position. Gain instant insights from the moment you hit the circuit, enabling detailed lap analysis and performance optimization.
GPS: 25 Hz
Constellation: 4 (GPS, GLONASS, Galileo, BeiDou)
Accuracy: 0.5 m CEP
Cold Start: 30 seconds TTFF
Hot Start: 1 second
Antenna: Internal, 22 mm
External Power: 5-15 V
Connection: AiM CAN
Roof version offers an easier and clean installation on the external surface of the vehicle - no more issue with the GPS signal - avoiding problems of application inside certain cockpit.

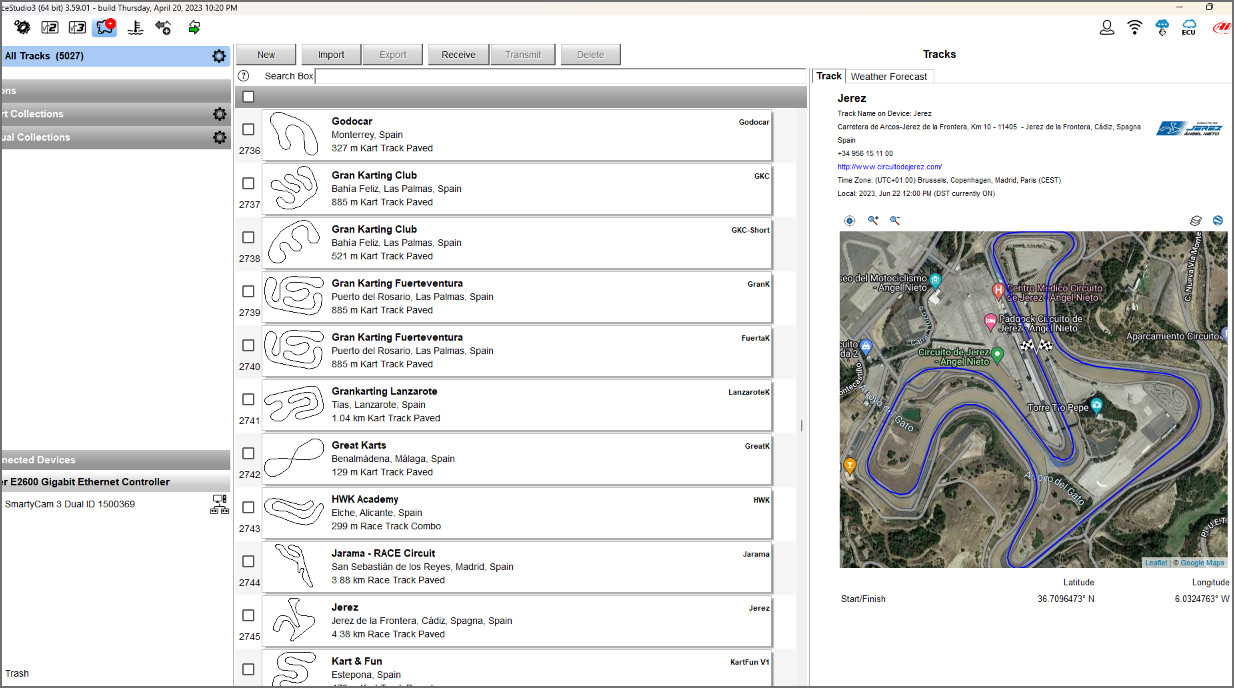

Track database
GPS09c is the basis of lap time and split time calculations of all AiM systems. They come with start/finish line coordinates of more than four thousand tracks, so your dash or logger automatically recognizes the track you are racing on, and will calculate lap times and split times. What if the track is not in the database? No problem, your system will recognizes a new track and then will calculate lap times.
GPS channels available at 25 Hz:
- Altitude
- Latitude
- Longitude
- Sats number
- Pos Accuracy
- Speed Accuracy
- GPS Lateral acceleration
- GPS Linear acceleration
- GPS Heading
- GPS Yaw rate
- GPS Hour
- GPS Min
- GPS Sec
- GPS Hundredths of a second
- Year
- Month
- Day
- Week number
- ITOW
- Unix Time

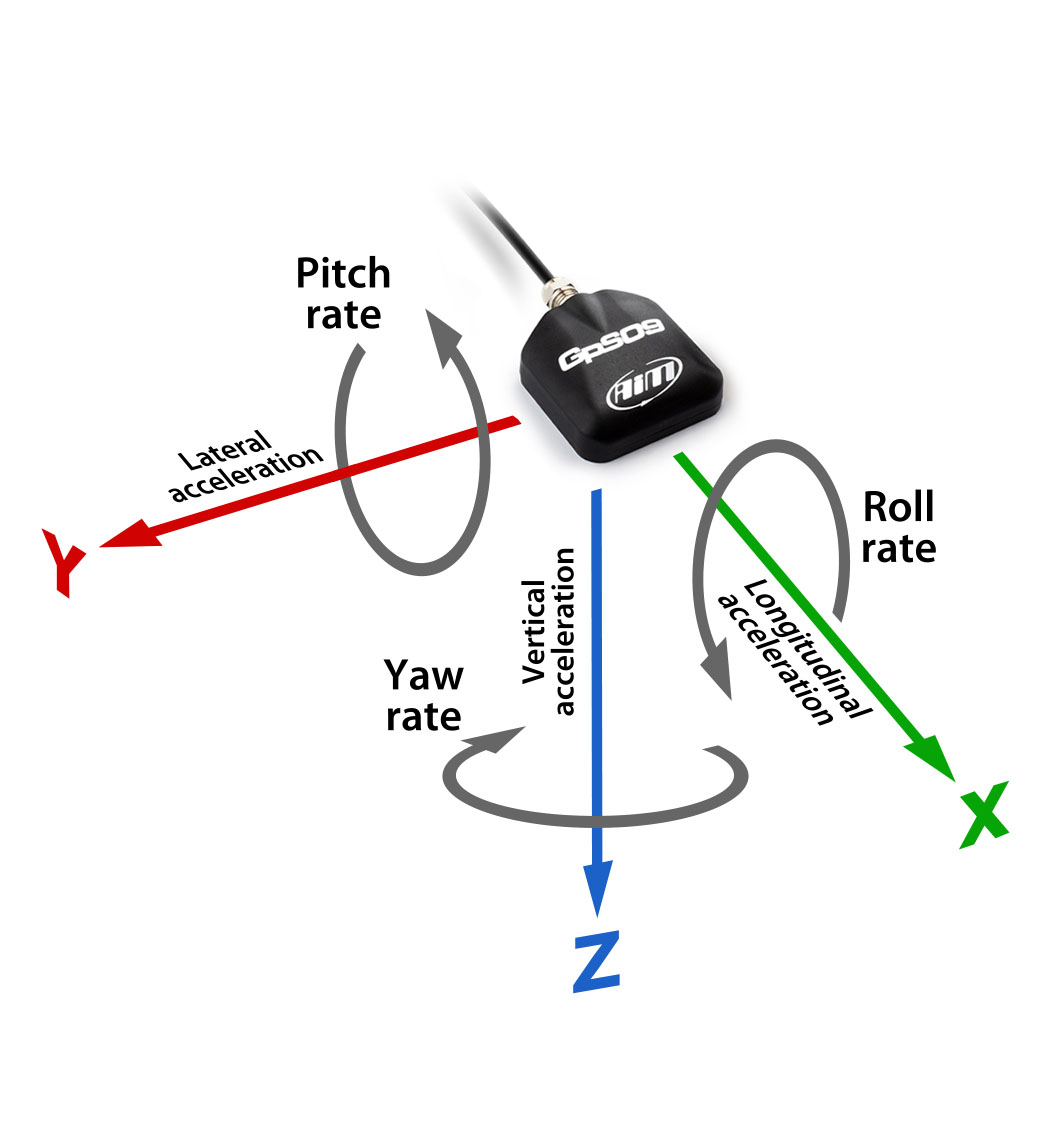

IMU data available through CAN connection at 100 Hz
(GPS09c Pro and GPS09c Pro Open only):
- Acceleration X
- Acceleration Y
- Acceleration Z
- Pitch rate
- Yaw rate
- Roll rate
AiM Compatible Devices
GPS09c range can be connected to the following AiM devices:
MX Series
SmartyCam 3 Series*
Loggers
Laptimers
Power Distribution Module
* not compatible with Pro and Pro Open versions.
