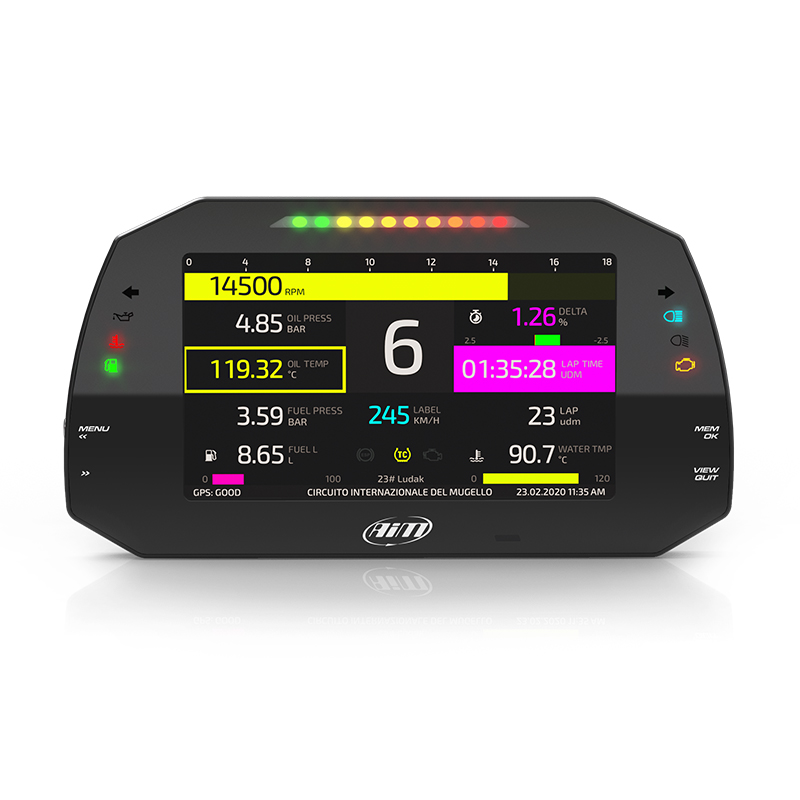

MX Series
A compete range of TFT Dash & Dash Loggers for Motorsport
A wide range of data sources
AiM dashes and dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c included in the kit (dash loggers version only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.
DASH LOGGER
DASH
DASH LIGHT
Technical Specification
DASH LOGGER |
DASH |
DASH LIGHT |
|||||
| Display technology | High contrast colour TFT |
||||||
| Display resolution | 5''-6"-7": 800x480 | 10": 1280x480 |
||||||
| Ambient light sensor | Yes |
||||||
| Alarm display icons | Freely configurable |
||||||
| Shift lights | 10 RGB LEDs |
||||||
| Alarms | From 5 to 8 RGB LEDs |
||||||
| CAN connections | 3 |
||||||
| ECU connections | CAN, RS232 or K-Line |
CAN or K-Line |
|||||
| Inertial platform | Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz |
-- |
-- |
||||
| Analog/digital inputs | 8 configurable, analog/digital (0-5 V, 0-12 V) max 500 Hz each |
4 configurable, analog (0-5 V) max 500 Hz |
|||||
| Digital inputs | 4 speed inputs, coil RPM input |
1 speed input, coil RPM input |
-- |
||||
| Digital outputs | 2 (max 1 A each) |
1 (max 1 A) |
-- |
||||
| GPS Module | Yes |
Optional |
|||||
| Internal memory | 4 GB |
-- |
-- |
||||
| Integrated data logger | Yes |
-- |
-- |
||||
| Wi-Fi connection | Yes |
-- |
-- |
||||
| Analog camera input | Yes |
||||||
| Body | Anodized aluminum |
||||||
| Connectors | 1 Motorsport 37 pins + 1 Motorsport 22 pins + 1 Binder 5 pins 712 |
1 AMPSEAL 23 pins + 1 AMPSEAL 14 pins + 1 Binder 5 pins 712 |
1 AMPSEAL 23 pins + 1 Binder 5 pins 712 |
||||
| Power consumption | 400 mA |
||||||
| Waterproof | IP67 |
||||||
| Expansions | Optionals |
||||||
| RaceStudio 3 | Constantly updated and freely downloadable |
||||||
CAN, K-LINE and RS232 ECU Connection
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes
more than 2,000 ECU protocols.
Tracks
With more than 4,000 tracks in database, GPS09c (included in the logger versions) recognizes the track you are racing on and automatically starts sampling lap times.
Thanks to Track Manager function of RaceStudio 3, tracks can be created, deleted and modified, transmitted and received to/from MX Series.
LAP TIME MANAGER
MX systems calculate lap times and record data, track name and time of the test making your life easier when you analyze your data. In case the track is not in the database, no problem: MX dash loggers automatically understand the characteristics of the track and give the lap time anyway.
Position and speed on track
MX dash loggers offer exceptional accuracy, achieving sub-0.5 meter precision by leveraging four satellite constellations. They also provide high-frequency data sampling at 25 Hz. If you have a Strada or Strada Light version, you can add the optional GPS09c to accurately record lap times. Furthermore, the Strada Logger accessory converts your Strada or Strada Light device into a comprehensive MX dash logger, fully enabling session recording.
Inertial Platform
3D accelerations and gyro - the inertial platform at 100 Hz - gives the possibility to calculate roll, pitch and yaw.
This feature is available only in dash logger versions.
DATA RECALL
At the end of the test sampled data can be recalled. MX dashes and dash loggers will show you the latest test with date and place.
Histogram test summary will show all laps of the session moving the cursor so to immediately analyze your performance.
EXPANSION
MX Series can be connected to a lot of AiM expansions like GPS09c, ACC3, CAN Keypads and LCU1S to get the best from your engine and - with AiM SmartyCam 3 family - to see your track performances on your PC with all the values you need in overlay.
.jpg)
Rear camera
You may connect up to two additional optional rear cameras to the dedicated input in order to show a reverse mirror image directly on the logger display.
Custom dashboard
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. You can show the data via bargraph, ringbar, icons and much more.
Flexible Alarms, Shift Light Array & Icons Manager
Configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or a flashing one and the flashing frequency; choose to have an accompanying text message and set the alarm priorities. You can customize the RGB shift light patterns as you like and select the icons you need among a wide list on RaceStudio 3 .
RACE STUDIO 3
RaceStudio 3 is the heart of MX series, managing all your activities related to:
CONFIGURATION
With RaceStudio 3 you can create, modify, delete, import and export configurations of:
- All channels
- ECU drivers
- Math channels
- Display pages
- Digital outputs
- Alarms
- Shift lights
- Expansions
Analysis
In RaceStudio 3 you can also analyze all data recorded by MX dash loggers and downloaded to your PC.
Graphs, histograms and tables will help you studying your performance, providing an objective support to avoid mistakes and improve your performance as well as tuning the engine and adjust the setup of your vehicle.
You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam 3 cameras.
WI-FI connectivity
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 Wi-Fi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.
Free Online Webinars
Since 2020 our teacher Roger Caddell holds informative webinars and creates tutorials.
AiM Sports LearnFast™ webinars on AiM Sports YouTube channel are completely dedicated to helping you understand data and/or video system and to support you using AiM software.
With tons of tutorials available you will be better equipped to start using data in order to achieve your racing goals.
ACCESSORIES
Single AiM Rear camera patch cable
Rear Camera
Double AiM Rear camera patch cable
Double RearMaster mirror camera patch cable
Single RearMaster mirror camera patch cable
USB - Mini USB cable
Infrared Optical Receiver
22 Pins Deutsch Optional harness
23 pins AMP harness
14 pins OBDII harness
14 pins standard harness
37 Pins Deutsch harness
Amphenol-Mini USB Adapter
23-Pins connector + contacts
14 pins connector + contacts
22 Deutsch Connector
37 Deutsch Connector
