The CAN-Bus Keypads

Compact,
fully customizable,
water and dust proof.

Keypad series

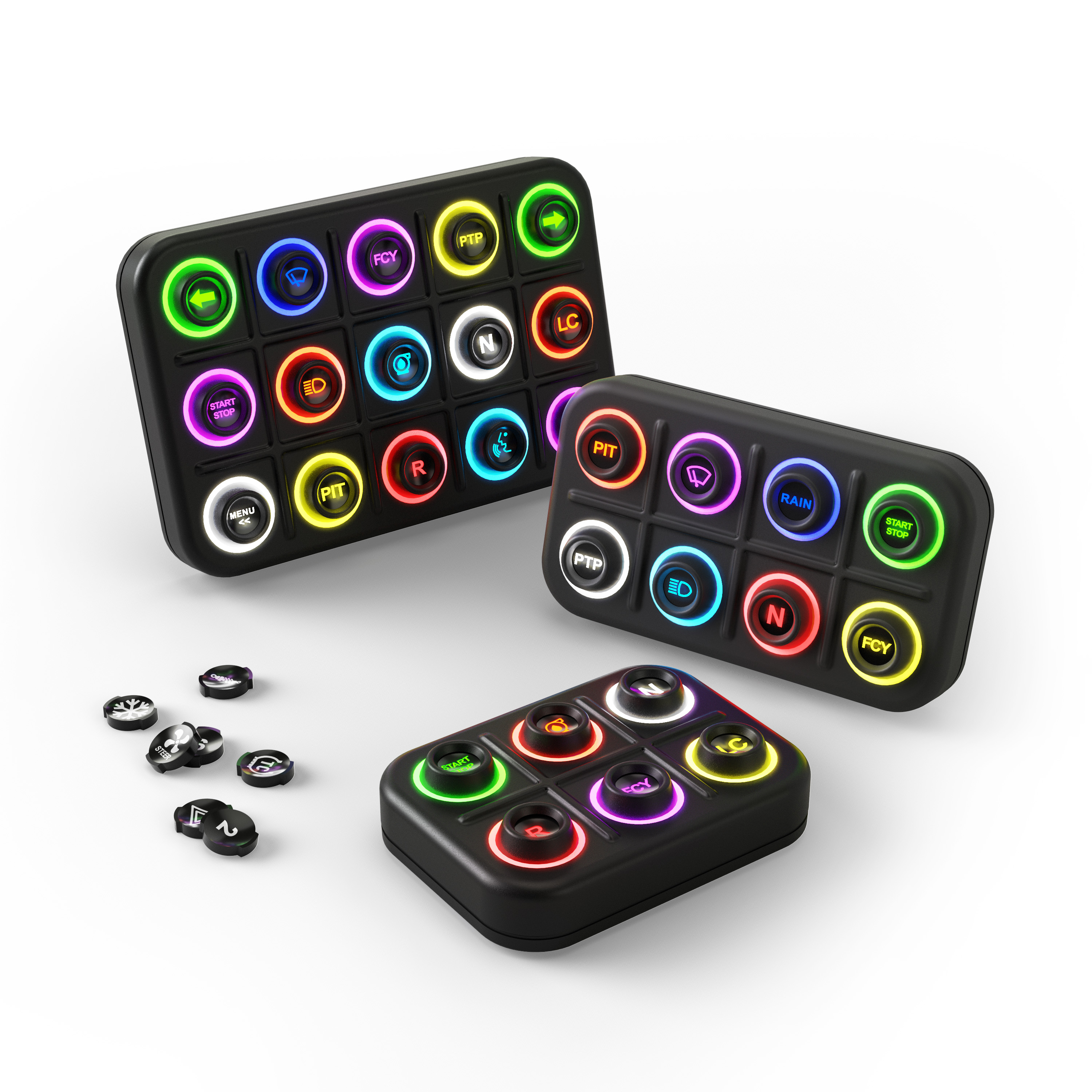

K6, K8 and K15 are compact keypads based on CAN-Bus protocol.

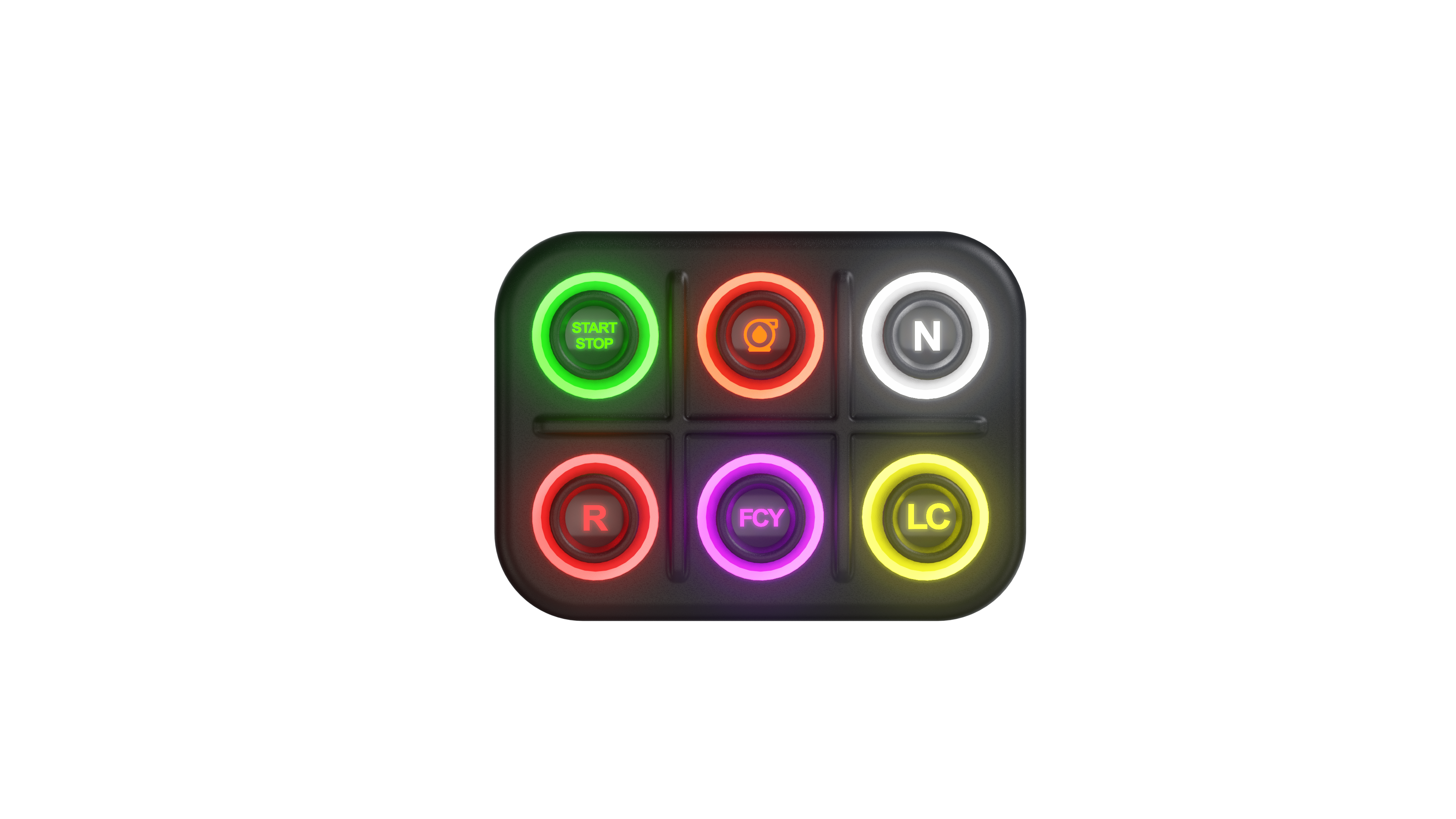

K6 - K6 Open

K8 - K8 Open

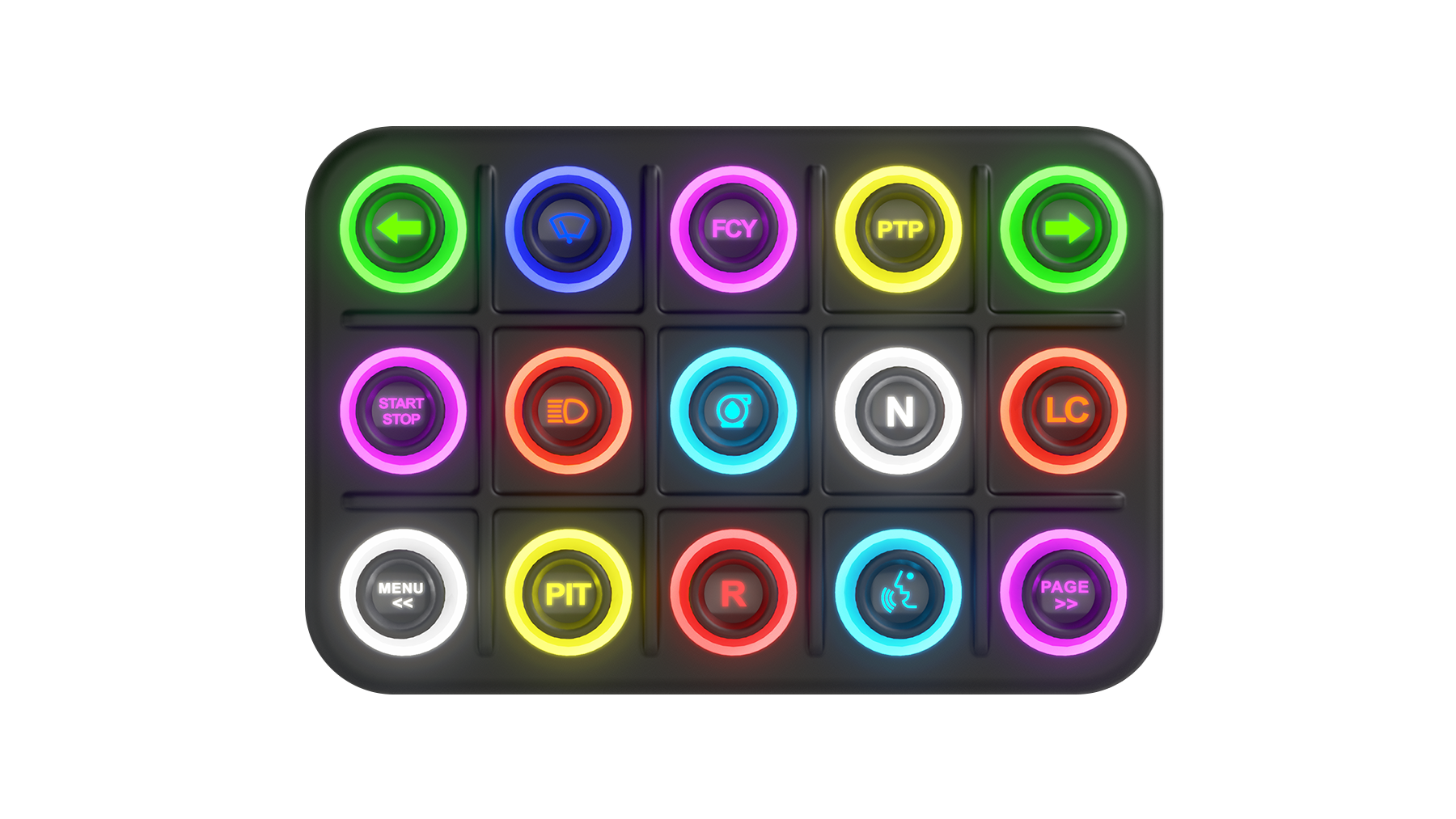

K15 - K15 Open

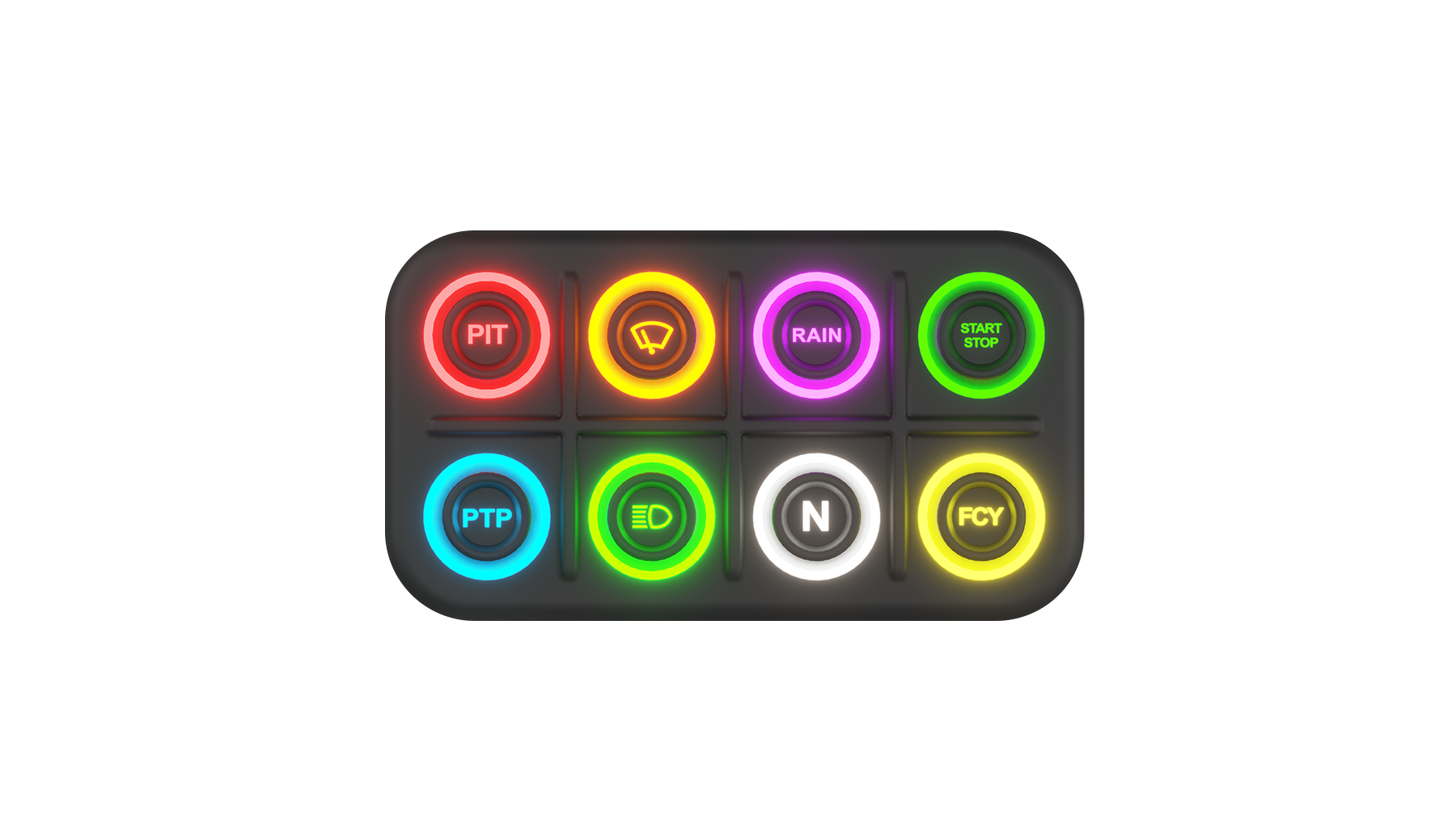

The devices are water and dust resistant and can be installed both inside and outside the cockpit.

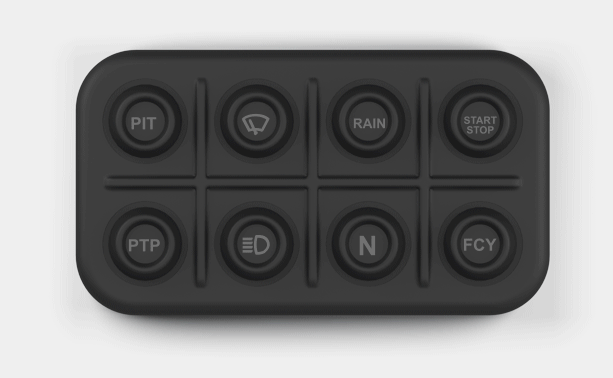

They are fully customizable and proposed with a wide range of interchangeble inserts.

All the keypads are available as Expansion for AiM devices  and as Open version configurable via USB and connectable via CAN to any device.

Common features:

  • Reconfigurable buttons
  • Programmable RGB LEDs
  • LED backlit rings and icons
  • Momentary, toggle and multi-status
  • 2 blinking mode
  • Wide range of inserts
  • CAN-Bus system compatible
  • Vertical or horizontal mount
  • Status restore option

K Keypads | AiM EXPANSION

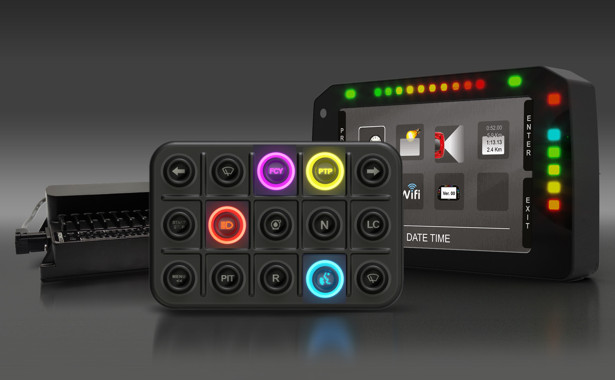

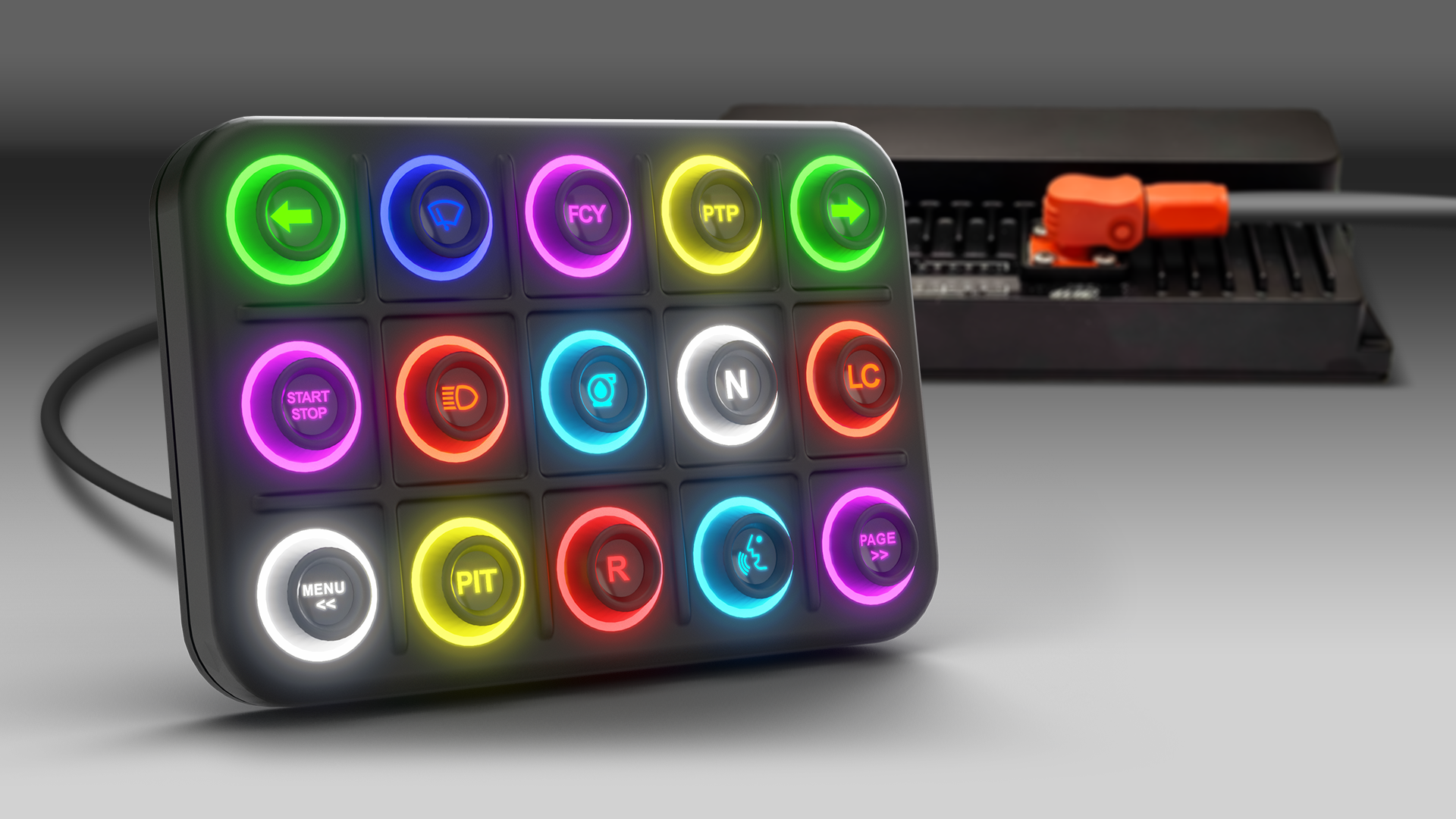

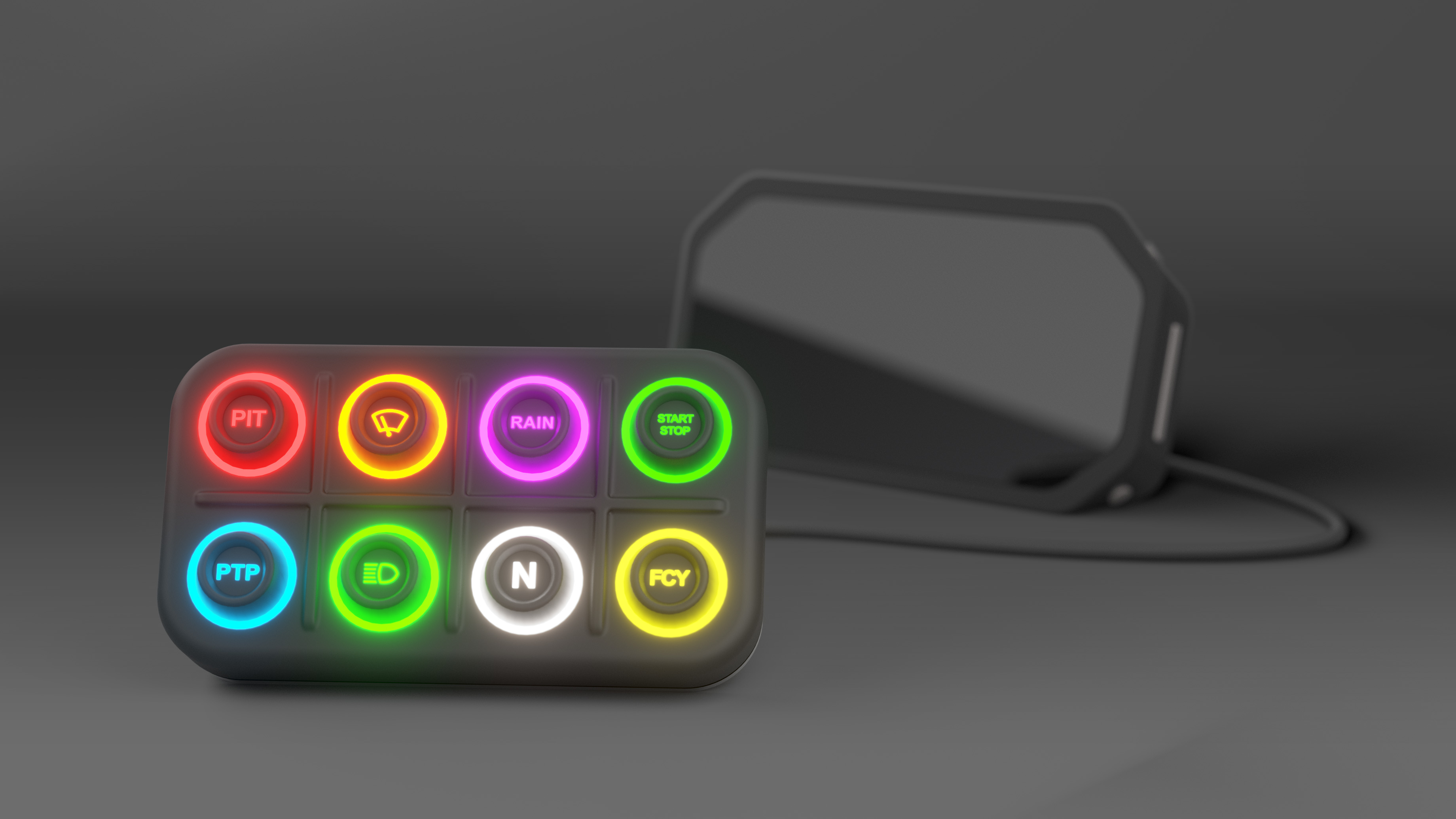

Connectable to the AiM master devices such as dashes, dash loggers and PDMs through the AiM Expansion CAN Bus (go to the section).

K Keypads Open | OPEN VERSION

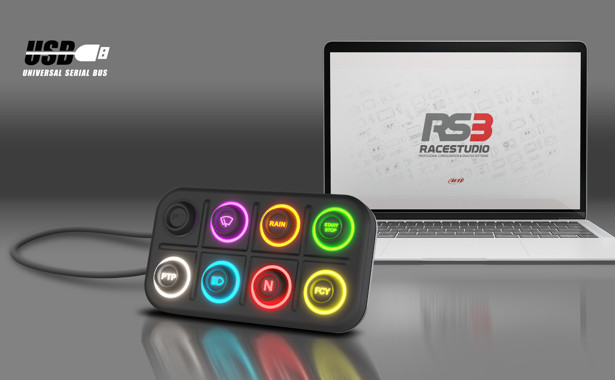

Freely configurable through USB, using the AiM software RaceStudio 3, they can be connected through CAN to every external device (go to the section).

ACCESSORIES

DOCUMENTATION
Connectable to
AiM master devices
Other devices
AiM master devices
Other devices
AiM master devices
Other devices
Pushbuttons
6 programmable keys
8 programmable keys
15 programmable keys
Backlight
RGB with dimming option
Connection
AiM CAN 5 pins
Binder 712
USB CAN 7 pins
Binder 712
AiM CAN 5 pins
Binder 712
USB CAN 7 pins
Binder 712
AiM CAN 5 pins
Binder 712
USB CAN 7 pins
Binder 712
Materials
Rubber silicon and PA6 GS30% reinforced
Dimensions
97.4 x 71.4 x 24 mm
127.4 x 71.4 x 24 mm
157.4 x 104.4 x 24 mm
Weight
120 g
150 g
250 g
Waterproof
IP67

K KEYPADS AiM EXPANSION FEATURES

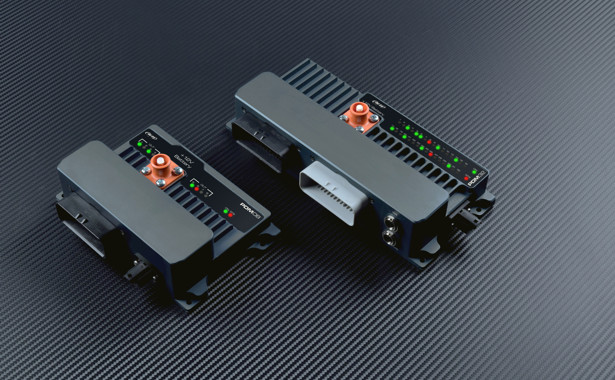

K Keypads can be connected to the AiM master devices such as dash loggers and PDMs.

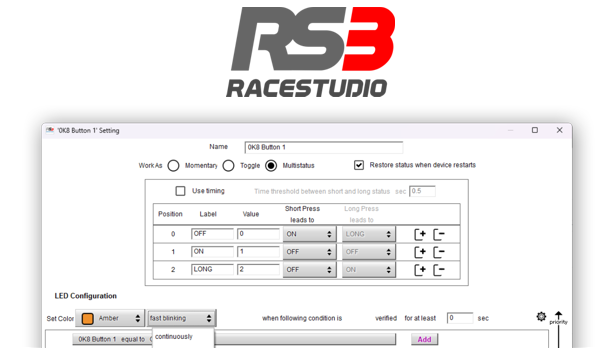

They can be freely configurable as an expansion using the software RaceStudio 3.

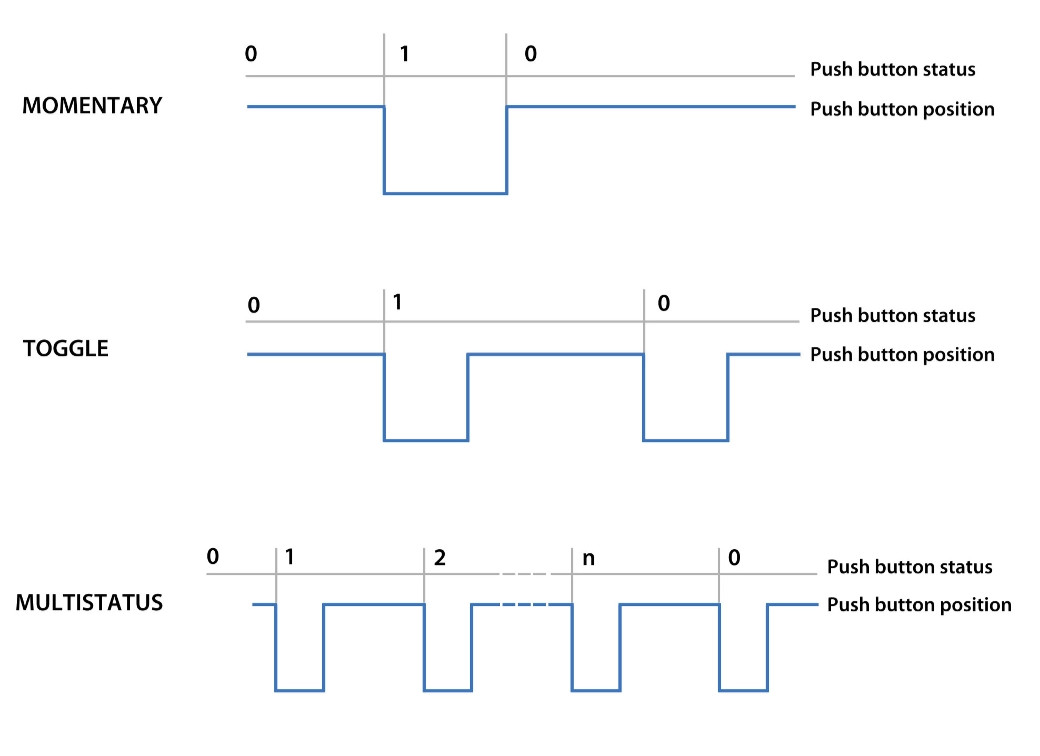

The pushbuttons can be:

MOMENTARY

The pushbutton status is ON when the pushbutton is pushed.

TOGGLE

The pushbutton status changes from ON to OFF every time the pushbutton is pushed.

MULTISTATUS

The pushbutton value changes from 0 to a MAX Value every time the pushbutton is pushed.

RGB LEDs

RGB LEDs are the best choice in low visibility conditions.

Every pushbutton can be enlightened in 1 of 8 different colors, solid or blinking, according to the configuration defined by the user.

It is possible to configure a pushbutton for incrementing or decrementing the K6/K8/K15 LEDs brightness.

ADDITIONAL CONTROLS

In addition to the primary functionality of the buttons, K6/K8/K15 buttons can be setup for managing the AiM display connected to the devices.

INTERCHANGEABLE INSERTS

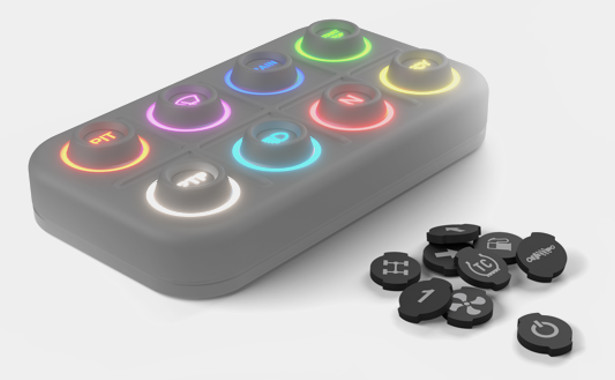

It is possible to choose among a wide range of inserts available; with 72 elements easily interchangeable, you'll have the possibility to create different configurations with the same K6/K8/K15 keypad based on any needs.

ICON INSERTS LIST

OPEN VERSION FEATURES

Keypad series, just like GPS09c or ACC3, are available in "Open Version". These keypads can be easily configurable via USB with AiM software RaceStudio 3 for transmitting the data via CAN to every external device.

The "Open Versions" can also be used as an AiM Expansion, without any issues or limitations.

The pushbuttons can be:

MOMENTARY

The pushbutton status is ON when the pushbutton is pushed.

TOGGLE

The pushbutton status changes from ON to OFF every time the pushbutton is pushed.

MULTISTATUS

The pushbutton value changes from 0 to a MAX Value every time the pushbutton is pushed.

RGB LEDs

RGB LEDs are the best choice in low visibility conditions.

Every pushbutton can be enlightened in 1 of 8 different colors, solid or blinking, according to the configuration defined by the user.

Available colors for RGB LEDs

It is possible to configure a pushbutton for incrementing or decrementing the K6/K8/K15 LEDs brightness.

CAN MESSAGES CONFIGURATION

The status of the pushbuttons is transmitted at fixed frequency or/and when it changes.

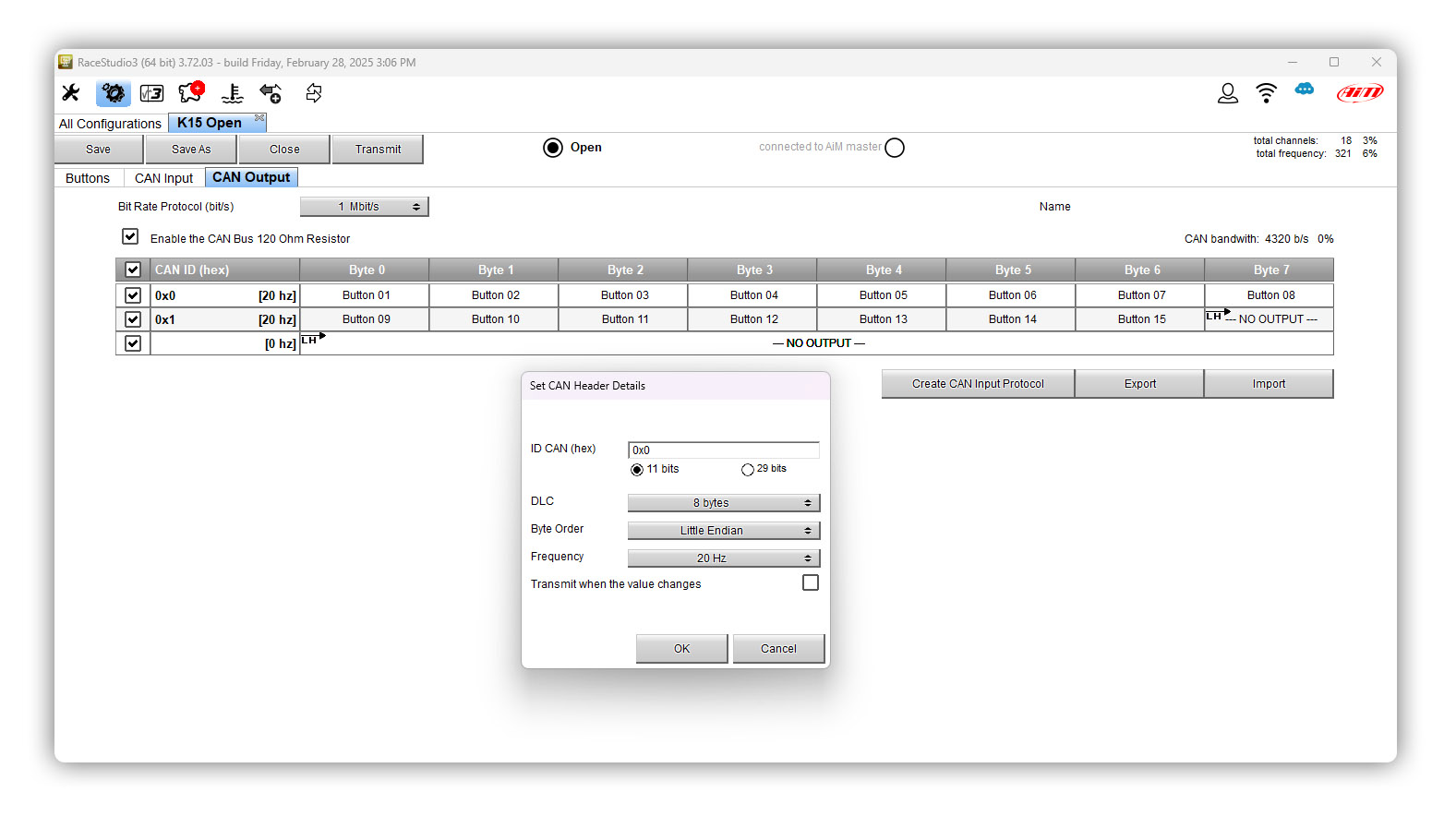

The CAN messages as frequency, IDs, baud rate, endian and contents can be freely configured.

The status of every pushbutton at the power OFF can be hold at the next power ON.

K6/K8/K15 Open Keypads can manage a CAN INPUT protocol, in order to give a feedback, trough the color LEDs, based upon the information received.

INTERCHANGEABLE INSERTS

It is possible to choose among a wide range of inserts available; with 72 elements easily interchangeable, you'll have the possibility to create different configurations with the same K6/K8/K15 keypad based on any needs.

ICON INSERTS LIST

FREE WEBINARS

Follow the Roger Caddel free online seminars about Keypad series.

The webinar guest has been Robbie Yeoman, AiM Sports Chief Tech Officer.

WATCH THE WEBINAR NOW

Follow the Roger Caddel free online seminars about Open devices.

The webinar guests have been Bryc Talley, AiM Sports Technician, and Robbie Yeoman, AiM Sports Chief Tech Officer.

WATCH THE WEBINAR NOW

Keypad series  features:

Reconfigurable button’s | RGB LEDs programmable | LED Backlit rings and icons | CAN-Bus systems compatible | Momentary, toggle and multi-status | 3 blinking mode | Wide range of inserts and icons | Vertical or horizontal mount | Status restore option


In the box:

Keypad K6/K8/K15 in the chosen version Open or AiM Expansion and AiM CAN  Harness from 50 cm to 400 cm or CAN harness (Open version) from 200 to 400 cm.

Choose your new keypad version

K15 | AiM Expansion

K8 | AiM Expansion

K6 | AiM Expansion

K15 | Open

K8 | Open

K6 | Open
