The GPS for motorsport

GPS09c is proposed in the following versions:

FEATURES
CONNECTIONS
CONNECTABLE TO
AVAILABLE MECHANICAL VERSIONS
GPS receiver
6 axis 100 Hz inertial platform
CAN
RS232
AiM network
Other devices
Normal
Roof installation
GPS09c
GPS09c Pro
GPS09c Open
GPS09c Pro Open

An incredibly powerful GPS

For precise track data acquisition, the GPS09c module and RaceStudio 3 software offer a leading solution. This combination delivers immediate and accurate capture of essential parameters, from lap times and speed to engine tuning data and track position. Gain instant insights from the moment you hit the circuit, enabling detailed lap analysis and performance optimization.

GPS: 25 Hz
Constellation: 4 (GPS, GLONASS, Galileo, BeiDou)
Accuracy: 0.5 m CEP
Cold Start: 30 seconds TTFF
Hot Start: 1 second
Antenna: Internal, 22 mm
External Power: 5-15 V
Connection: CAN

Roof version offers an easier and clean installation on the external surface of the vehicle - no more issue with the GPS signal - avoiding problems of application inside certain cockpit.

Technical Specifications

GPS09c
GPS09c Pro
GPS09c Open
GPS09c Pro Open
GPS
25 Hz
Constellation
4 (GPS, GLONASS, Galileo, BeiDou)
Accuracy
0.5 m CEP
Cold start
30 seconds TTFF
Hot start
1 second
Antenna
Internal, 22 mm
External power
5÷15 V
Connection
AiM CAN
CAN, RS232
Inertial platform
--
100 Hz 6 axis
--
100 Hz 6 axis
Dimensions
53.2 x 53.8 x 19.7 mm (53.2 x 53.8 x 37.2 mm for Roof version)
Weight
60.5 g (100 g for Roof version)

Grazie al software RaceStudio 3 potete facilmente programmare il vostro GT32 a seconda delle vostre necessità: potete impostare la versione espansione nella configurazione di PDM32/08 e configurare la versione standalone attraverso il collegamento USB-C.

Track database

GPS09c module is the basis of lap time and split time calculations of all AiM systems. They come with start/finish line coordinates of more than four thousand tracks, so your dash or logger automatically recognizes the track you are racing on, and will calculate lap times and split times. What if the track is not in the database? No problem, your system will recognizes a new track and then will calculate lap times.

GPS channels available at 25 Hz:

  • Altitude
  • Latitude
  • Longitude
  • Sats number
  • Pos Accuracy
  • Speed Accuracy
  • GPS Lateral acceleration
  • GPS Linear acceleration
  • GPS Heading
  • GPS Yaw rate
  • GPS Hour
  • GPS Min
  • GPS Sec
  • GPS Hundredths of a second
  • Year
  • Month
  • Day
  • Week number
  • ITOW
  • Unix Time

IMU data available through CAN connection at 100 Hz
  (GPS09c Pro and GPS09c Pro Open only):

  • Acceleration X
  • Acceleration Y
  • Acceleration Z
  • Pitch rate
  • Yaw rate
  • Roll rate

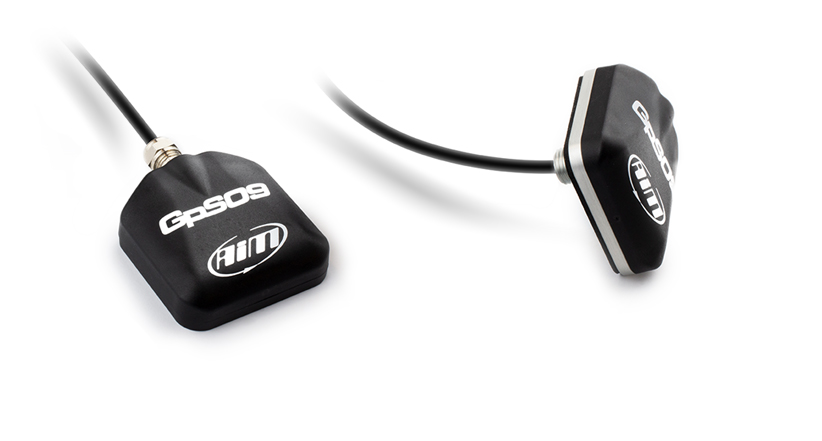

GPS09c with integrated antenna and CAN cable. You can choose between Standard version and Pro version (6 axis IMU). Available in Roof version too.

OPEN VERSIONS

GPS09c Open module is developed to be compatible with all AiM or not AiM systems.

They offer three output streams; for not AiM systems you can configure the protocol for CAN or RS232.

OPEN RS232 CONNECTION

Freely user configurable

OPEN CAN
CONNECTION

Freely user configurable

AIM CAN
CONNECTION

To be connected as expansion using the AiM CAN network

A dedicated USB cable is available for the configuration,
through the RaceStudio 3 software.

EASY CONFIGURATION WITH RACESTUDIO 3

CAN Connection

AiM RaceStudio 3 software offers the possibility to freely configure the CAN messages.

It is possible to set:

  • Baud rate
  • ID
  • DLC (1-8 bytes
  • Byte order (little endian, big endian)
  • Messages frequency

RS232 Connection

GPS09c Open may be configured for transmitting the GPS NMEA message you need through an RS232 stream.

  • NMEA DTM
  • NMEA GBS
  • NMEA GGA
  • NMEA GLL
  • NMEA GNS
  • NMEA GRS
  • NMEA GSA
  • NMEA GST
  • NMEA GSV
  • NMEA RLM
  • NMEA RMC
  • NMEA VLW
  • NMEA VTG
  • NMEA ZDA
  • NMEA TXT

The meaning of all these NMEA messages is described in www.nmea.org.

AiM Compatible Devices

GPS09c module range can be connected to the following AiM devices:

MX Series

SmartyCam 3 Series*

Loggers

Laptimers

Power Distribution Module

* not compatible with Pro and Pro Open versions.

Choose your version

GPS09c / GPS09c Pro

Expansion version

In the box:

GPS09c Open in the choosen version, CAN or RS232 or CAN AIM harness from 200 to 400 cm

NOTICE - USB configuration cable is optional
