The Ultimate motorsport camera with two bullet lens

THE CAMERA DESIGNED FOR THE MOST DEMANDING RACERS

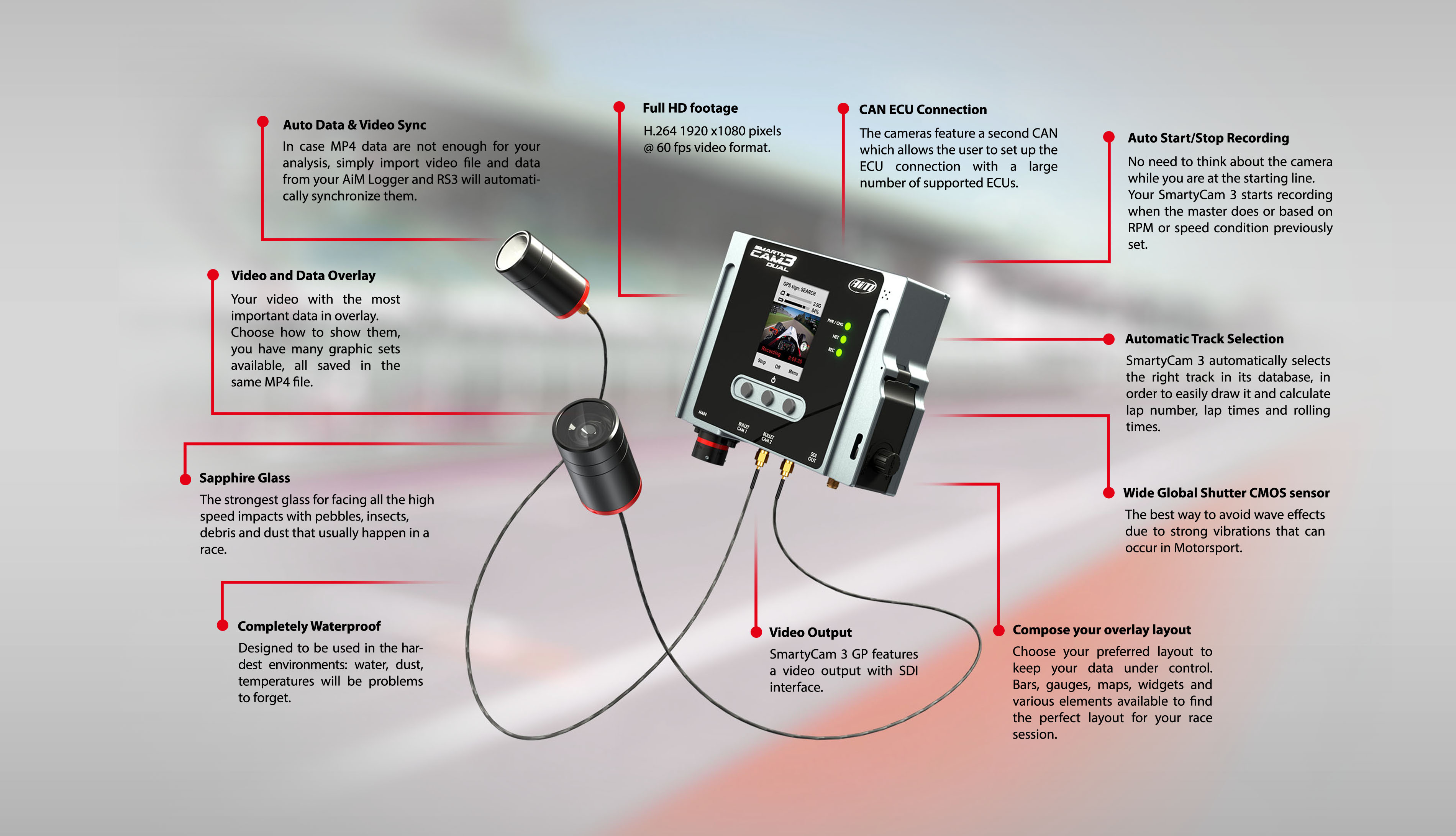

Auto Data & Video Sync

In case MP4 data are not enough for your analysis, simply import video file and data from your AiM Logger and the software will automatically synchronize them: position on the track, video frame and data on the graph will be perfectly correlated.

Video and Data Overlay

Your video with the most important data that you can choose to show in the same MP4 file.

Full HD footage

H.264 1920 x1080 pixels @ 60 fps video format.

CAN ECU Connection

Feature a second CAN protocol that allows the user to set the ECU Stream of a wide number of supported ECUs.

Auto Start/Stop Recording

No need to think about the camera while you are ready at the starting line. SmartyCam 3 cameras starts recording when the master does or based on RPM or speed condition previously set.

2 Bullet lens

With two bullet lens you can use picture in picture view.
The bullets feature low distortion camera lens.
Field of view: 67°,84° and 120° for any track situation.

Video output

3G-SDI to perform a video streaming

Automatic Track Selection

SmartyCam 3 automatically selects the right track in its database, in order to easily draw it and calculate lap number, lap times and rolling times.

Compose your overlay layout

Choose your preferred layout to keep your data under control. Bars, gauges, maps, widgets and various elements available to find the perfect layout for your race session.

Wide Global Shutter CMOS sensor

The best way to avoid wave effects due to strong vibrations that can occur in Motorsport.

Much more than an action camera

Recording real-time overlay video with a low-distortion 67°, 84° 120° bullet lens and the CMOS Global Shutter sensor, SmartyCam 3 Dual is designed to be the choice of those who want to take a step forward in data analysis in the world of Motorsport. With the picture in picture view, you'll be able to monitor your action while driving and the behavior fo the vehicle on track in the same video.

Play Video

PiP - Picture in Picture

Picture in picture allows users to record video from both cameras simultaneously. This allows for an easy and immediate comparison between on-track behavior and the driver's actions, improving performance analysis for motorsports enthusiasts and professionals.

Top notch in motorsport action camera

Cameras with bullet lens in motorsport are the best choice for single-seaters and cars with open cockpit.

Thanks to the  2 bullet cams and all the other feature SmartyCam 3 Dual is the most complete motorsport camera in our range.

SMARTYCAM 3 DUAL GRAPHIC OVERLAYS


REAL-TIME CONFIGURABLE OVERLAYS

SmartyCam 3 cameras have been designed for a single purpose:

PROVIDING GREAT VIDEOS
INCLUDING ALL INFORMATION YOU NEED FOR ANALYSIS

SmartyCam 3 Corsa overlays all the data from both GPS and AiM loggers connected to your ECU.

Previous
Next

RACESTUDIO 3 - THE POWERFUL SOFTWARE

SmartyCam 3 Configuration

With RaceStudio 3 software you can configure your overlays as you wish: add your logo and the track map and choose your graphic elements from a list of pre-determined sets with same layout or even single objects from different sets. Your videos will be truly "yours" in all details, from the data to their graphic layout.

Play Video

VIDEO AND DATA ANALYSIS WITH RS ANALYSIS 3

The key to improvement in Motorsport

Data Analysis in Motorsport is based on 3 pillars and they form a formidable framework for enhancing your personal or team’s performance.

MAXIMIZING DRIVER PERFORMANCE
MONITORING VEHICLE STATUS
OPTIMISING EFFICIENCY

Thanks to the SmartyCam 3 cameras, all these important aspects could be under your control.
The videos created by SC3 provide fantastic insights into telemetry and track lines in a professional motorsports setting.
Keeping track of your car’s health is the first pillar of data analysis and with a SmartyCam 3 and an AiM logger you can visualize and manage alerts and essential data such as oil pressure and battery voltage for identify potential issue early, saving valuable time and efforts when faults.
Monitoring sensors and other parameters can help eliminate possible setup dead ends, guiding you to make more targeted adjustments.

The video of a whole session, once downloaded on your PC, can be split - with a simple click - in individual videos of each lap: so that you can simultaneously watch two of them and check where you were faster or slower. The same operation can be performed with a SmartyCam 3 video recorded on the same track: you will be able to compare your best lap with other sessions.

ADDITIONAL FEATURES

Video Output

SmartyCam 3 Dual features a video output with SDI interface.
It allows to send the video/audio stream to a streamer at 30 or 60 fps to perform a video live streaming.

CAN connection

Connector labelled EXP is used to CAN connect the camera with AiM systems. In the CAN network SmartyCam 3 Dual can be a master or a slave and can be connected to different AiM devices. The second CAN is dedicated to ECU connection with more than 2,000 protocols supported, constantly updated. This connection can also be configured to communicate with other devices through RaceStudio 3 software.

USB-C connection

USB-C port, placed in the side flap, makes any transfer from PC to SmartyCam 3 GP and viceversa easy and fast. Using the proper cable, USB-C port makes it possible to send configuration, updating, tracks and settings the camera framing in live view.

Full internal datalogger

All data received from the CAN bus and from the connected sensors are recorded in .mp4 files produced at the end of your test, your SD Card contains all the information you need for a deep data analysis. Whit the SD card you can also send the configuration, update and tracks to the camera.
SD card sold separately.

Designed for the extreme

An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather. That is why SmartyCam 3 cameras are IP65 waterproof made in machinery molded aluminum, PA fiberglass reinforced and features sapphire frontal glass for a complete protection.

Automatic Start & Stop

You have other things to think about while you are racing and your SmartyCam 3 cameras is aware of that. That is why it switches on/off automatically and starts/stops recording in the same way.
With SmartyCam 3 GP installed, the only thing you need to remember is to wipe off the bugs form the lens!

No "Jello Effect" with Global Shutter CMOS

Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that bothersome “jello effect” you get watching videos recorded by a camera with rolling shutter when the vehicle is running. SmartyCam 3 cameras have been designed for that environment and for those vibrations.
“Jello effect” will be just a distant memory.

High quality with small size video files

Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other FHD cameras but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.

The Bullet Lens Field of View

Bullet cameras are the best option for open-wheels car, prototype and motorbike.

SmartyCam 3 bullet lens comes with 67°-84°-120° angle.

The 67° FOV lens is usually adopted in closed roof cars, thus avoiding an excessive view of the cockpit in the video, while the 84° and 120° lenses are used in open-wheel cars and prototype offering a wide open view of the track.

In the box:

SmartyCam 3 Dual unit with 2 bullet lens 67°, 84° or 120°, 200 or 400 cm CAN Expansion/CAN ECU cable, 200 cm bullet cam cable, USB Type-C - Type-A cable.

ACCESSORIES

EXPANSION

TRACK-DAY KIT

The perfect combination between video and data.
Discover

DOCUMENTATION
Previous
Next

SmartyCam 3 Dual

SKU XS3DB6767L2L201 Category Cameras

IF ONE IS GREAT, DUAL IS BETTER

SmartyCam 3 Dual is the flagship version of SmartyCam 3 range, designed for any racer who wants to get the most out from any performance video on the track. Dual Full HD camera system, Video output, CAN connection, USB-C connection, Ethernet port are only few of the features of SmartyCam 3 Dual: the most powerful of our range.

More Info

Bullet cam lens
Second bullet cam lens
