The 6'' display dash logger for motorsports
In the box:

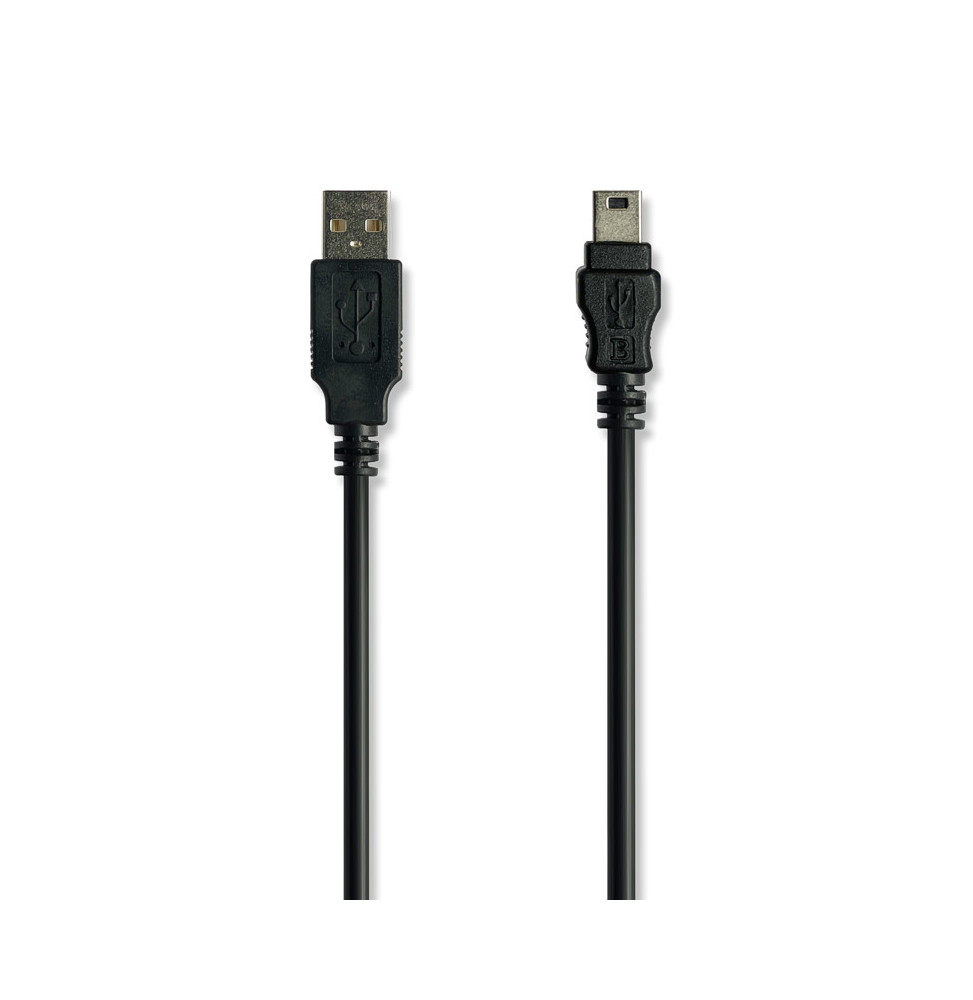

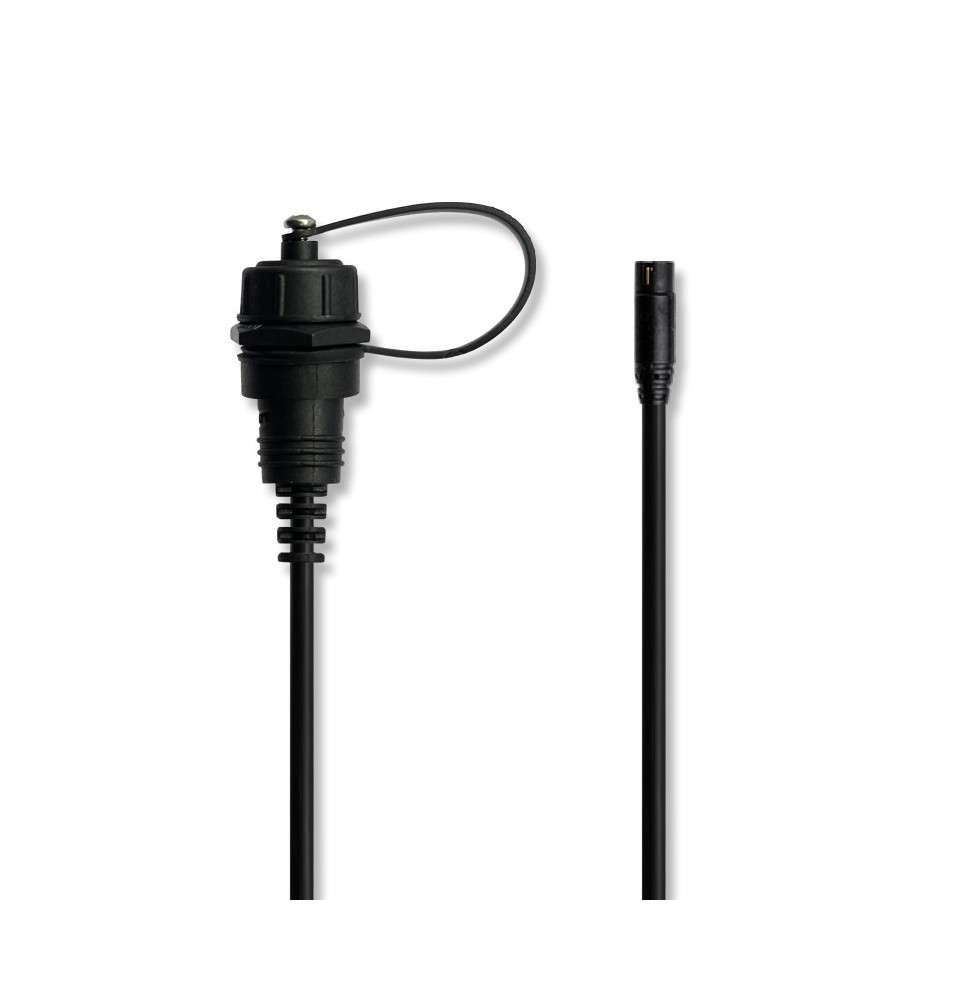

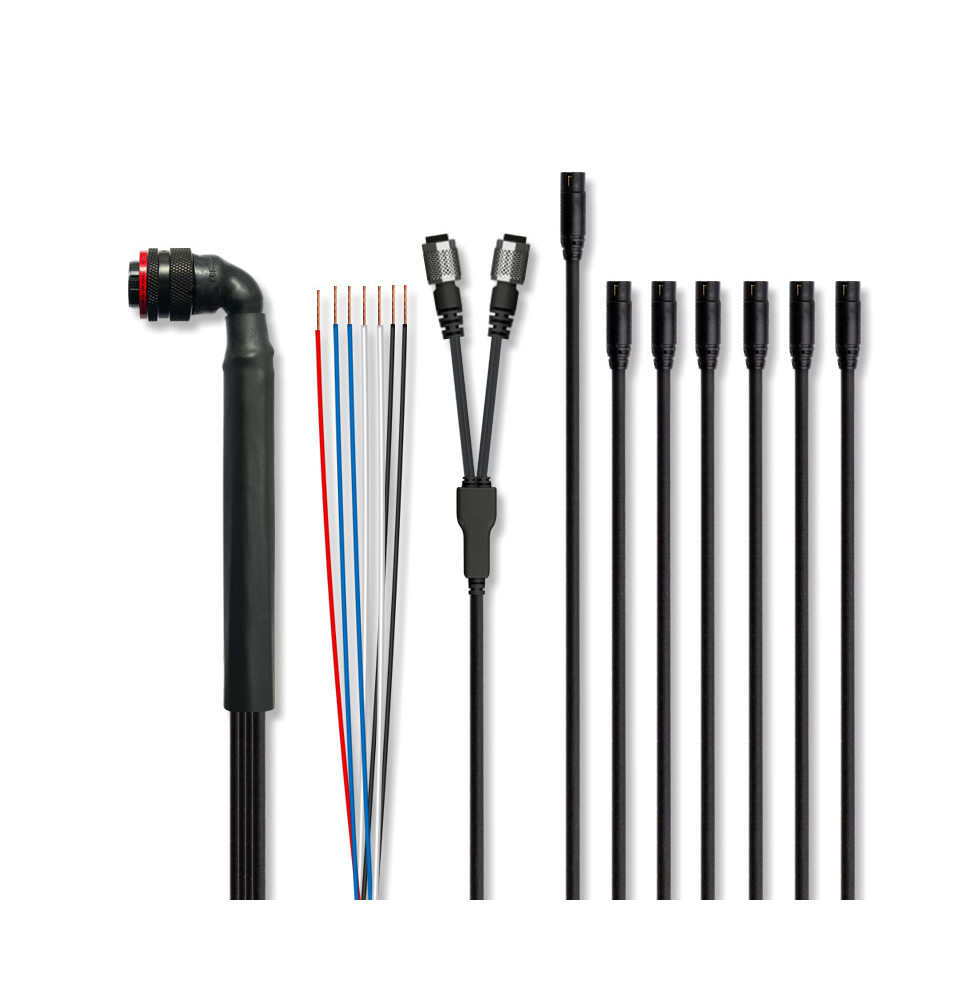

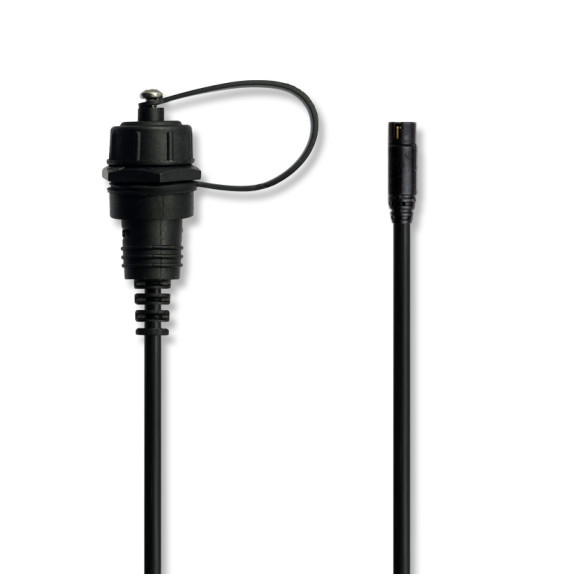

MXP 1.3, USB - Mini USB cable, Amphenol-Mini USB Adapter, 37 pins standard harness.
User manual & RaceStudio 3 software freely downloadable.
6" TFT display, resolution 800x480 pixels, contrast 600:1, 5 configurable RGB alarm LEDs, integrated 10 RGB LED shift light array, 2 Motorsport connectors + 1 Binder connector, 3 CAN connections, CAN, RS232, K-Line connection to 2,000+ industry leading ECUs, 8 analog/digital inputs at a max of 500 Hz each, 4 digital speed inputs, coil RPM input, lap signal input, 2 digital outputs, inertial platform, fully configurable math channels, 802.11 Wi-Fi connection, IP67.
In the box:

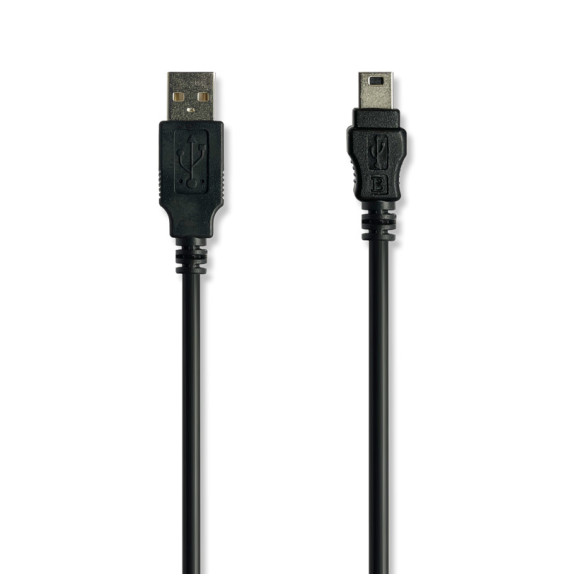

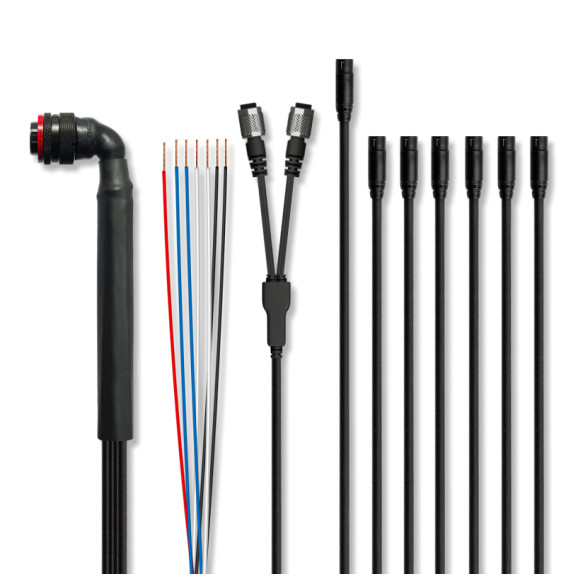

MXP 1.3, GPS09c with cable, USB cable, 37 pins standard harness.
User manual & RaceStudio 3 software freely downloadable.
