MXPS
Plug & Play Dash Logger for Suzuki GSX-R 1000*
*Suzuki GSX-R 1000 Years 2017-2022 Suzuki GSX-R 1000 R Years 2017-2022 Compatible with YOSHIMURA kit too
The dash logger specifically designed for
SUZUKI GSX-R 1000*
Just like the stock, with some plus
MXPS is the dash logger completely compatible with the original connector and with the original fixing points of your bike that gives you some more features for a tailored riding experience.
MXPS Dash Installation Tutorial
Dedicated Interface
Configurable layouts
MXPS features several configurable layouts and 2 themes both in light and dark mode for your needs in every situation, whether you are on track or riding down the streets.
With MXPS you can get the most out of your Suzuki, both on road and track!
Each element is designed to extend the huge potentiality of your bike, recording data to be downloaded and analyzed with our proprietary software RaceStudio Analysis 3. With the dedicated GPS09c, that comes with your MXPS, you may get your lap times and track data. Featuring a wide database of tracks, your dash logger will automatically recognize the track you are approaching, recording all the data coming from your ECU, as well as from the GPS.
Connections and expansions
Get the best out of your GSX-R 1000.
In addition to the main connection that gives you all the information from the ECU, MXPS provides you also:
EXP connection upgrades your bike with some of the best AiM expansions like GPS09c, Lambda Controller, Channel Expansion or even a SmartyCam 3 to record your ride. USB or Wi-Fi connection enables you to download data and configure your MXPS. Camera connection allows you to install a mirror camera. SDS+Analog connection gives you the possibility to read 28 ECU extra channels and 4 user defined analog inputs.
Do you want more? The Racing Kit is the answer!
As we have seen, the dedicated GPS09c, that comes with your MXPS, exponentially increases the capabilities of your bike. With the optional RACING KIT, composed by 4 analogic channels + K-Line harness and K-Line extension cable, the dash logger turns into a complete system with every feature you may need on track: basically you can read 28 extra channels coming from the ECU and connect up to 4 sensors for a precise setup regulation. Now you have total control of your GSX-R 1000, with the potential to drastically improve your performance.
RS 3 ANALYSIS
RaceStudio Analysis 3, where the data matters
RaceStudio Analysis 3 could bring you a step forward. Whether you are downloading your data via USB or Wi-Fi all the collected data ends up here. Graphs, histograms and tables will help you to analyze your track sessions, providing an objective support to avoid mistakes and improve performance.
Efficient and optimized user experience
MXPS benefits of a user-friendly menu, studied for an ease of use of every page.
Navigation and configuration of the dash is designed to be simple and clear.
Setting up your MXPS it’s just matter of riding-style: choose what perfect fits your road/track needs.
The complete menu allows you to easily modify every parameter of your bike: ECU maps, traction control, anti-wheeling, ABS and so on.
Expand the system, according to your needs
MXPS may even manage some CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tire temperature pyrometers, in order to gather even more specific data.
SmartyCam 3 cameras
The on-board cameras that overlays on videos the data sampled by your logger.
LCU1S Lambda Controller
Wide band Lambda controller with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.
Connection Example
In the Box:

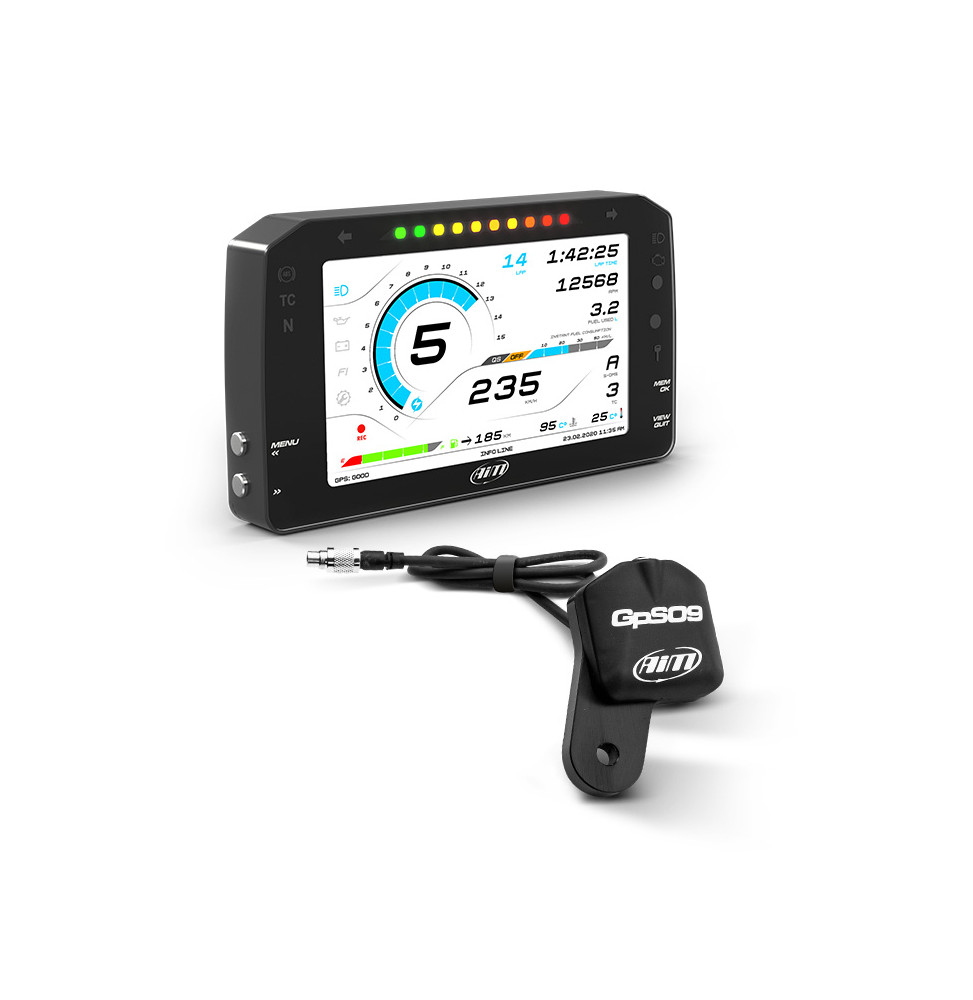

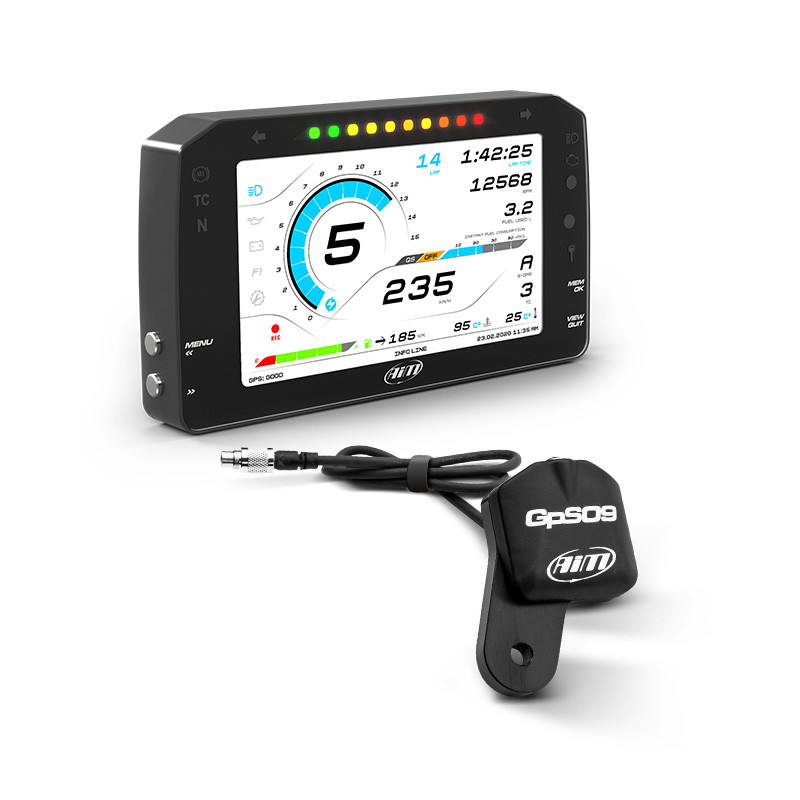

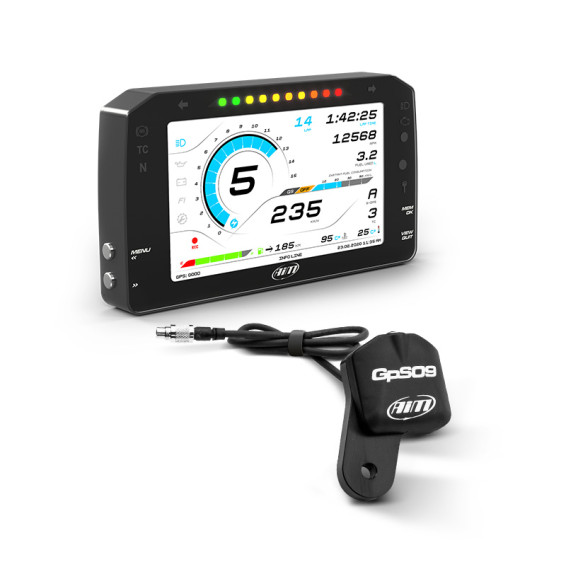

MXPS dash logger + dedicated 50 cm GPS09c + screw fixing kit
DOCUMENTATION
Previous
Next
MXPS

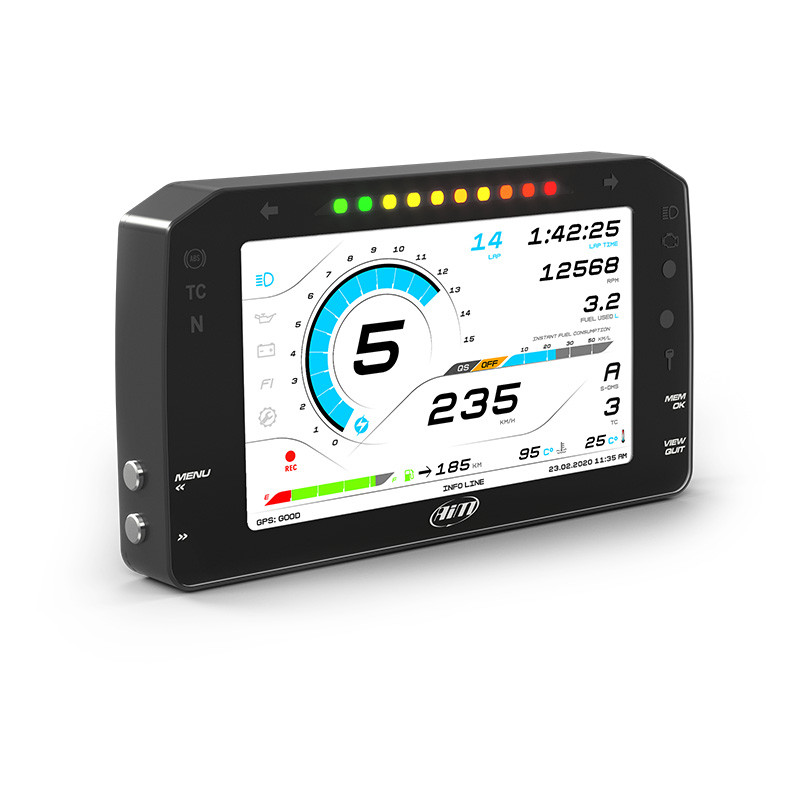

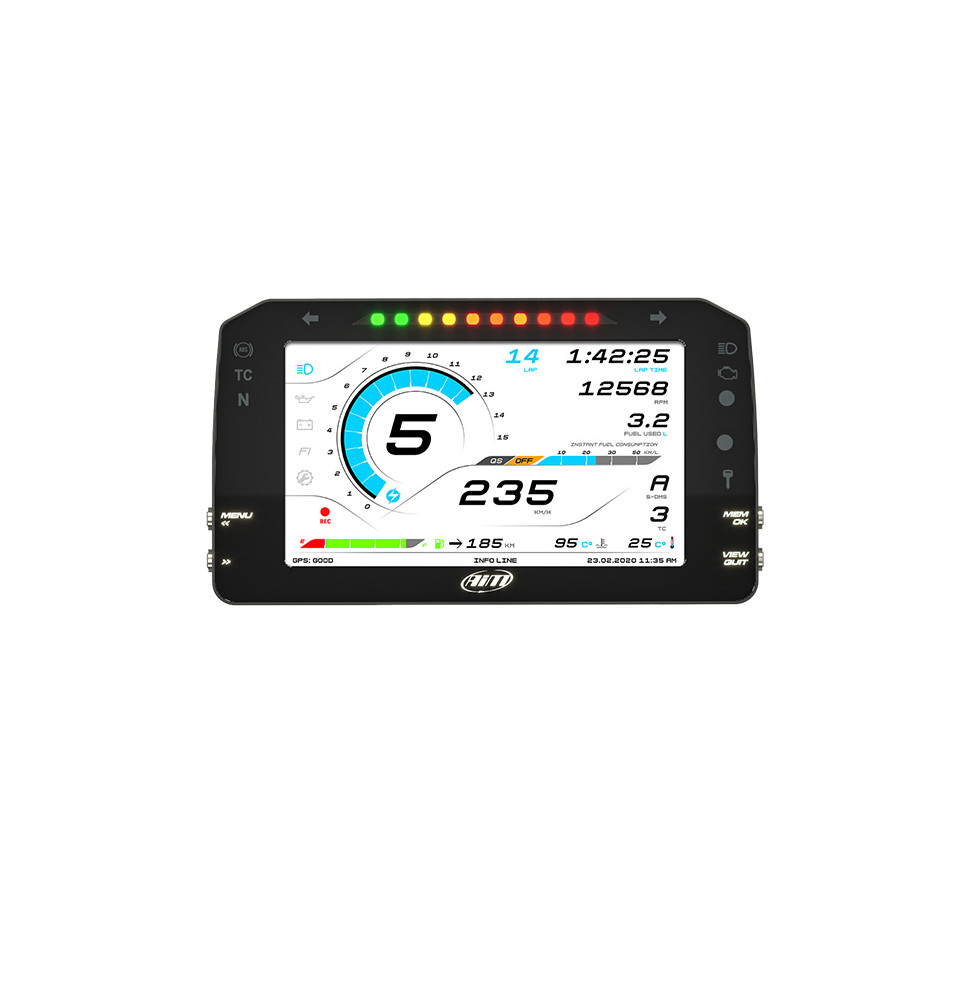

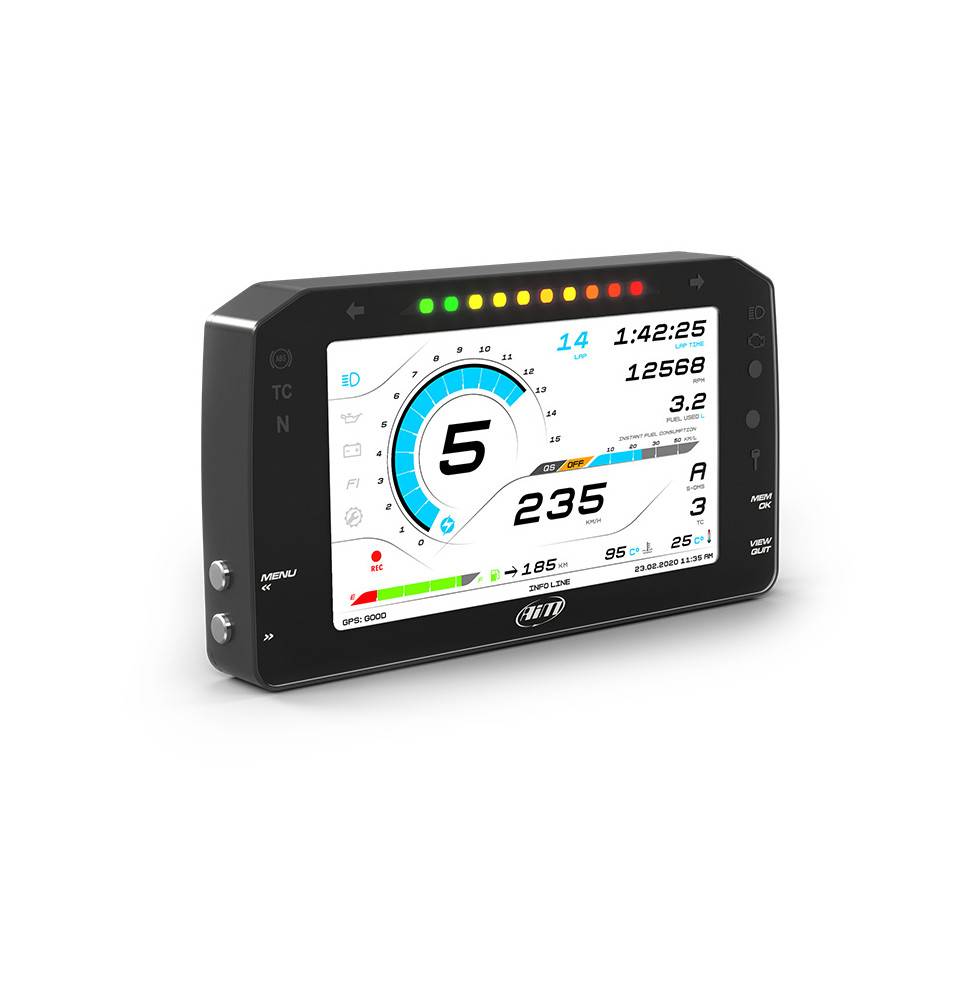

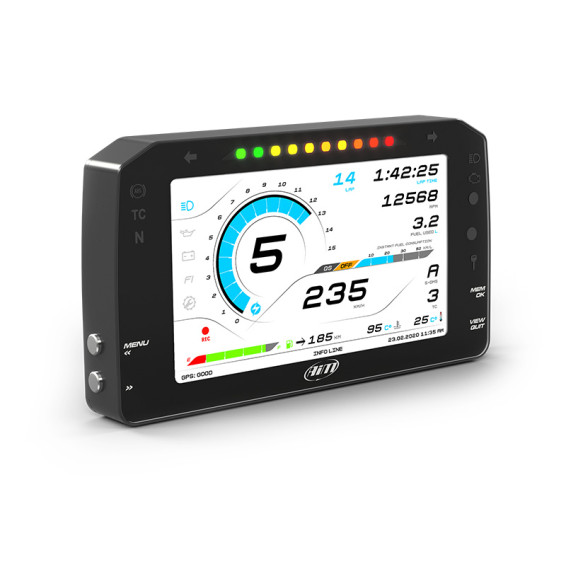

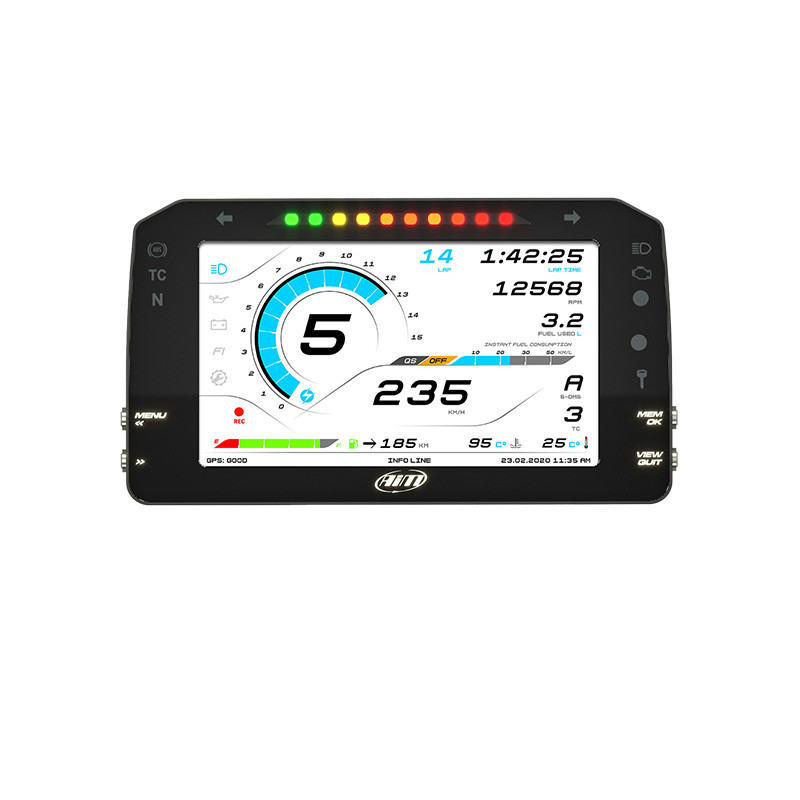

Plug & Play Dash Logger specifically designed for Suzuki GSX-R 1000 Years 2017-2022 and Suzuki GSX-R 1000 R Years 2017-2022, Yoshimura harness compatible, 6" TFT high contrast 1,100 Lumen display, 9 alarm LEDs, 10 shift lights LEDs, 2 CAN connections, 4 GB internal memory, anodized aluminum body, 1 32 pins JAE main connector + 4 Binder 712 female connectors, IP65.
€1,220.00
Tax excluded
- Estimated delivery date:
-
Express - Buy today and receive it Tuesday 29 July, 2025
