GT32 Standalone Highlights:

Buttons and rotary switches are reconfigurable, they can be momentary, toggle and multi-status, 2 pushbuttons are in free contacts. RGB LEDs are programmable, backlighted frame and icons could be continuous or blinking, paddle shifters trasmit in CAN messages and free contacts.

In the box:

GT32 Standalone, pushbuttons icons set (19 pcs), rotary kit (3 pcs), USB 2.0 A-Type C-Type 200 cm cable, optional paddle shifters and GT32 Harness Open. User manual RaceStudio 3 software freely downloadable from AiM web site.

Standalone Electronic Steering Wheel

Main features

GT32 Standalone steering wheels transmit in a freely configurable CAN connection the status of 8 pushbuttons and 3 rotary switches plus more 2 pushbuttons in free contacts connections. It features also 2 (optional) carbon fiber paddle shifters with a precise magnetic system.

Highlights:
Buttons and rotary switches

Reconfigurable
Momentary, toggle and multi-status
2 pushbuttons in free contacts

RGB LEDs
Programmable Frames and icons backlighted
Continuous + 2 blinking mode

Paddle shifters (optional)
CAN messages and free contacts

Connection
ECU CAN

ON/OFF feature
Status restore option

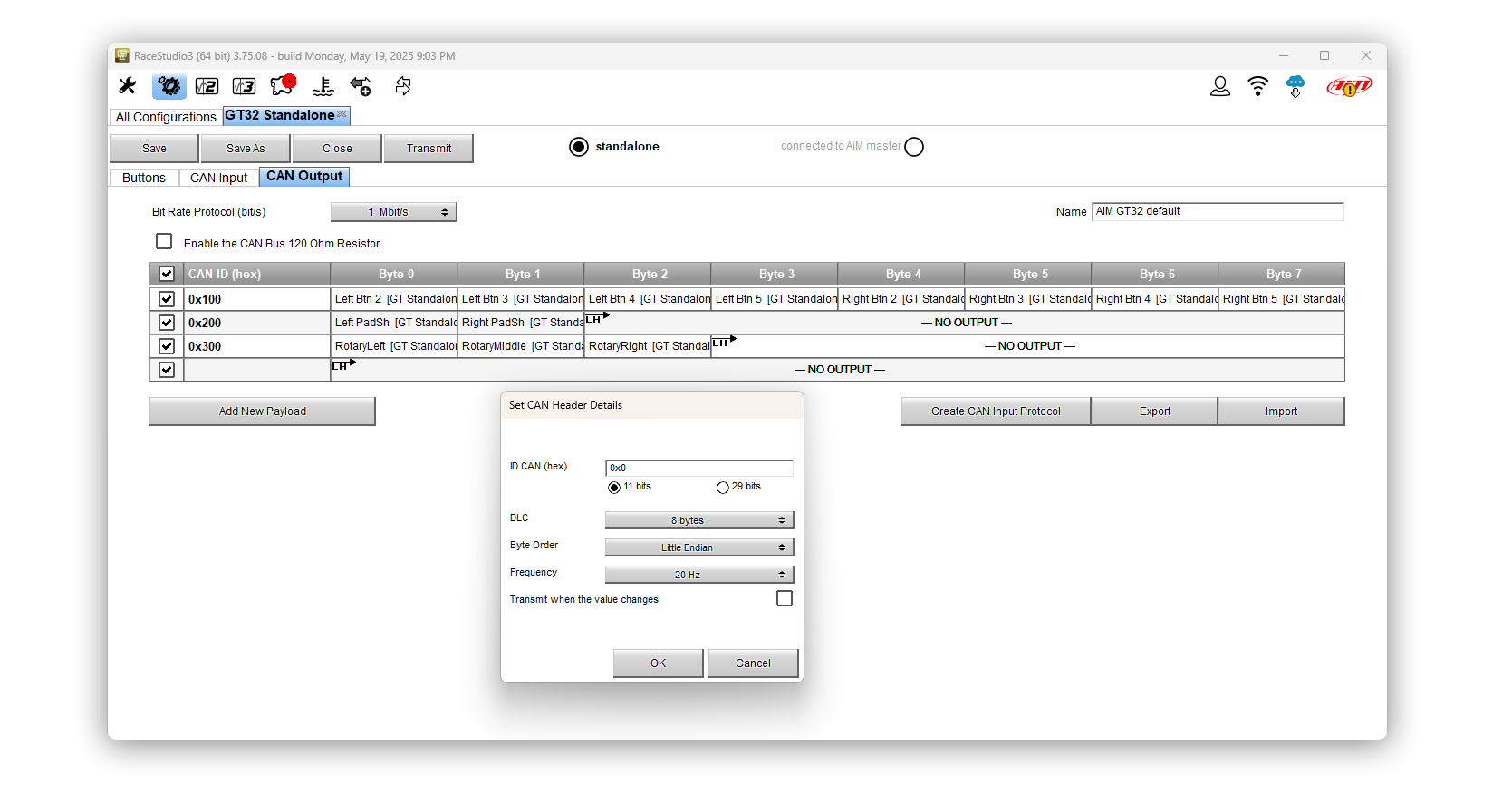

Thanks to the RaceStudio 3 software, you can easily program your GT32 according to your needs via PC through the USB-C connection.

You will be able to create different conditions for every buttons status and set up the brightness of the LEDs having immediate feedback in the heat of the competition.

Pushbuttons configuration

The RGB LEDs behind all 10 pushbuttons plus back-lit multi-position switches are designed to instantly find the right input even in the most intense moment of the race.

Every single LED can be fully programmed via RaceStudio 3; they can work as momentary, toggle or multi-status and each option can be configured depending on the length of time the button is pressed or on other user-predetermined conditions according to specific needs.

MOMENTARY
The pushbutton status is ON when the pushbutton is pushed.

TOGGLE

The pushbutton status changes from ON to OFF every time the pushbutton is pushed.

MULTI-STATUS

The pushbutton value changes from 0 to a MAX value every time the pushbutton is pushed.

GT32 Standalone

SKU X07GT32OHP Category Steering Wheels

GT32 Standalone steering wheel transmits in a freely configurable CAN connection the status of 8 pushbuttons and 3 rotary switches plus more 2 pushbuttons in free contacts connections.

GT32 Standalone can be connected via CAN to every ECU and masters.

It features also 2 carbon fiber paddle shifters with a precise magnetic system.

The Steering wheel can be easily configured with RaceStudio 3 software via PC through USB 2.0 A-Type C-Type 200 cm cable included.

More Info

Icons set included:

Pushbuttons Icons

Harness Open

Paddle Shift
