Quick View
The Compact Analog CAN Converter for everyone
ACC3 Open manages up to 4 analog inputs to a max frequency of 1000 Hz each:
- Thermocouples
- Thermoresistances
- 0÷5 V
- 0÷12 V
Digital Speed Inputs
ACC3 Open manages 2 speed inputs at a maximum frequency of 10 kHz.
SENSORS CONNECTIONS
Split Harnesses
ACC3 Open can manage many different sensors, from thermocouples to sensors whose output is 0÷12V.
Please, note that the thermocouples require dedicated compensated cables, so different kits and different harnesses are available.
CHANNEL CONFIGURATION
Once the proper split harness has been chosen between the available range, you can configure the channels according to the kind of sensor you connect to the converter. ACC3 Open support up to four K type thermocouples to manage the temperatures.
EASY CAN CONFIGURATION
Every OPEN device can be connected to a PC via a dedicated USB cable

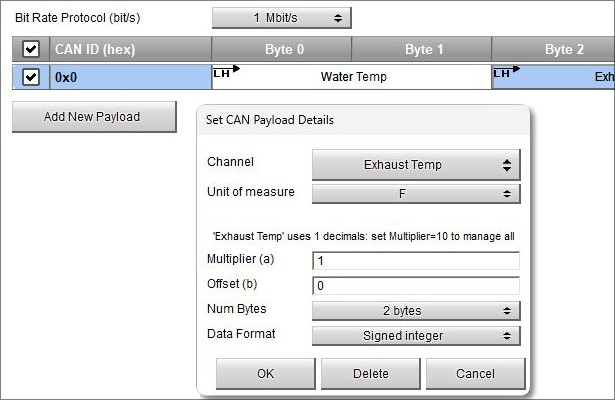

CAN OUTPUT
ACC3 Open allows to build a CAN Output to communicate with external devices. You can set bit rate protocol, field messages and CAN payload details. The converter can also be used as an AiM Expansion, without any issues or limitations.
In the box: ACC3 Open, Split Harness and CAN Open cable in the choosen versions.
System Configuration example

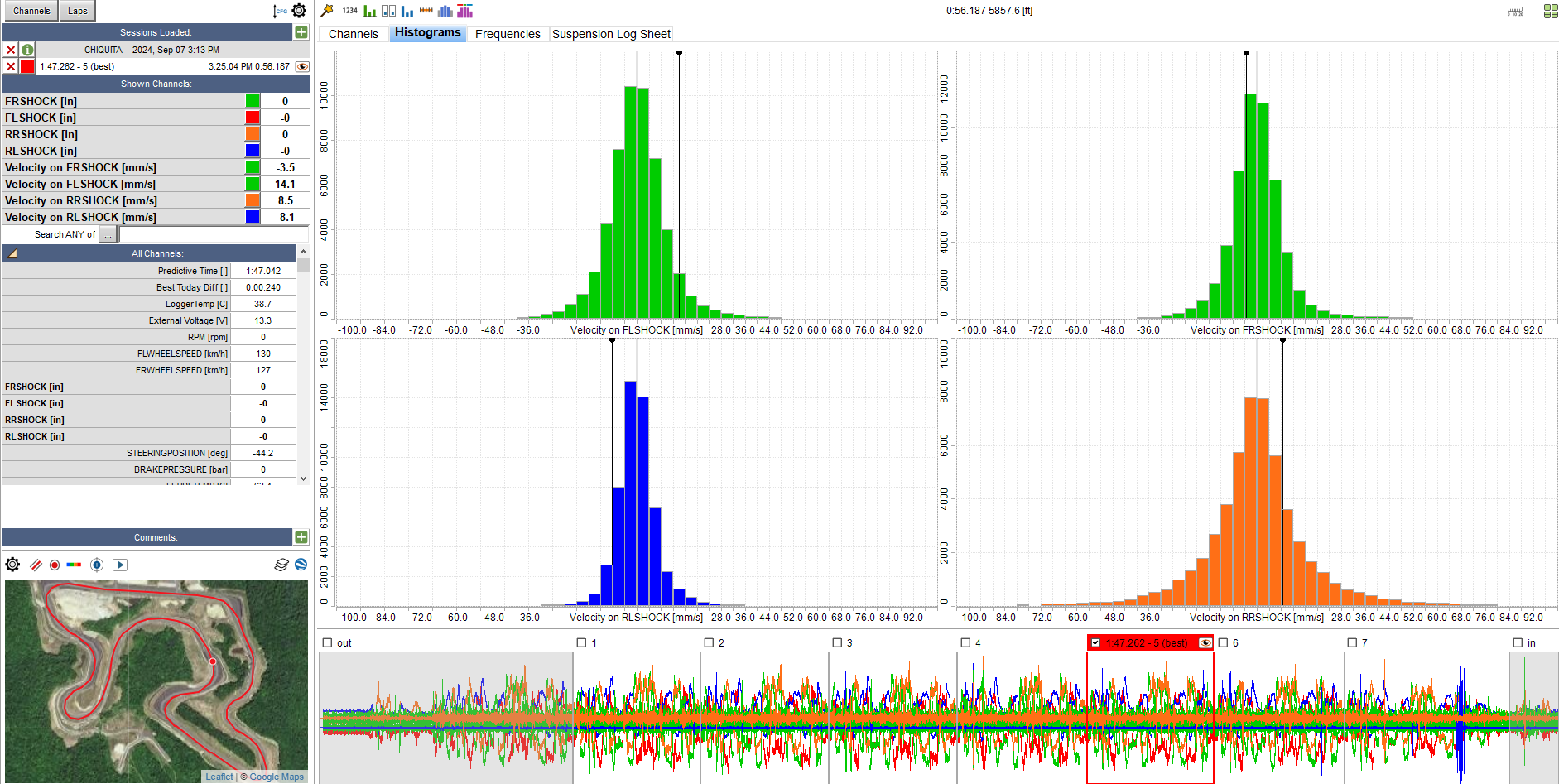

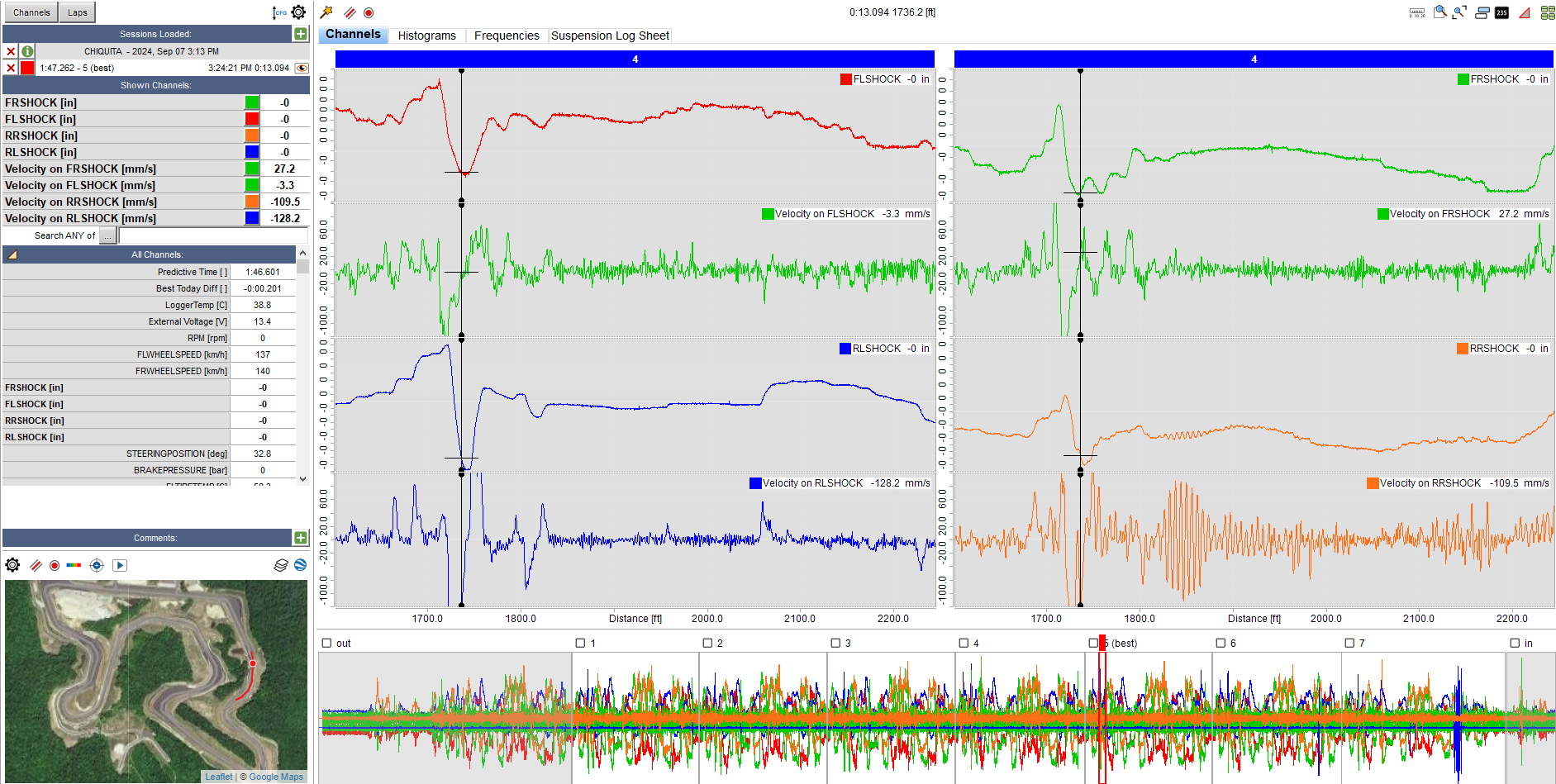

SUSPENSION ANALYSIS
ACC3 and ACC3 Open can be connected to Eclipse sensors.
All the acquired data by AiM linear potentiometers can be managed through the new Suspension Analysis Tool in RaceStudio 3 , for an even more complete performance analysis software.
Previous
Next
Roger Caddell Free Online Webinar about ACC, the first version of ACC3.
Roger Caddell Free Online Webinar about Open Systems.
Previous
Next
ACC3 Open
ACC3 Open is the compact Analog CAN Converter by AiM
The device manages 4 analog inputs to a max frequency of 200 Hz each and thanks to the dedicated split harness, the managed inputs are: thermocouples, thermoresistances, 0-5 V Signal, 0-12 V Signal, 0-12 V Signal, 2 Digital speed inputs
ACC3 Open is freely configurable through "Open USB harness", using the AiM software RaceStudio 3.
NOTICE - "Open USB harness" sold separately.
Split harness
Harness
