MX LCD Series
The compact and easy-to-use LCD Dash Loggers for Motorsport
Designed for every racer

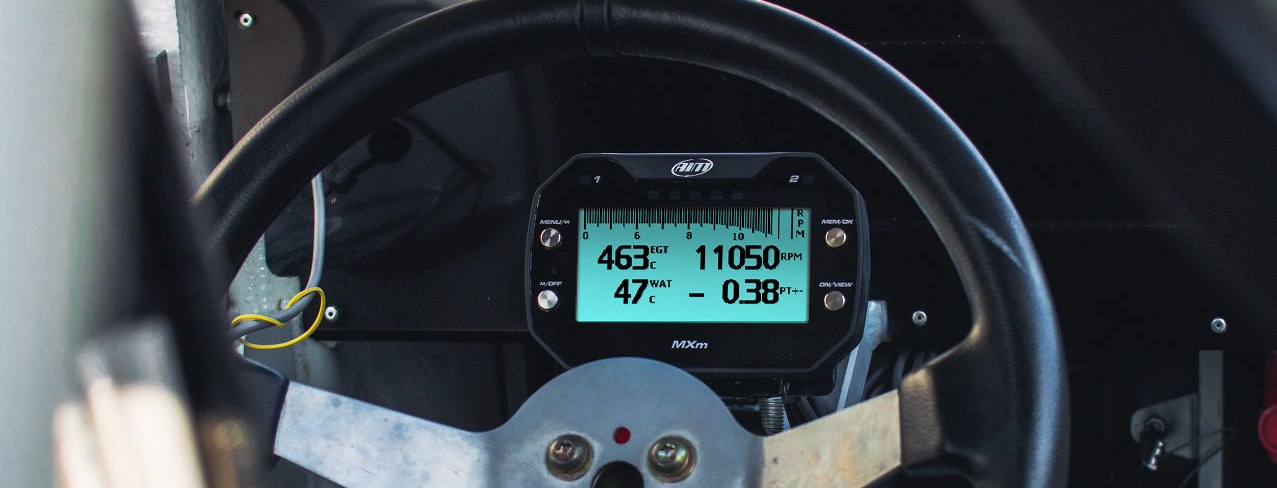

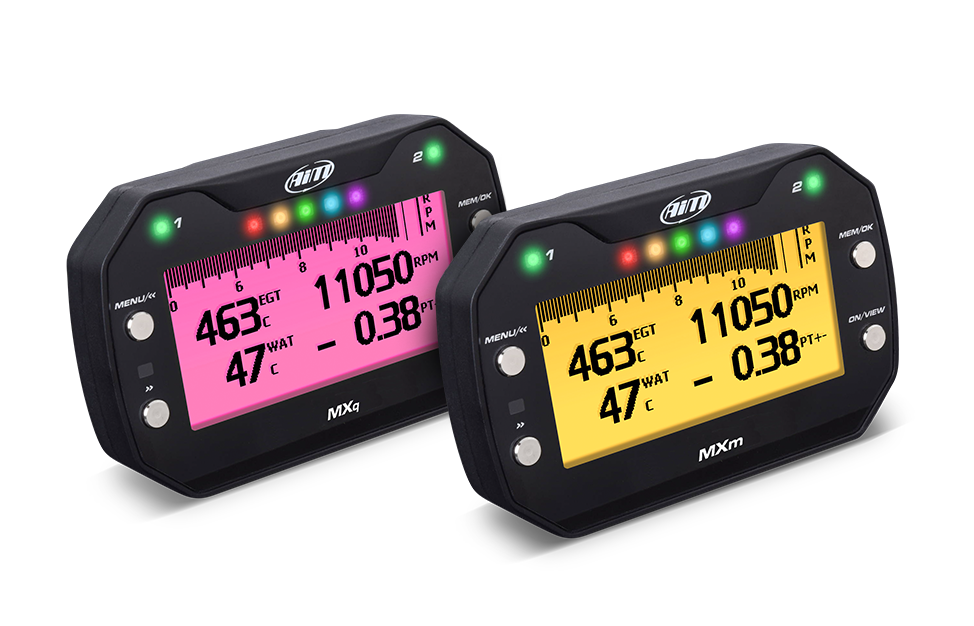

The MXm and MXq dash loggers are comprehensive data acquisition systems that provide essential information for racers.
They sample and display critical parameters such as speed, lap times, RPM, and gear, while also featuring multiple configurable math channels. MXm and MXq are the perfect devices for both Pro and Amateaur racers.
MXm VS MXq
Both devices share a core set of features, with the only differences being the number of fully configurable analog inputs and the specific count of digital inputs and outputs.
Technical Specification
MXM |
MXQ |
||
| Display resolution | 268 x 128 pixels |
||
| Backlight | 7 configurable RGB colors |
||
| Ambient light sensor | Yes |
||
| Shift Lights | 5 configurable RGB LEDs |
||
| Alarm LEDs | 2 configurable RGB LEDs |
||
| CAN connection | 2 |
||
| ECU connection | CAN, K-Line, RS232 |
||
| Inertial platform | Internal 3 axis ±5G accelerometer + 3 axis gyro |
||
| GPS | Integrated |
||
| External modules | Lambda Controller, ACC3, GPS09c, SmartyCam 3 |
||
| Analog inputs | 4 fully configurable, max 500 Hz each |
1 fully configurable, max 500 Hz |
|
| Digital inputs | 2 speed inputs Low level coil RPM input, 0-5 V square wave |
Low level coil RPM input, 0-5 V square wave |
|
| Digital outputs | 2 high-side |
-- |
|
| Wi-Fi connection | Yes |
||
| Internal memory | 4 GB |
||
| Body | PA6 30% glass |
||
| Pushbuttons | Metallic |
||
| Connectors | 37 pins Motorsport + 4 pins power connector |
3 Binder connectors |
|
| Dimensions | 137.0 x 88.4 x 31.9 mm |
||
| Weight | 330 g |
||
| Waterproof | IP65 |
||
A wide range of data sources
AiM dashes and dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.
CAN, K-LINE and RS232 ECU Connection

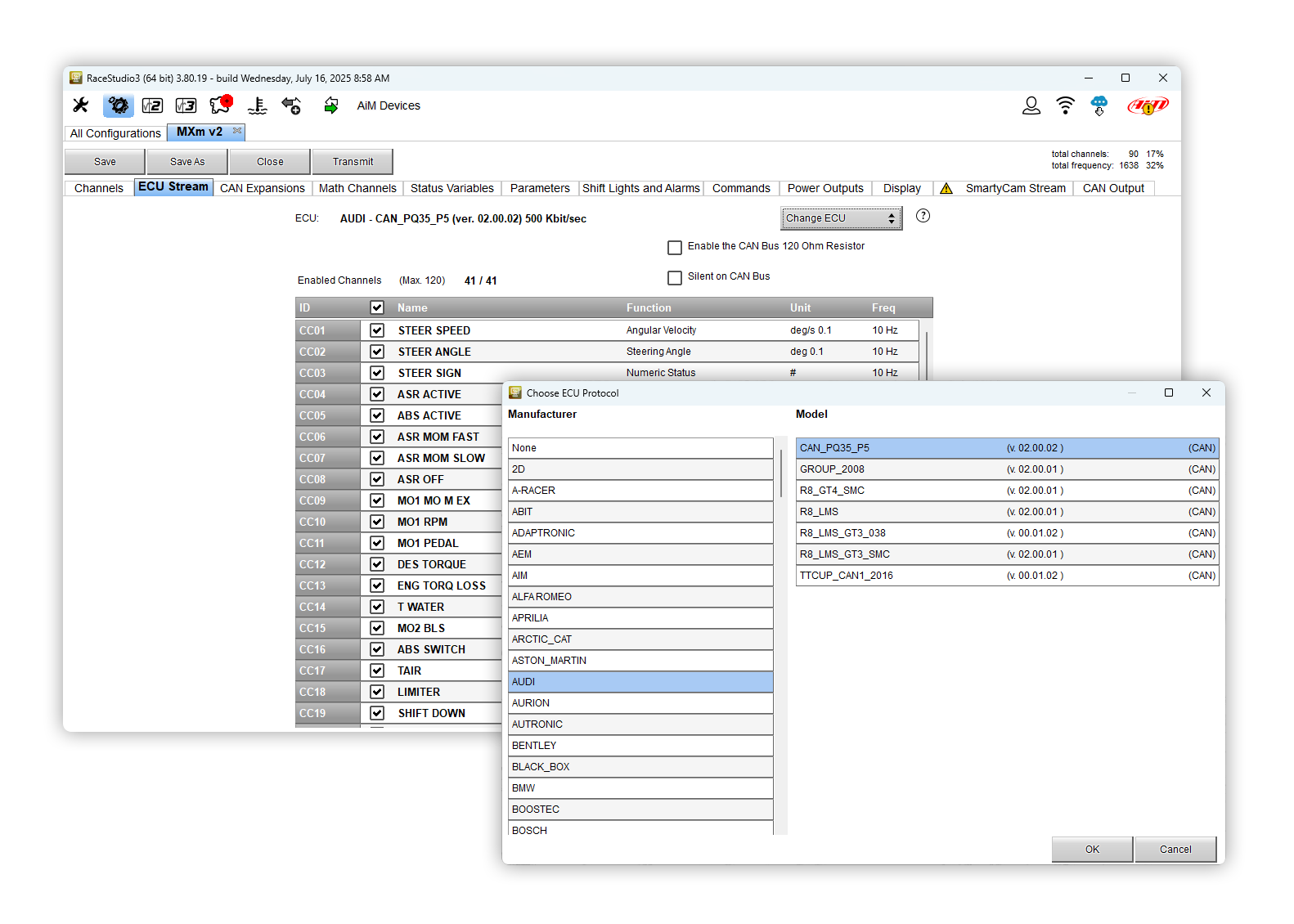

MX LCD Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes more than 2,000 ECU protocols.
Tracks
With more than 4,000 tracks in database, the integrated GPS recognizes the track you are racing on and automatically starts sampling lap times.
Thanks to Track Manager function of RaceStudio 3, tracks can be created, deleted and modified, transmitted and received to/from MX Series.
LAP TIME MANAGER
MX systems calculate lap times and record data, track name and time of the test making your life easier when you analyze your data. In case the track is not in the database, no problem: MX dash loggers automatically understand the characteristics of the track and give the lap time anyway.
Position and speed on track
MX LCD dash loggers offer exceptional accuracy, achieving sub-0.5 meter precision by leveraging four satellite constellations. They also provide high-frequency data sampling at 25 Hz.
Inertial Platform

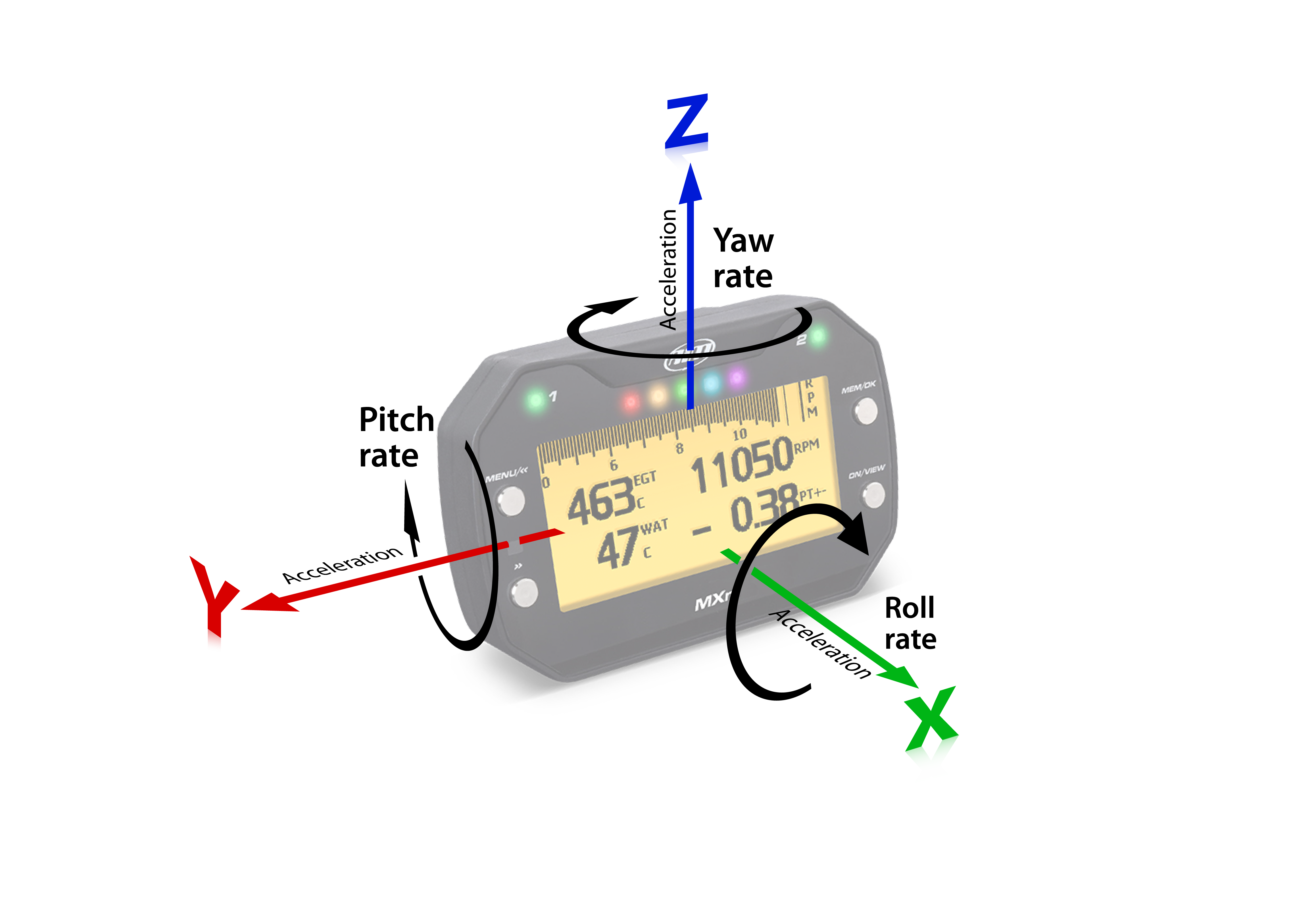

3D accelerations and gyro - the inertial platform at 100 Hz - gives the possibility to calculate roll, pitch and yaw.
Integrated Shift Lights and Alarms

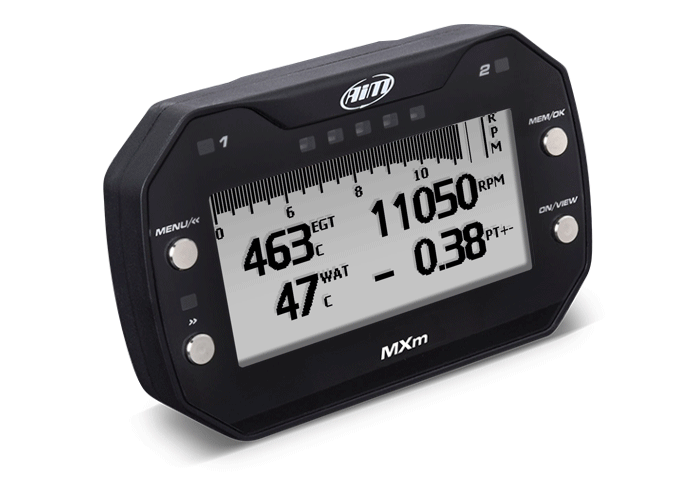

MX LCD Series feature a 5 LED shift light array. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. The devices also feature two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency.

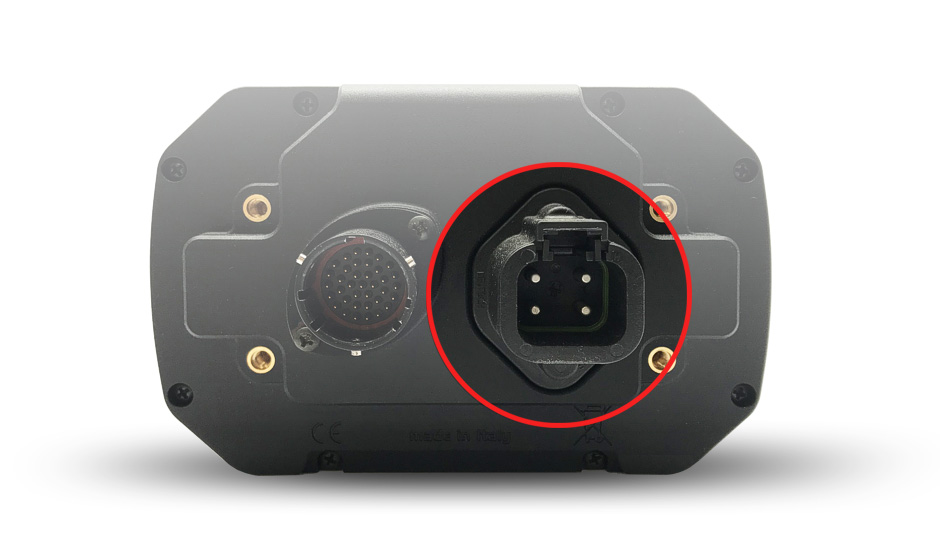

Two Power Outputs for MXm
MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

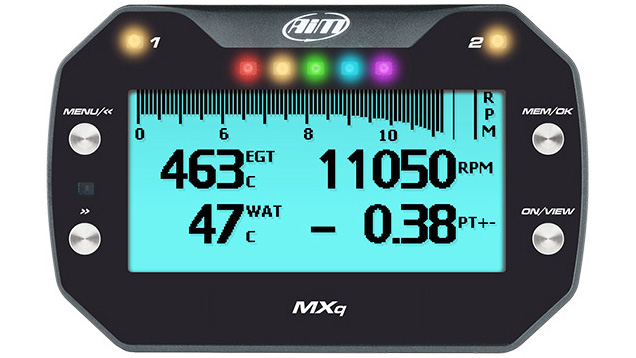

Sharp Liquid Cristal

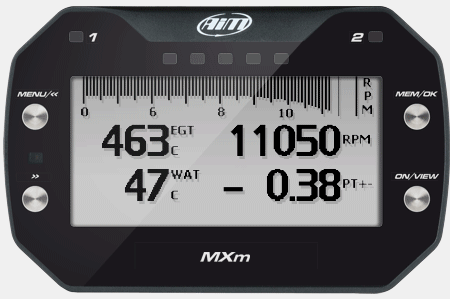

MX LCD Series feature a high contrast LCD display, with an outstanding black to white ratio. The wide 268x128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels.

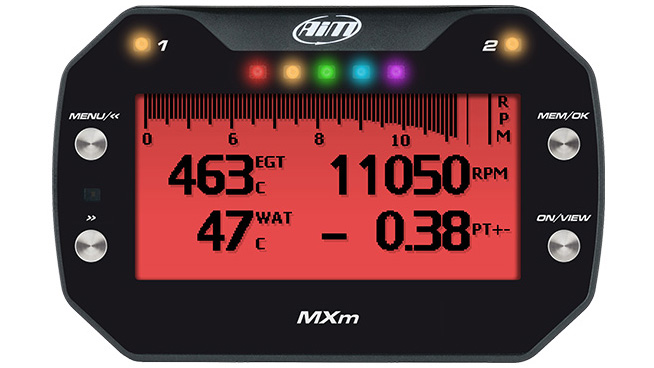

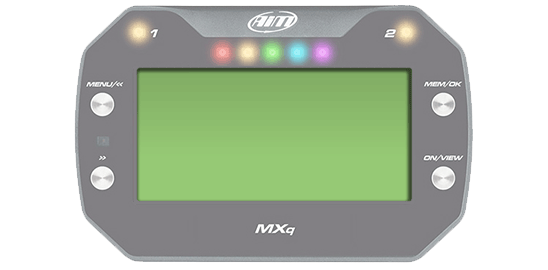

The screen can be backlighted in one of the seven available colors:
Data Recall on Screen

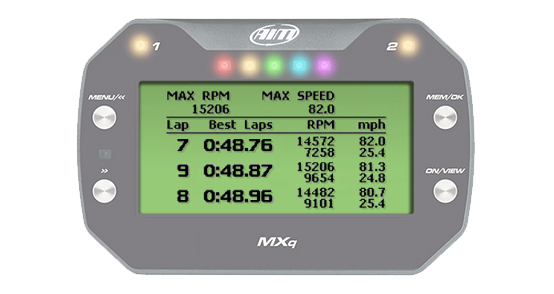

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.
Choose your own Data Layout
You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.
WI-FI connectivity

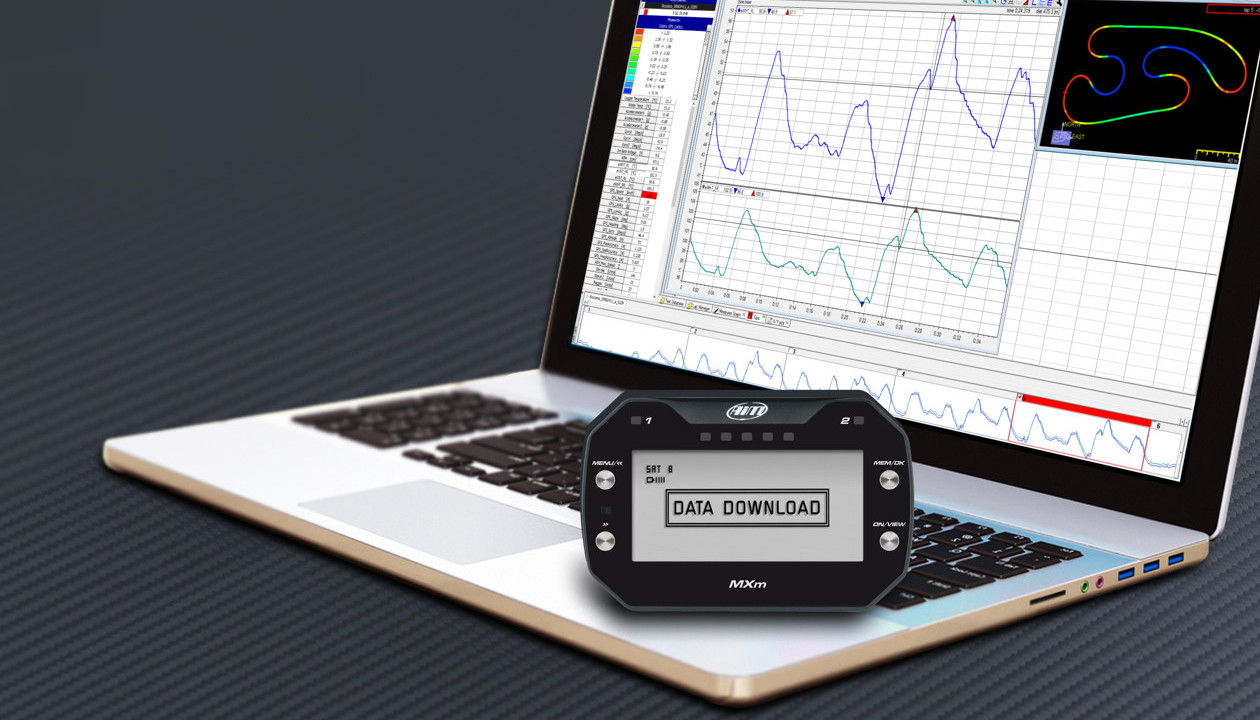

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 Wi-Fi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.
Expansion
MXm and MXq can be connected to a lot of AiM expansions like GPS09c, ACC3 and LCU1S to get the best from your engine and - with AiM SmartyCam 3 family - to see your track performances on your PC with all the values you need in overlay.
.jpg)
THE POWERFUL SOFTWARE
RaceStudio 3 is the heart of MX LCD series, managing all your activities related to:
CONFIGURATION
With RaceStudio 3 you can create, modify, delete, import and export configurations of:
- All channels
- ECU drivers
- Math channels
- Display pages
- Digital outputs
- Alarms
- Shift lights
- Expansions
Analysis
In RaceStudio 3 you can also analyze all data recorded by MX LCD dash loggers and downloaded to your PC.
Graphs, histograms and tables will help you studying your performance, providing an objective support to avoid mistakes and improve your performance as well as tuning the engine and adjust the setup of your vehicle.
You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam 3 cameras.
Free Online Webinars
Since 2020 our teacher Roger Caddell holds informative webinars and creates tutorials.
AiM Sports LearnFast™ webinars on AiM Sports YouTube channel are completely dedicated to helping you understand data and/or video system and to support you using AiM software.
With tons of tutorials available you will be better equipped to start using data in order to achieve your racing goals.
