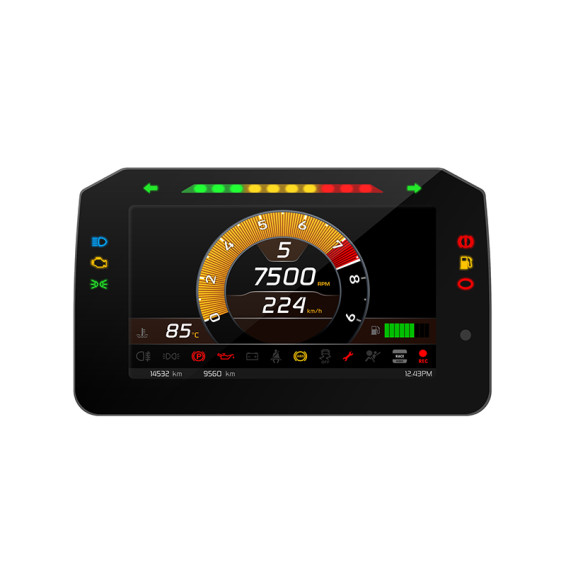

MX2E
RIDE LIGHTER, READ CLEARLY, GO FASTER
The Plug & Play Dash Logger kit specifically designed for
Lotus Elise/Exige
Model years 2004-2007 (version with airbag only)* 2008-2010 and 2011-2020
(only compatible with Toyota engines)
* An adapter harness is required

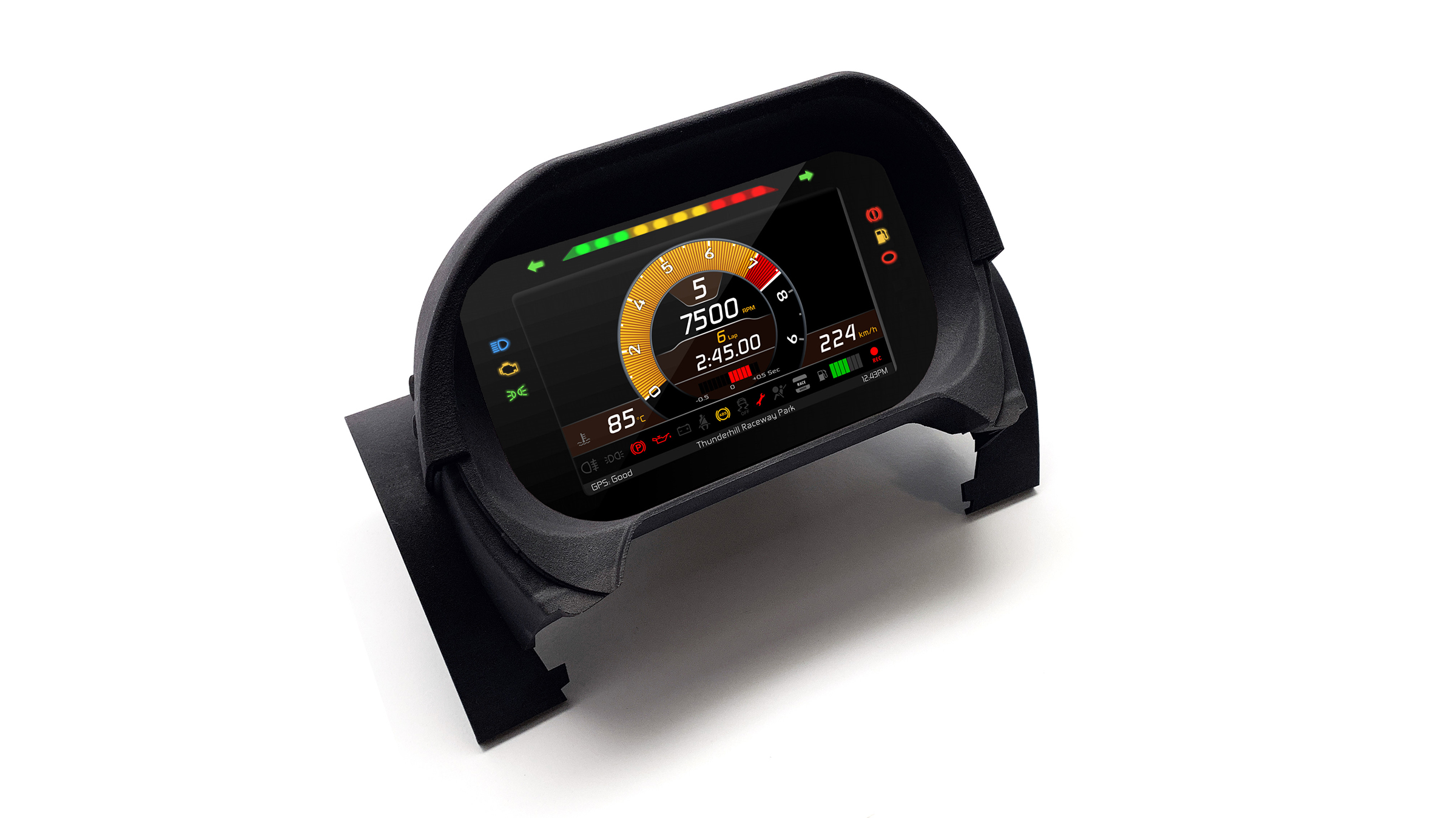

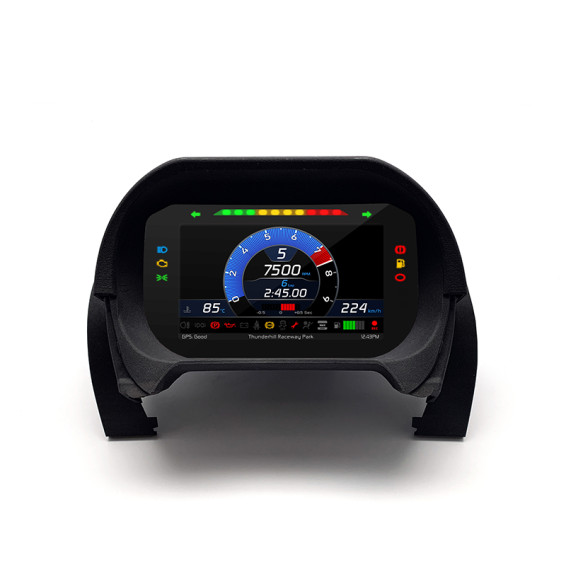

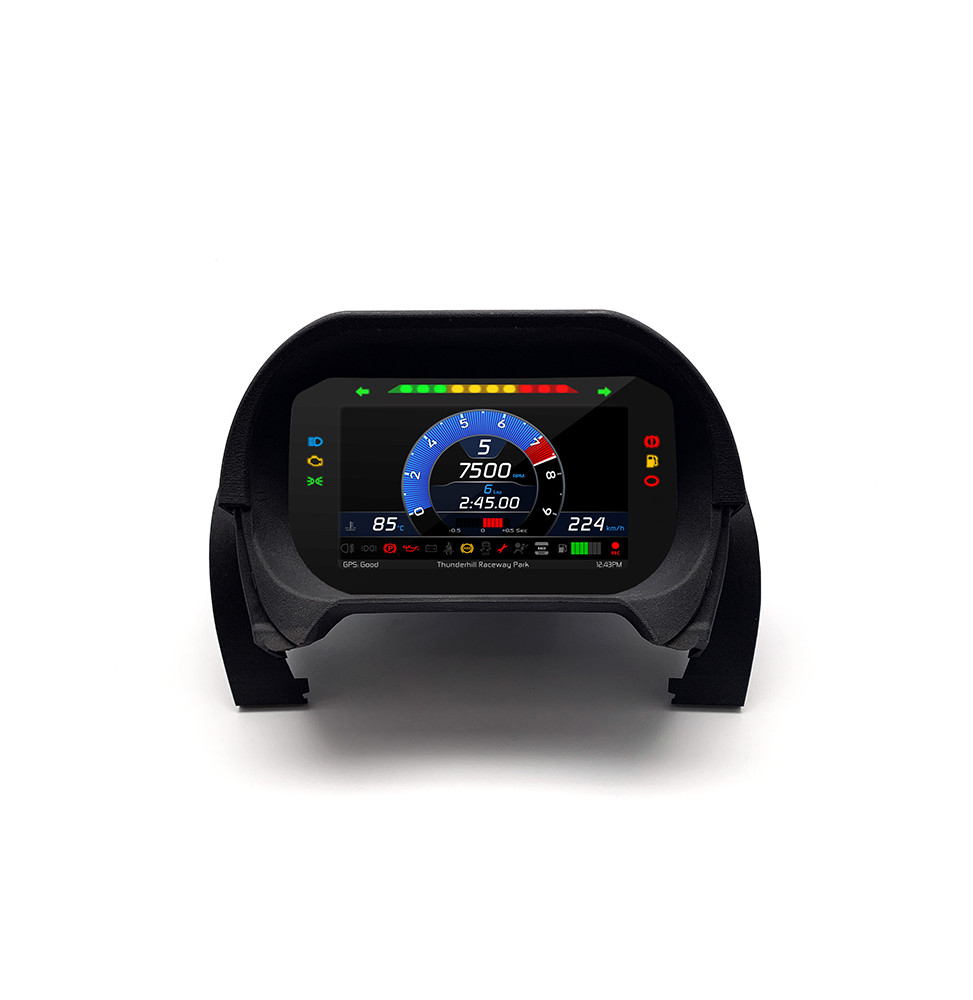

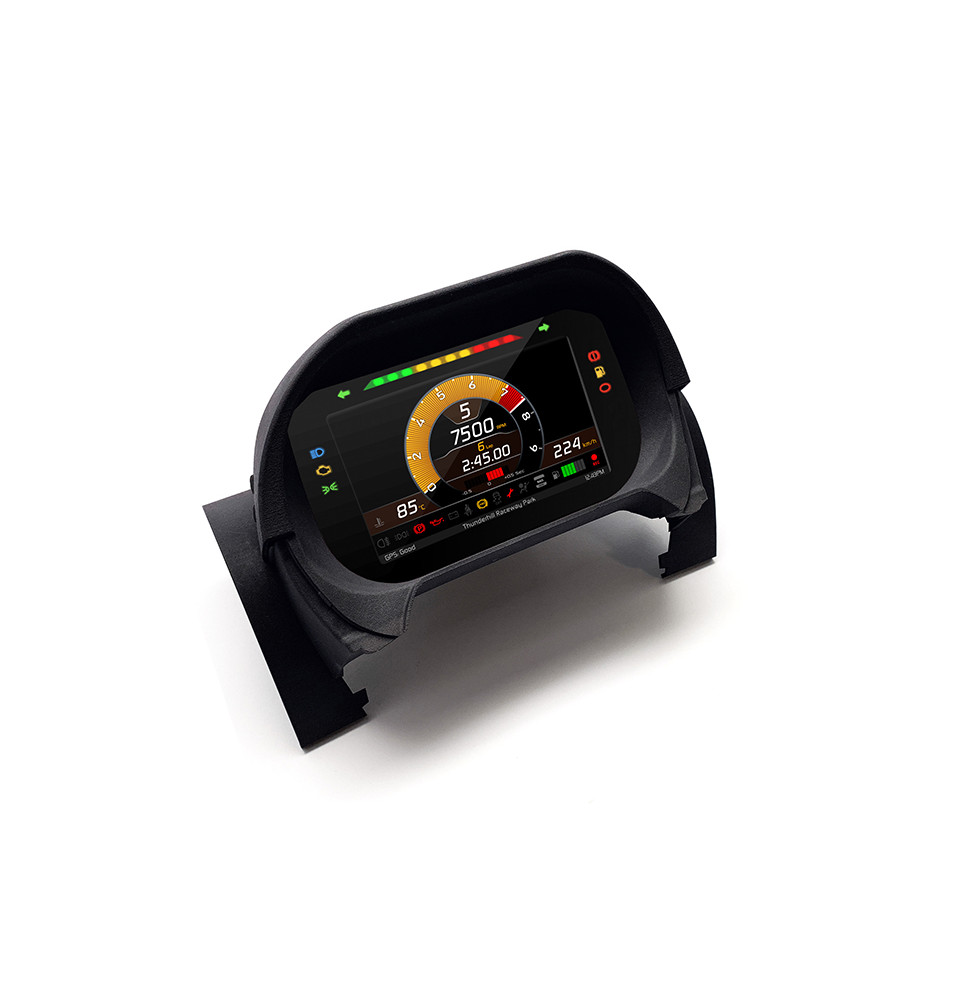

Full Plug & Play Dash Logger Kit

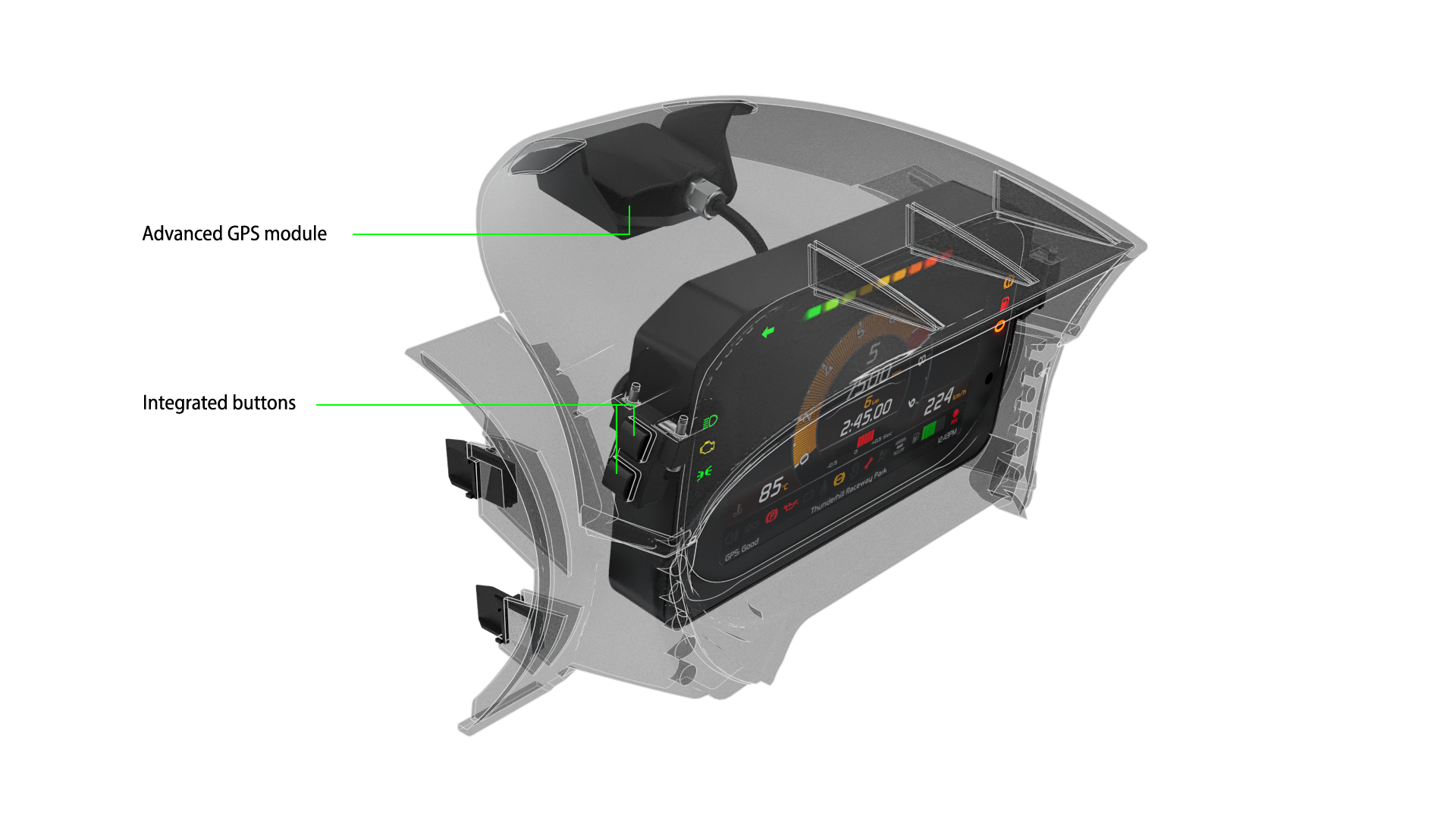

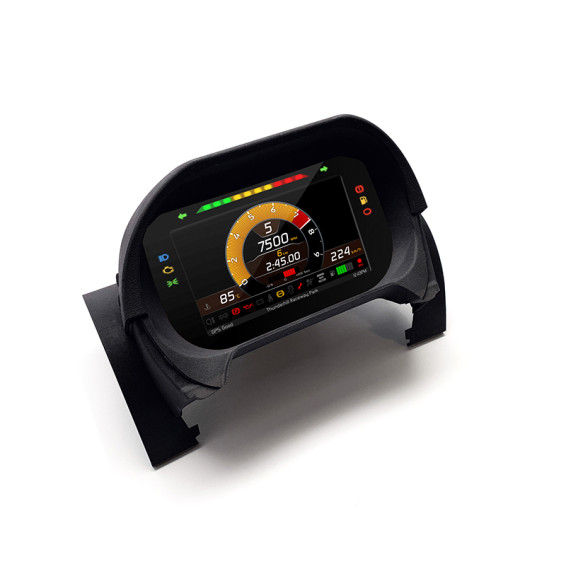

Featuring an ad-hoc engineered cluster in the kit, with four integrated buttons, MX2E is designed to be easily installed on Lotus Elise/Exige (models are shown above) and it’s fully Plug & Play.

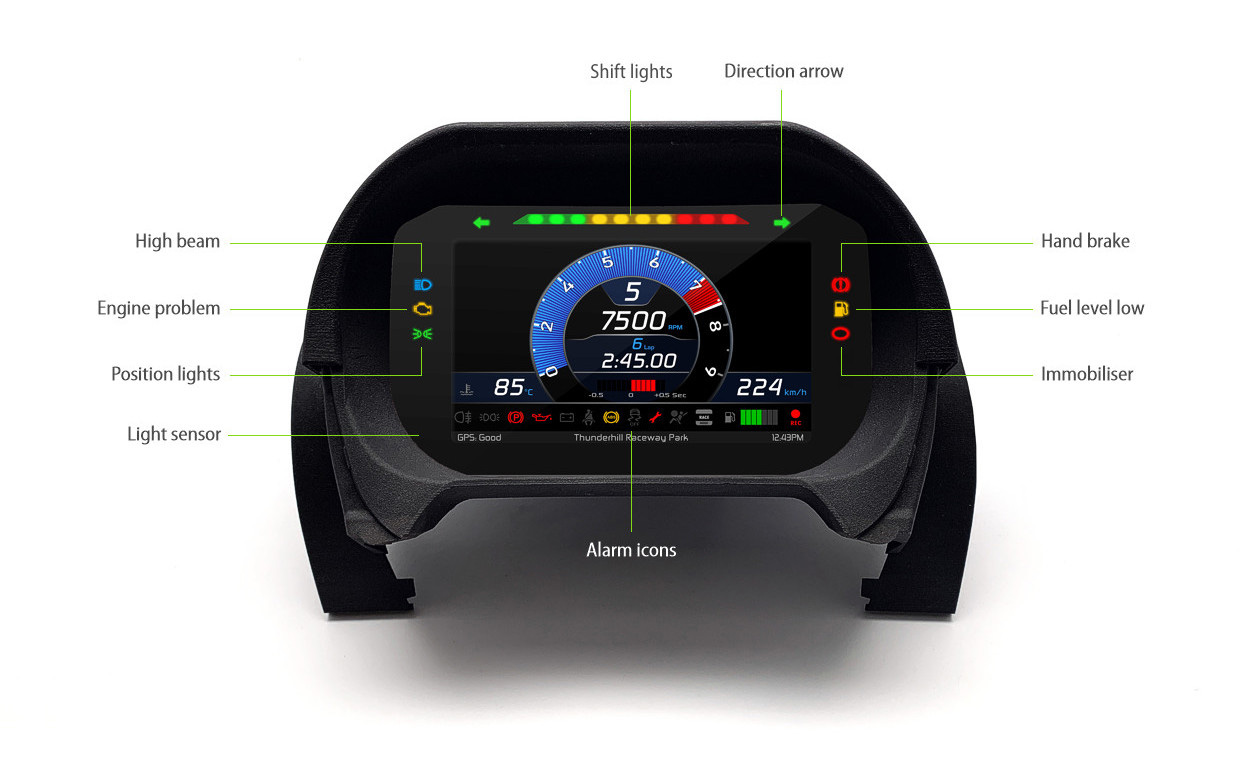

Everything Right Under Control

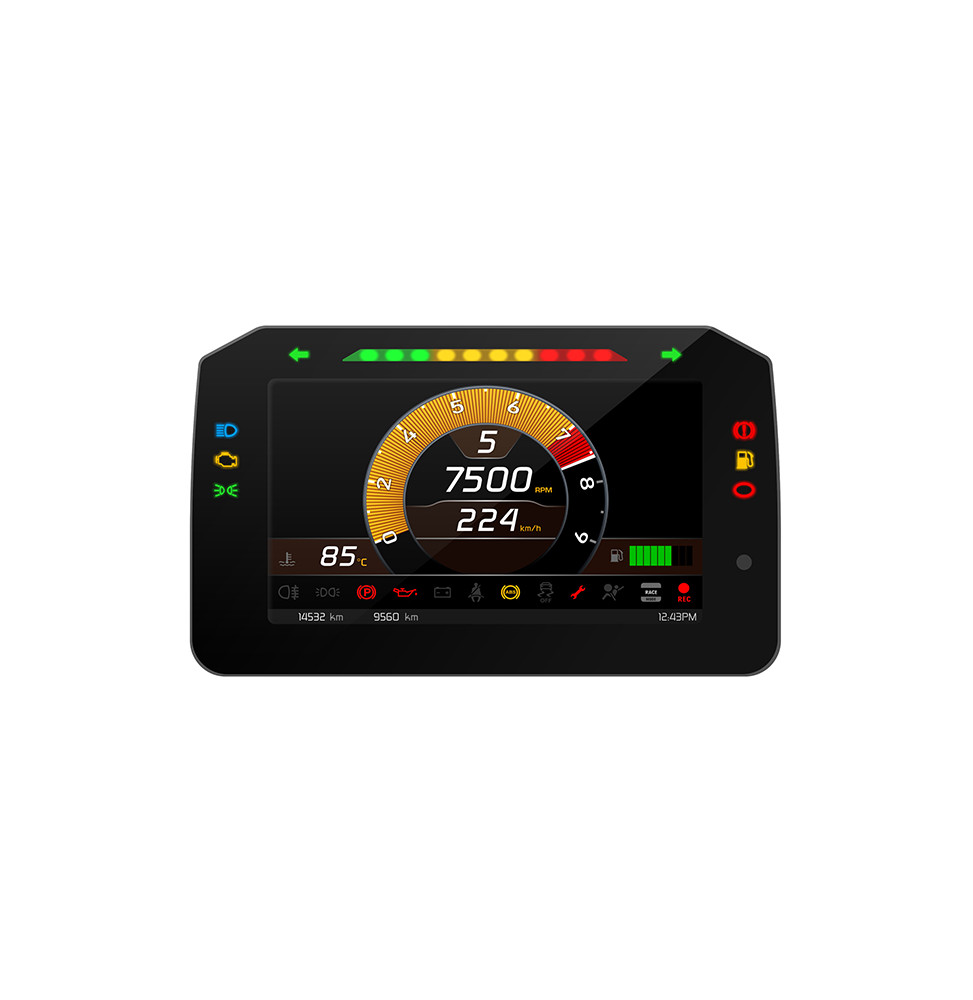

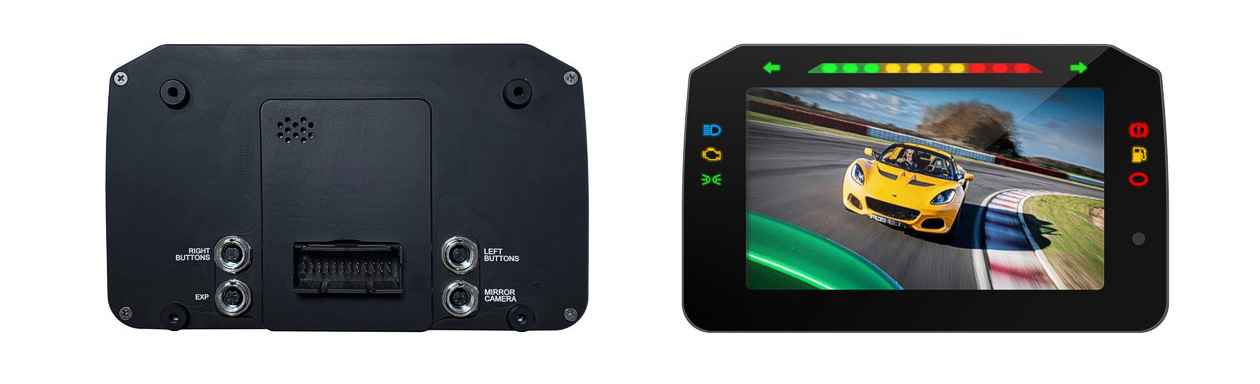

- High contrast 6” TFT display 800x480 pixels
- 18 integrated LEDS (10 shiftlights, 6 status information LEDs, 2 turn indicators)
- 14 digital switch inputs
- 4 integrated buttons in cluster
- CAN bus ECU interface
- Rear camera input
- Wi-Fi connectivity

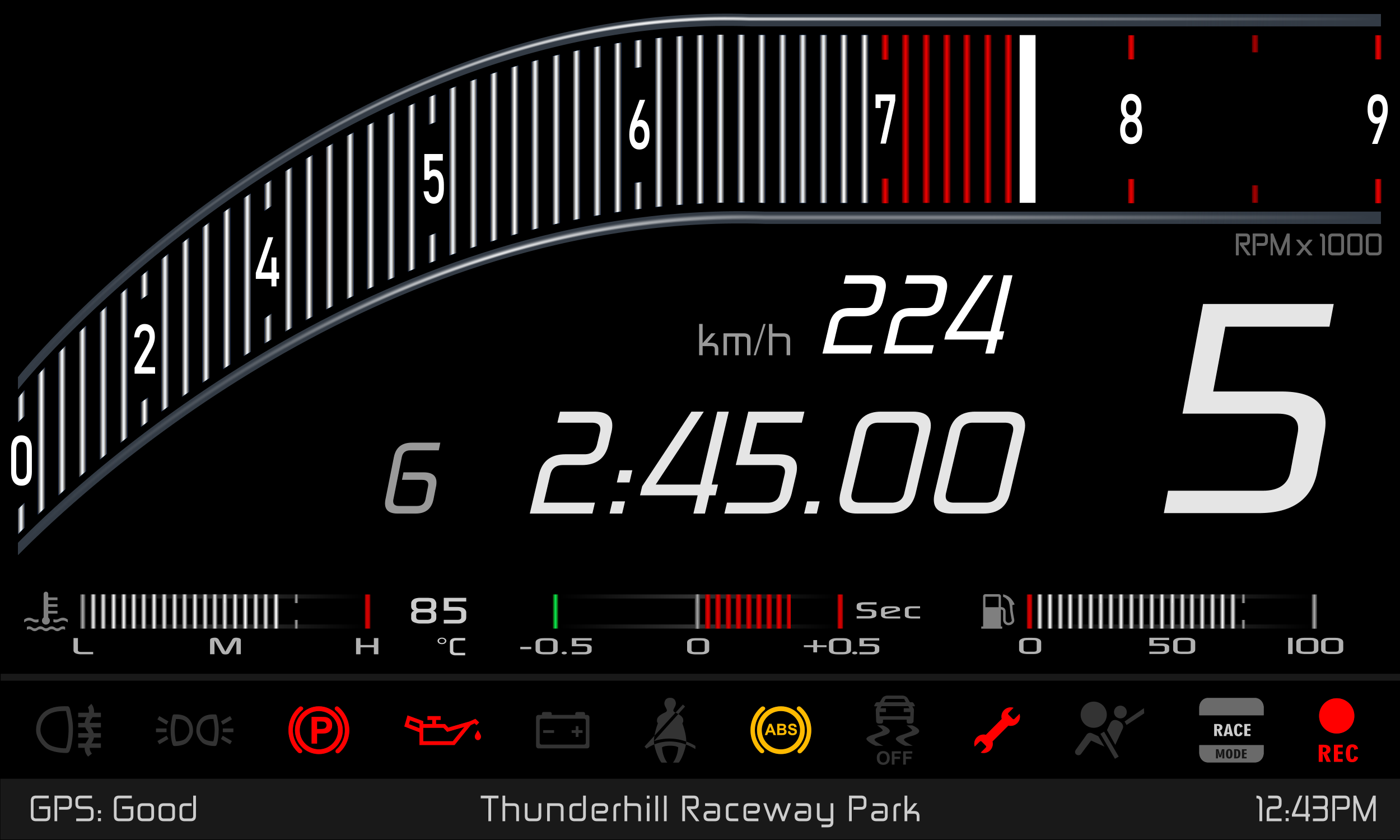

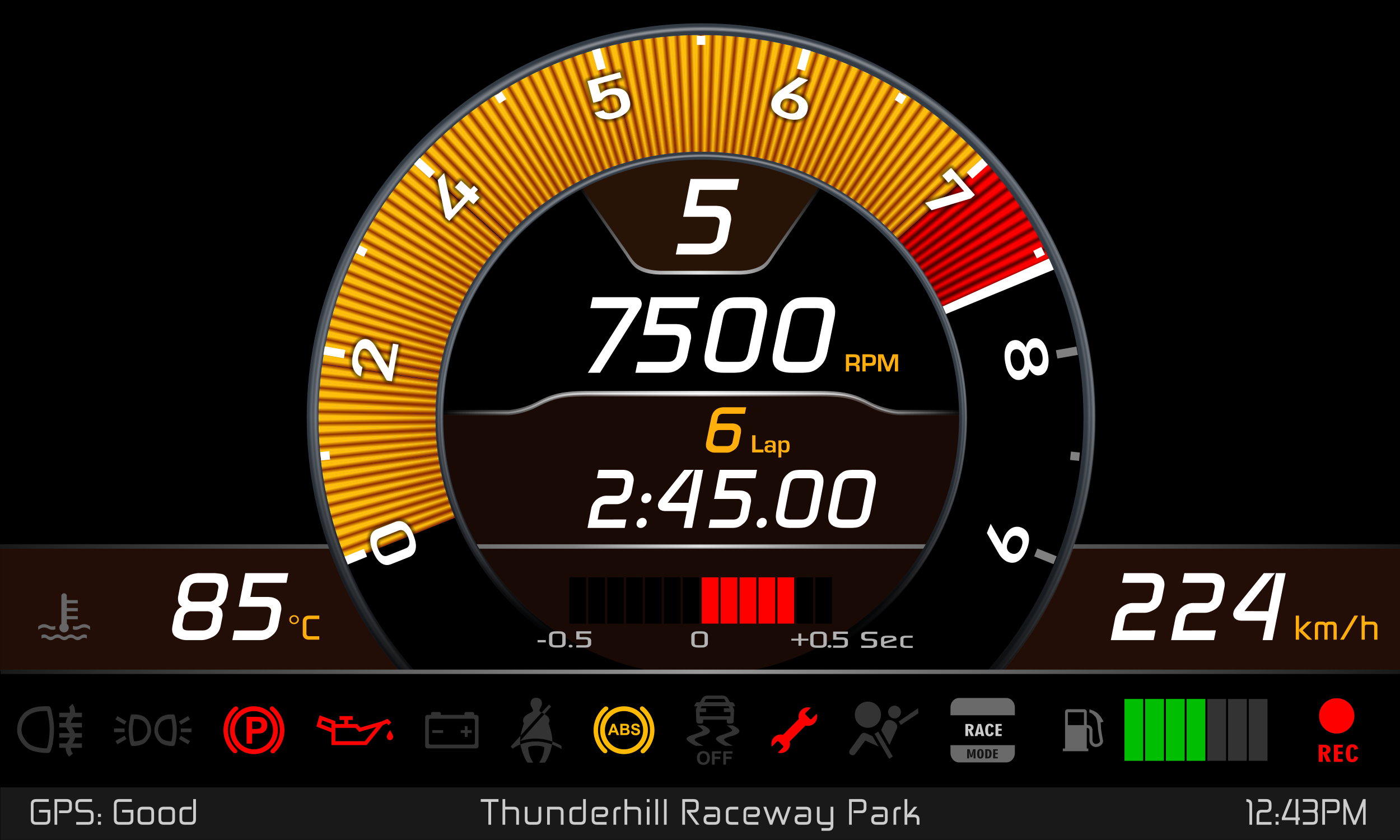

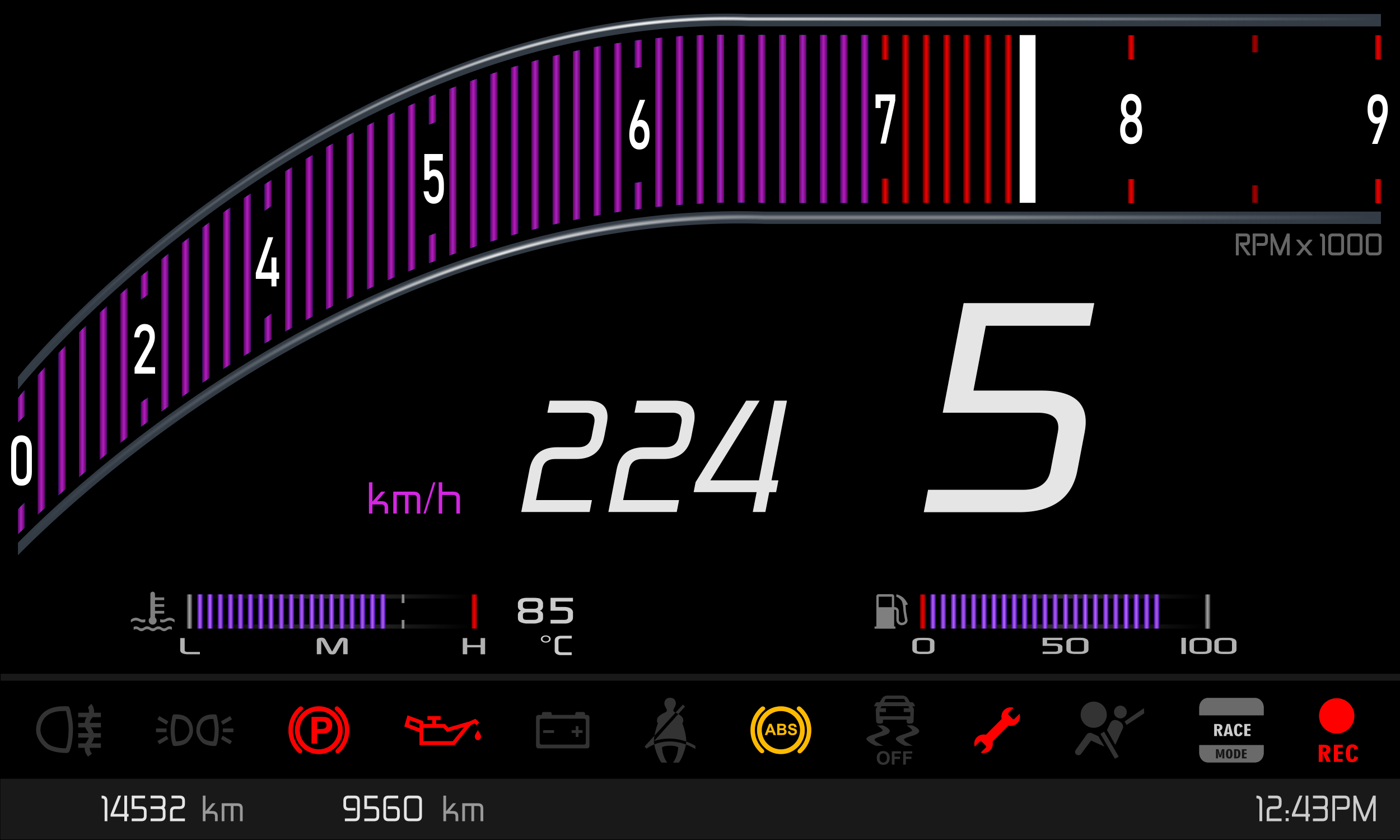

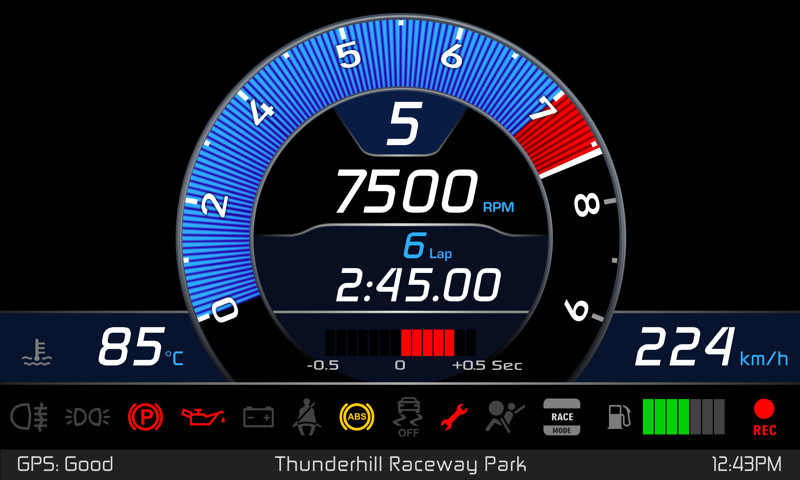

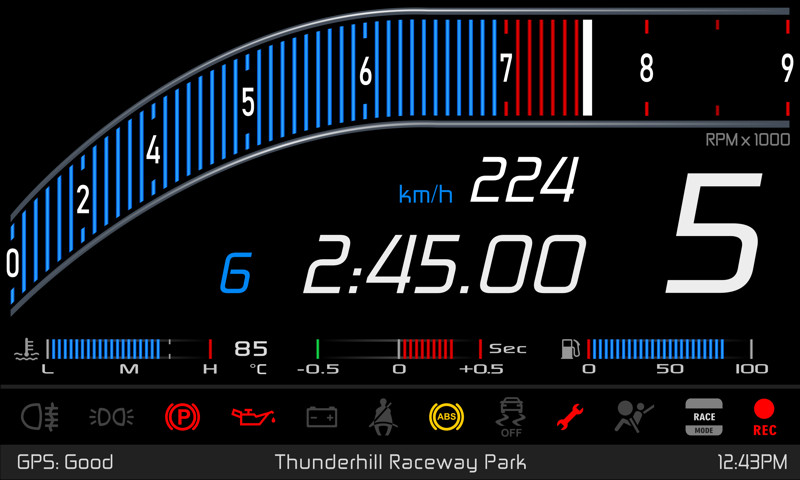

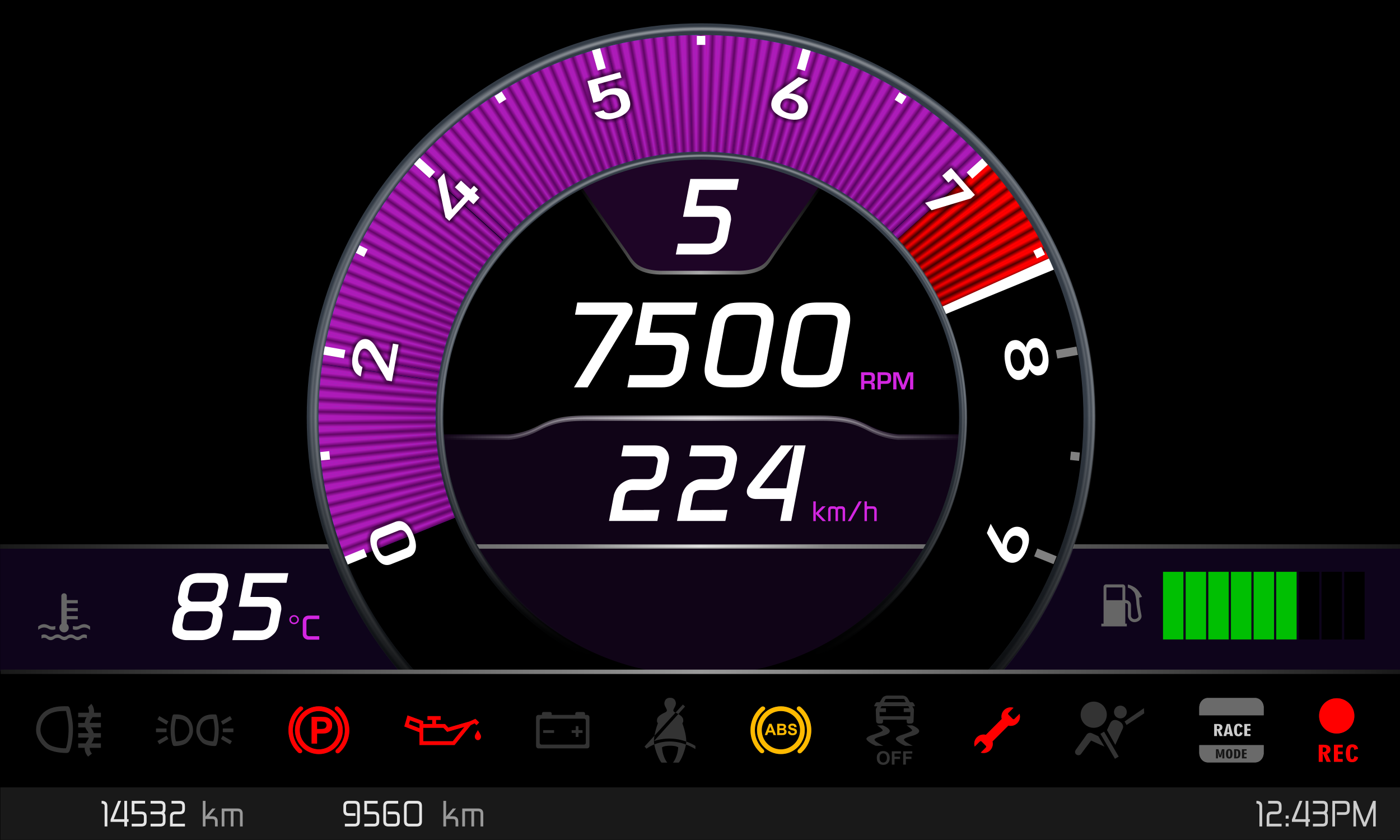

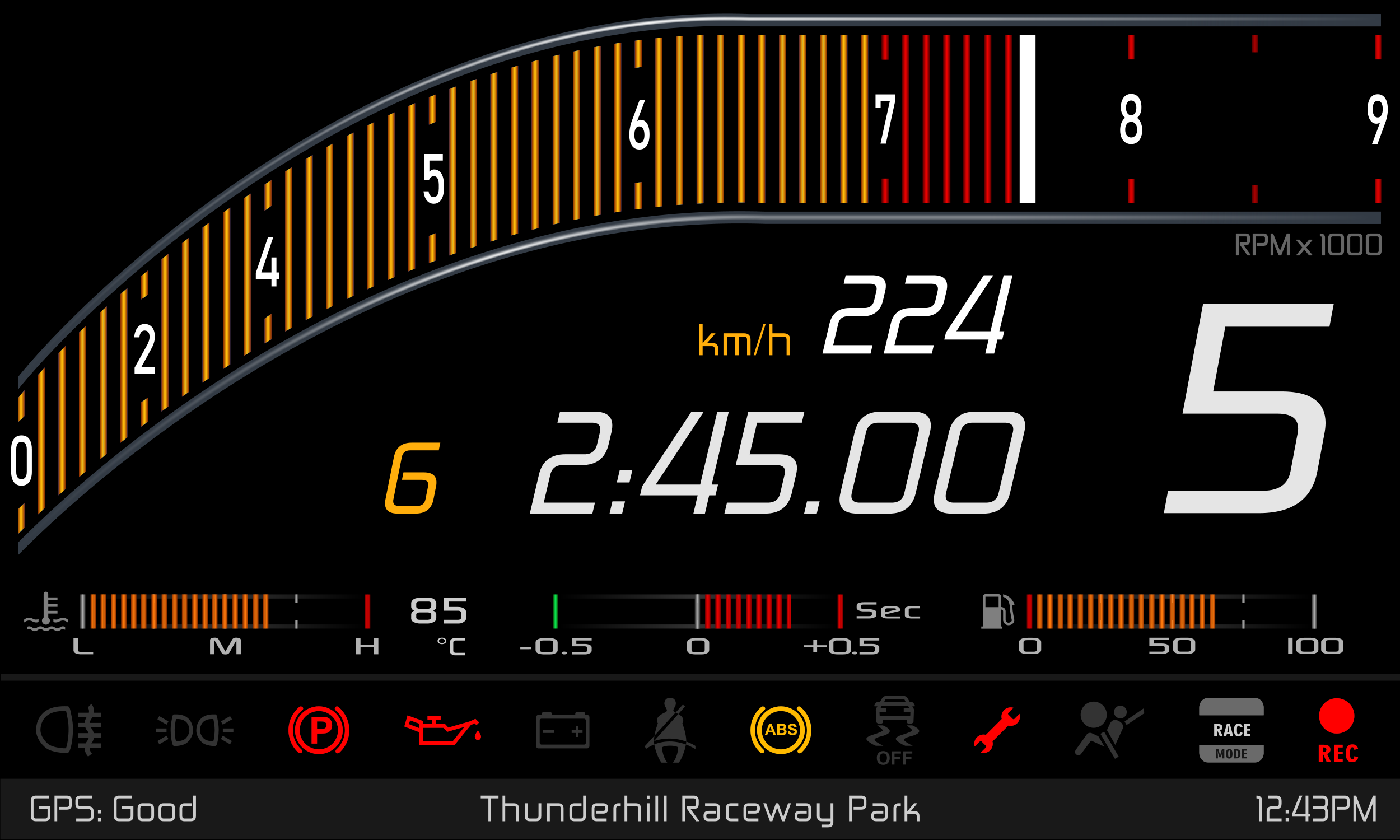

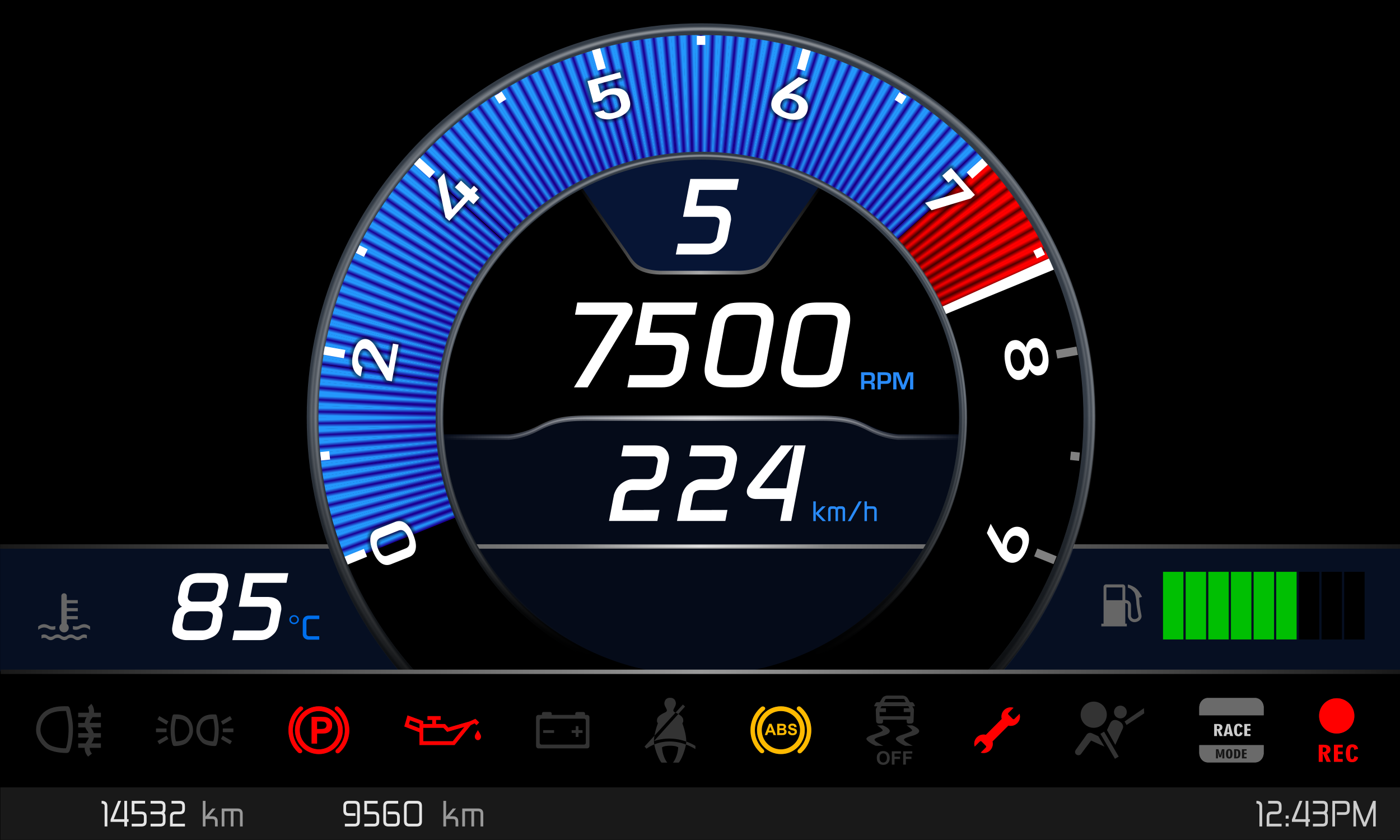

One dash, two souls
ROAD
Two themes
TRACK
ANALOG
DIGITAL
One dash, two souls
Previous
Next

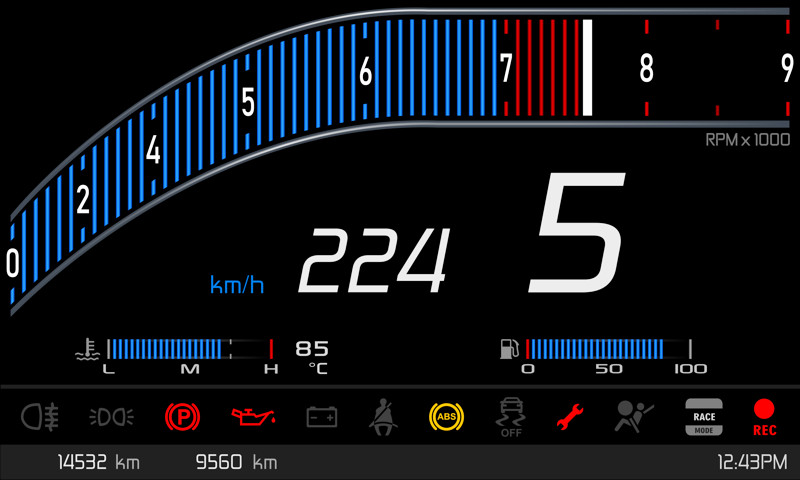

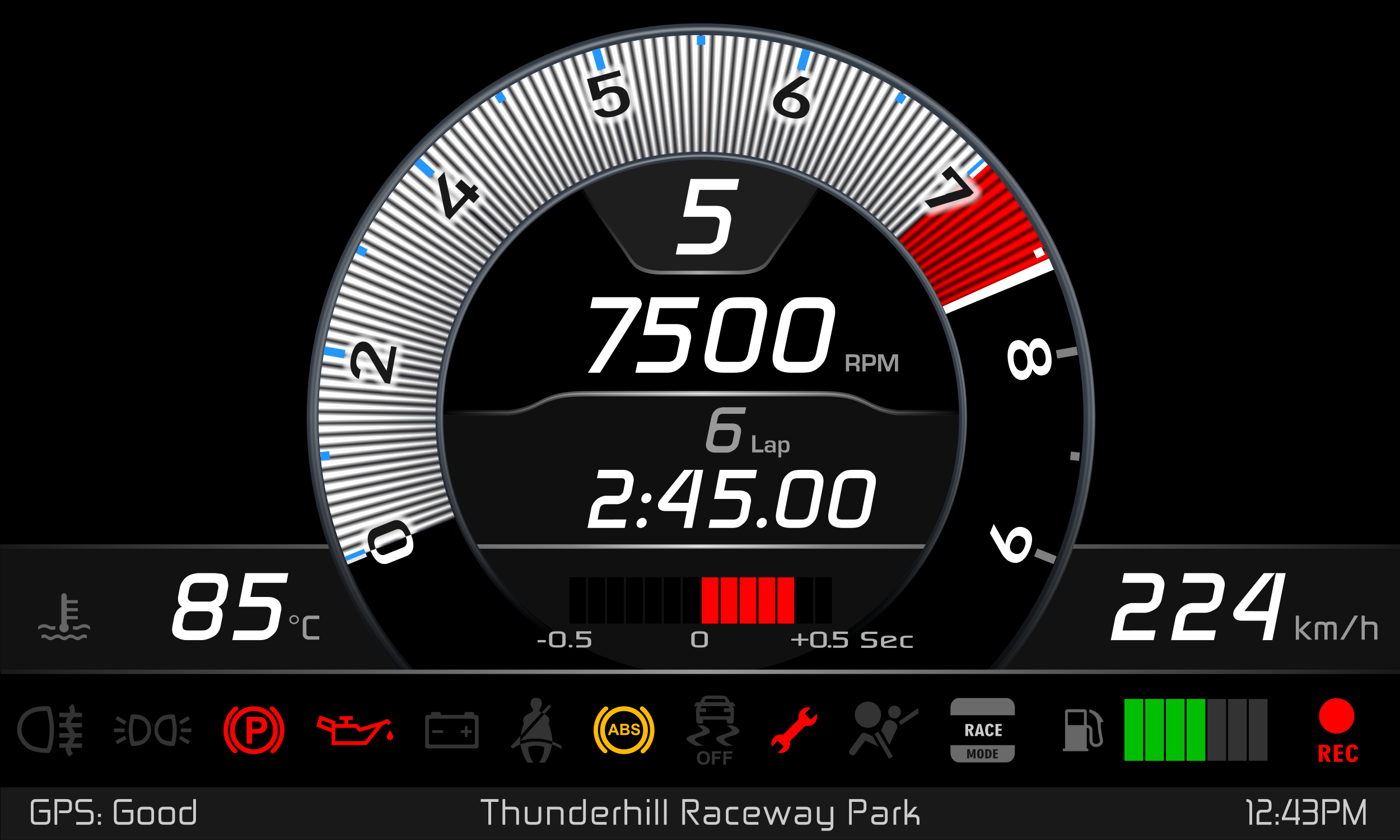

Four colors, 16 choices
Previous
Next

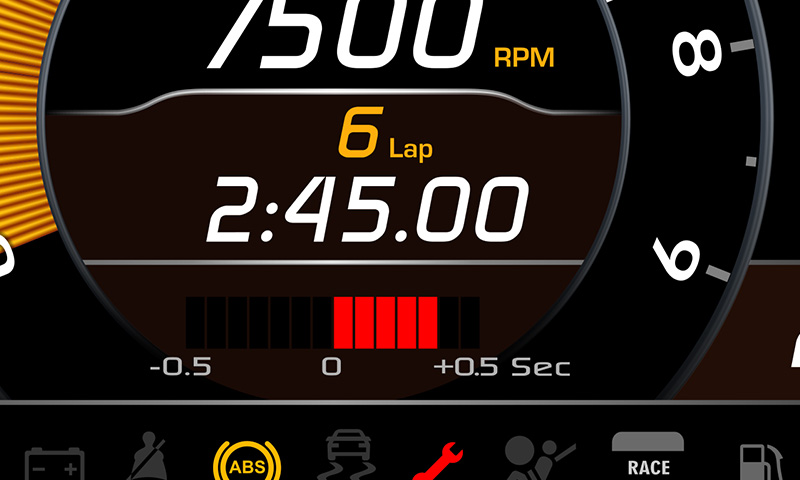

Integrated Lap Time

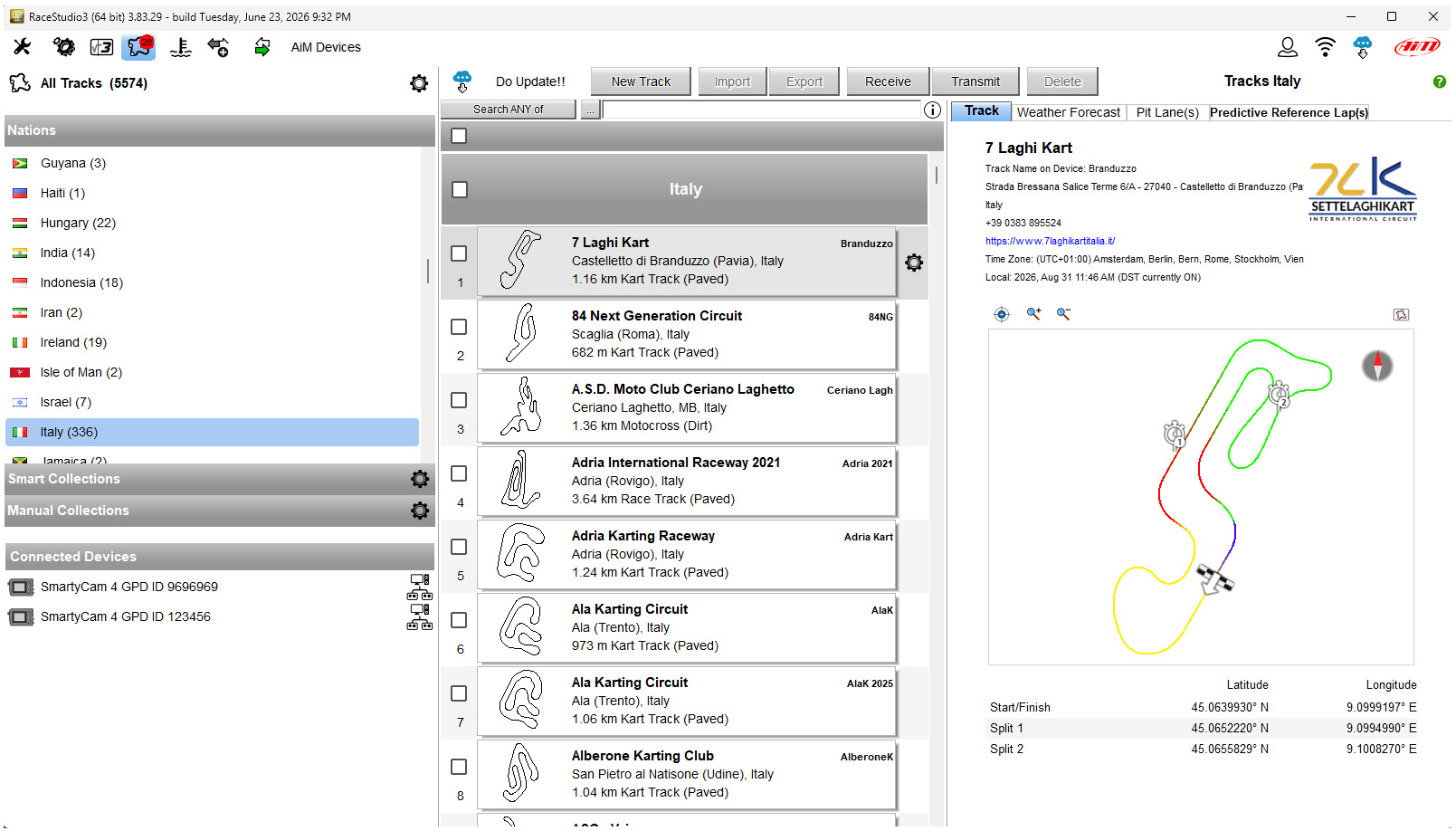

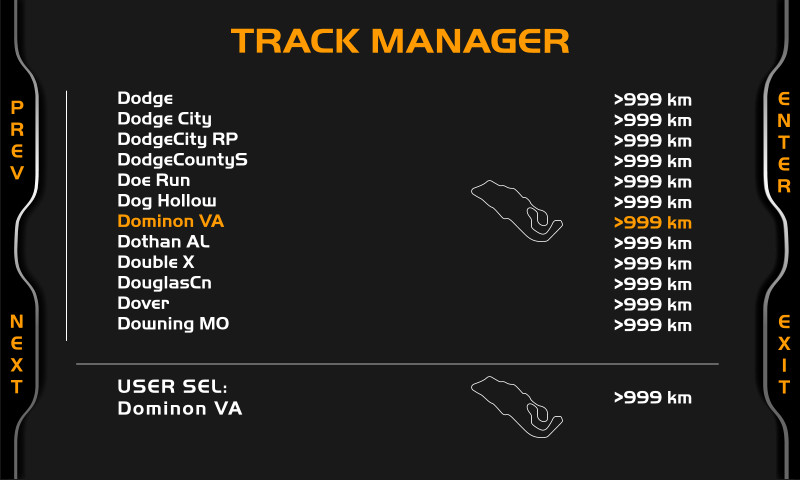

Thanks to the integrated GPS and huge track database.
On the track
...you will automatically have:
Lap Time and Predictive Lap Time
...thanks to the huge database of 5,500 tracks in the world
constantly update by our technicians.
After the test
... you may look summarized data directly on your dash.
Or you can send all recorded data to your PC through Wi-Fi for a professional analysis.
Not enough?
You may expand your MX2E capabilities connecting:
Wide band Lambda controllers with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.
They manage four analog channels up to 1 kHz each, plus two digital speed inputs.
The on-board cameras that overlays on videos the data sampled by your logger.

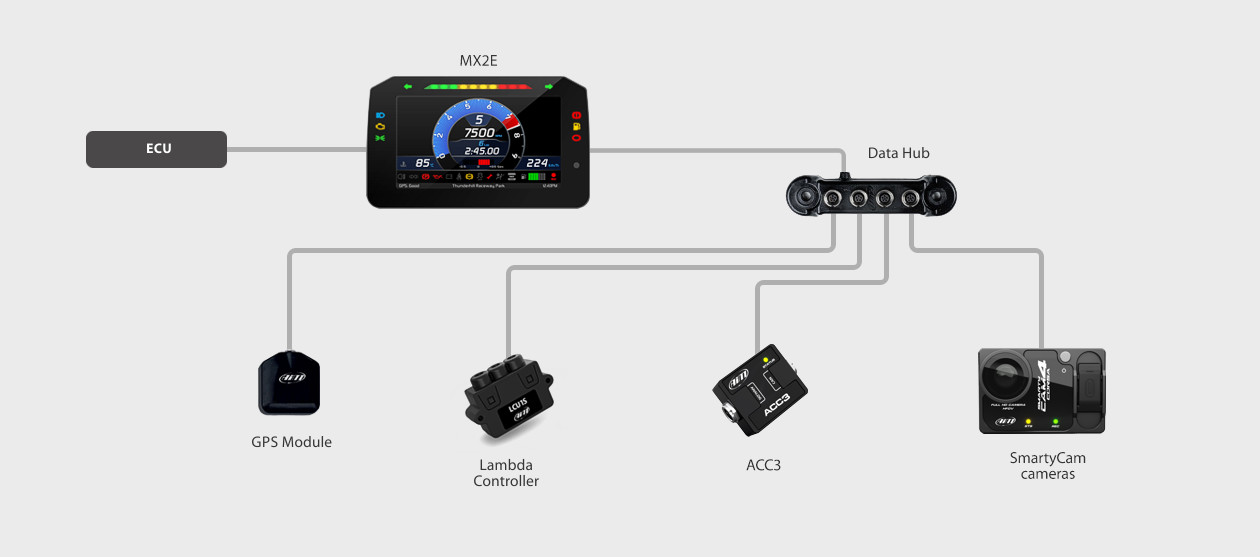

Connection Example
Optional inputs for rear camera
Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management.
- Optical Format 1/4 inch Color CMOS
- TV system NTSC
- Pixel Array 648x488
- Image area 3.63mm - 2.73mm
- Frame rate NTSC: 60 filed/sec
- Temperature -30°/+80°
Previous
Next

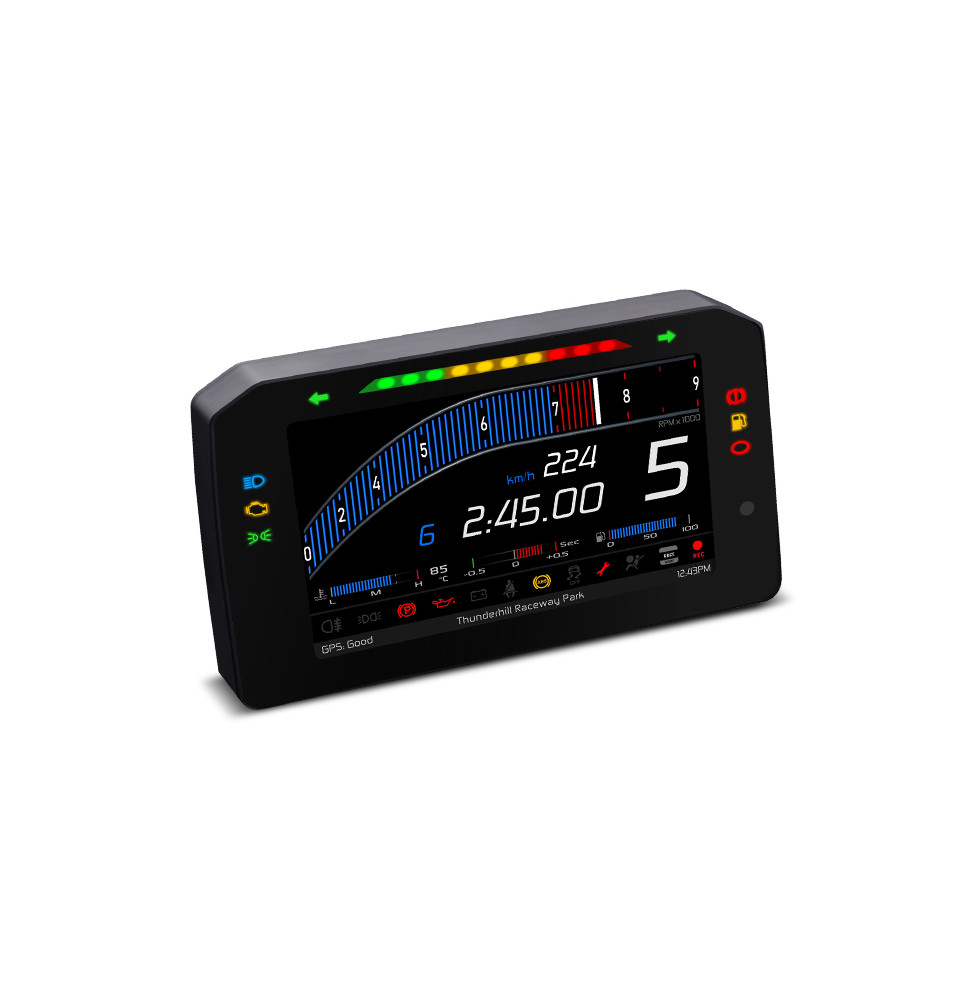

MX2E

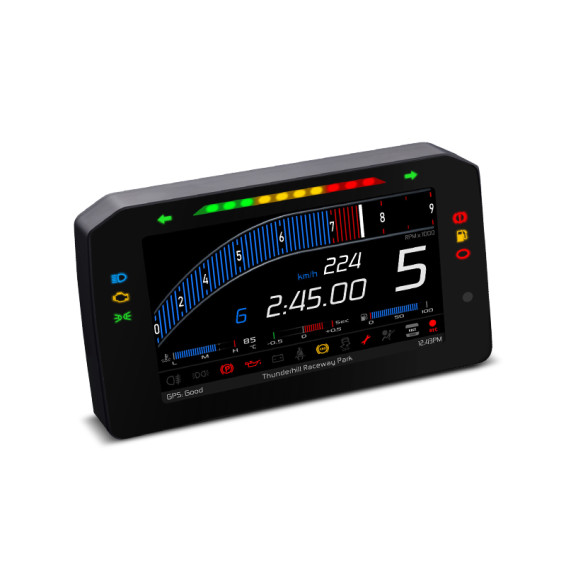

Plug & Play Dash Logger kit specifically designed for Lotus Elise/Exige 2011-2019.
6" high contrast 1,100 lumen TFT display, 6 status information LEDs, 10 shift lights LEDs, 2 turn indicators, 2 CAN connections, 802.11 Wi-Fi connection, 4 GB internal memory, anodized aluminum body, 1 Delphi 12040722 connector + 4 Binder 712 connectors, IP65.

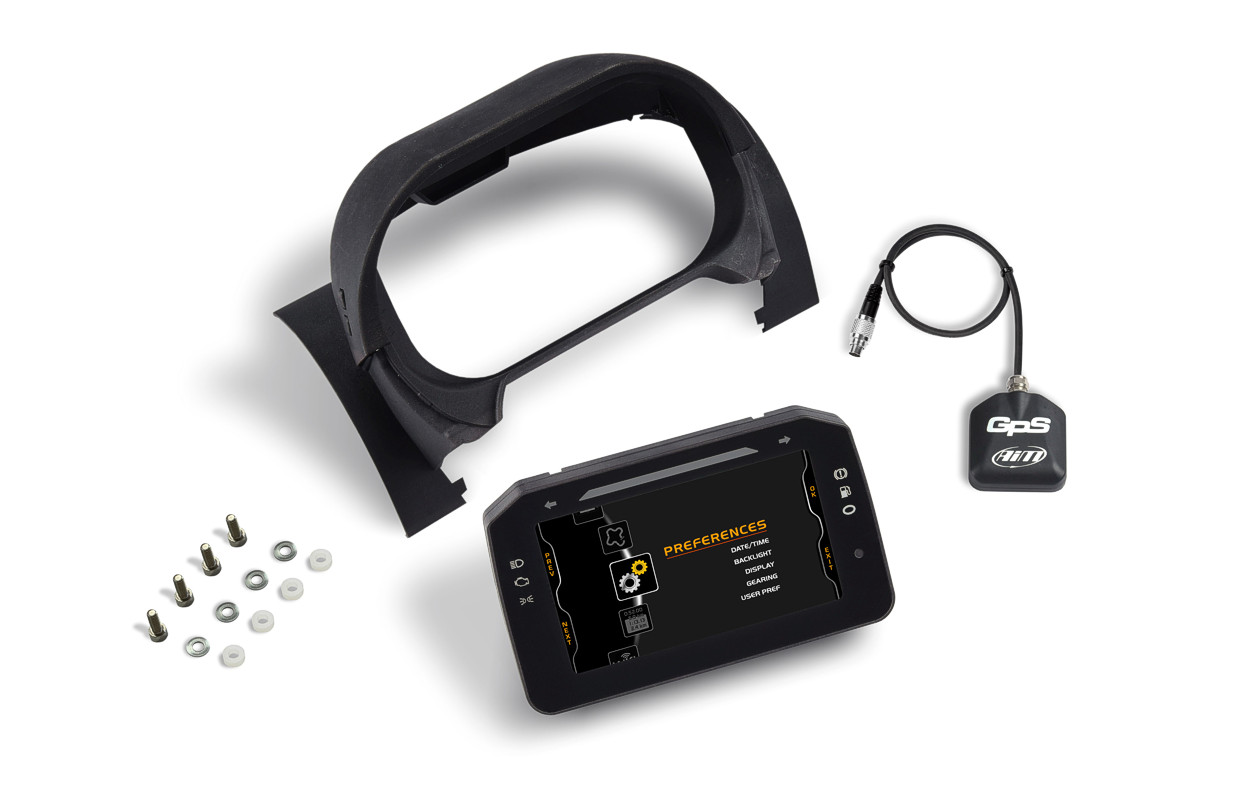

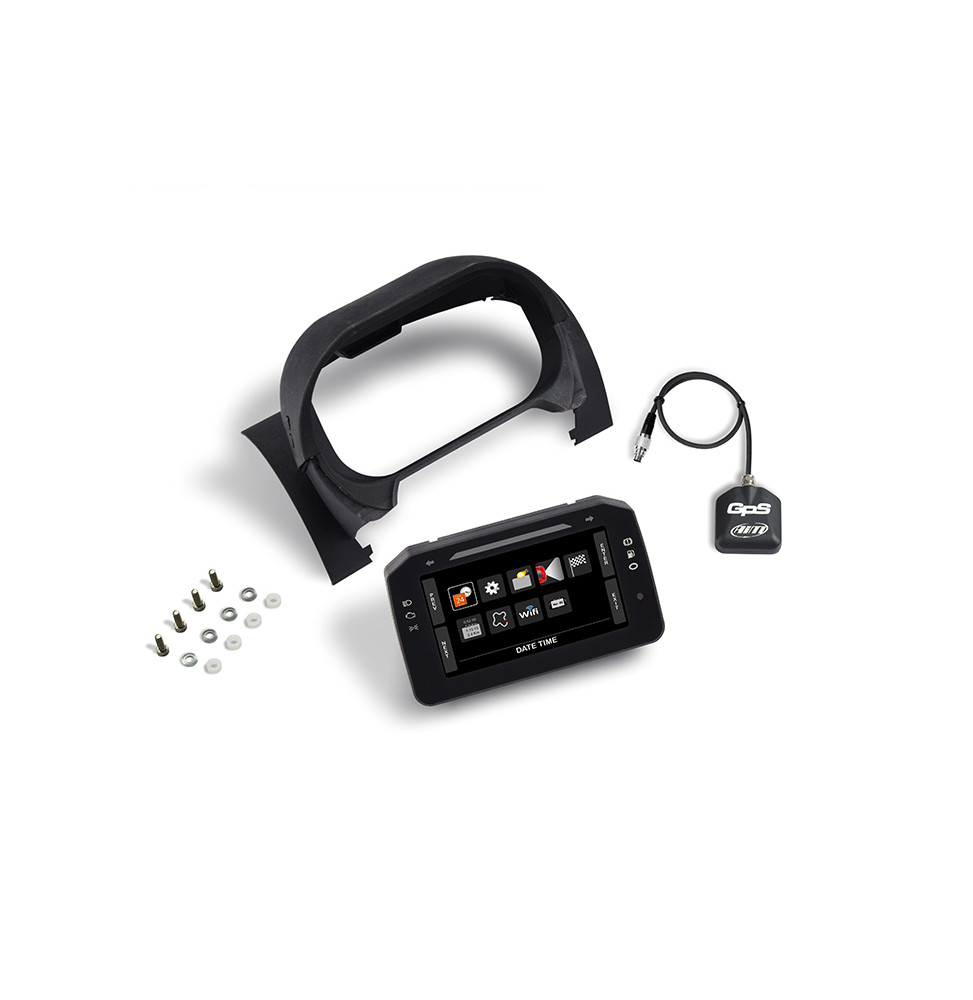

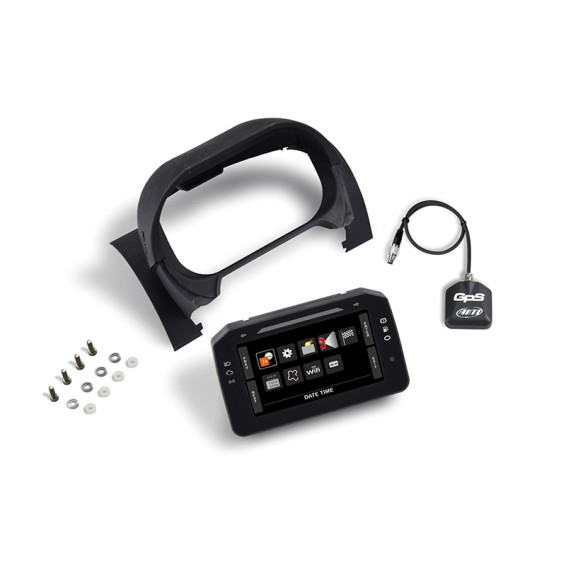

In the box:
MX2E dash logger with cluster, dedicated GPS, screws and washers.
User manual & RaceStudio 3 software freely downloadable from AiM web site.
€1,950.00
Tax excluded
€1,950.00
Tax excluded
